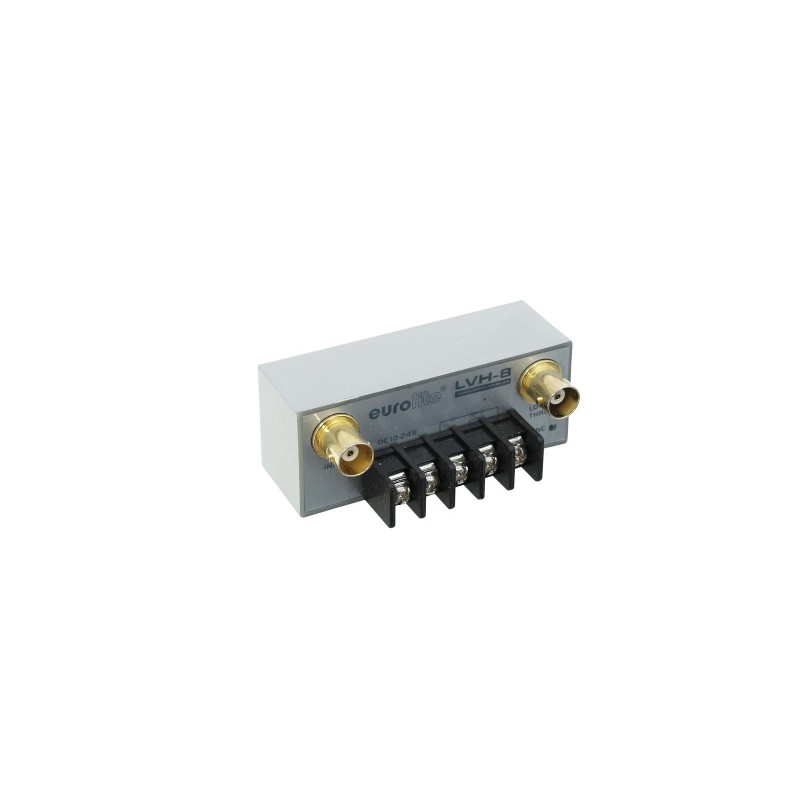

81013208 / EUROLITE LVH-8 Video controlled relay

Codice: 81013208        codice Ean: 4026397324846        MARCA:  EUROLITE

VIDEO CONTROLLED RELAYThe LVH-8 serves as a video presence detector for an audio/video system. The unit generates a control signal based on the absence or presence of valid video signals. The unit responds to NTSC and PAL signals and features a feed-through output. Power connections are made using block terminals.

Video controlled relay

• Detection of video
• NTSC and PAL compatible
• Bridging or terminated operation
• LED indicator
• Connections via BNC plug
• 12-24 V DC power supply via block terminals (PSU not included in the delivery)
• Ultra compact

Power supply:	12-24 V DC 74 mA
Dimension:	Width: 7.6 cm Depth: 4.1 cm Height: 3.1 cm
Weight:	0.07 kg
1 x video input:	0.5-1 Vpp/75 ohms BNC, ground referenced
1 x video output:	Feed-through/ BNC, ground referenced
Control output:	N/O or N/C contacts
Relay contacts:	Single-pole, double-throw
Max. switching power:	60 W, 125 VA
Max. switching voltage:	220 V AC, 250 V DC
Max. switching current:	2 A
Max. continuous switching current:	3 A
