OMNITRONIC ALT-105 Audio Link Module WAMS-05

Codice: 13106987        codice Ean: 4026397308860        MARCA:  OMNITRONIC

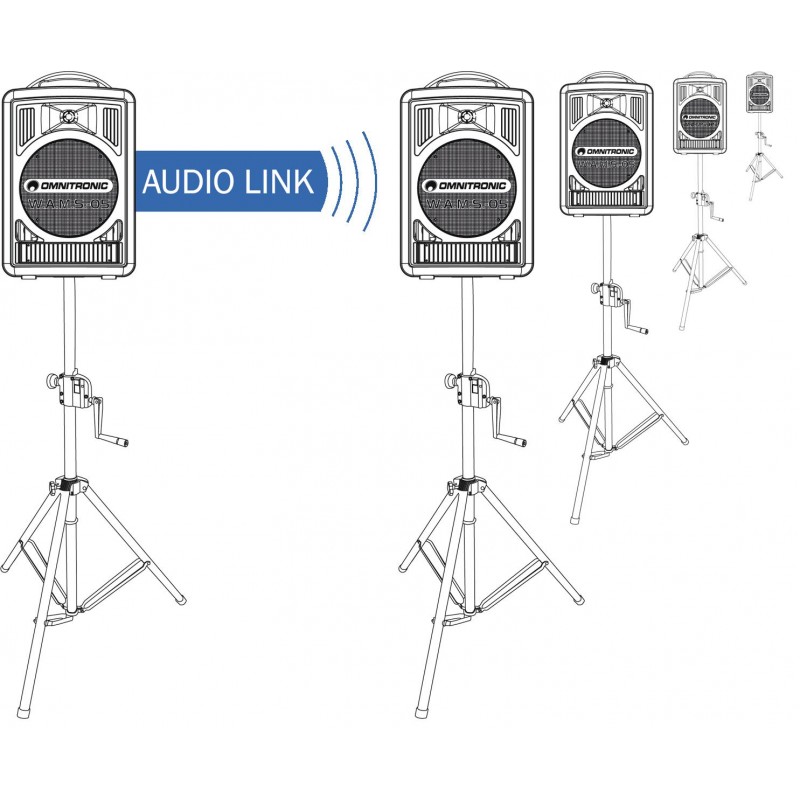

The multifrequency transmitting ALT-105 serves as a replacement part or as an extension for the PA system W.A.M.S.-05. The unit operates in the UHF range of 863.100 - 864.900 MHz. The frequency range is divided into 16 channels, which can be selected as desired. The transmitter module allows for wireless transmission of the audio signal of the speaker system to receiving units RM-105 of further W.A.M.S.-05 systems (audio link mode). The unit is tuned to the frequencies of the receiver module.

Multifrequency transmitting unit for W.A.M.S.-05

• Transmitter as UHF PLL system, suitable for W.A.M.S.-05 system
• Applicable for wireless audio transmission to receiving units of further W.A.M.S.-05 systems (audio link mode) or as a replacement
• Operation in the low-interference UHF-band (863,1-864,9 MHz) with 16 frequencies selectable
• LCD for channel and frequency
• Volume control
• LEDs for carrier and audio signals
• License-free and approved in the EU
• Use a operating range up to 30m

Type:	Audio transmission
Power supply:	12 V DC 150 mA
Frequency range:	70 - 16000 Hz
Input sensitivity:	130 mV
Frequency band:	UHF 863 - 865 MHz; UHF
RF power output:	10 mW
Range:	30 m
Diversity:	True diversity
Dimension:	Width: 8.8 cm Depth: 4.3 cm Height: 11 cm
Weight:	0.23 kg
