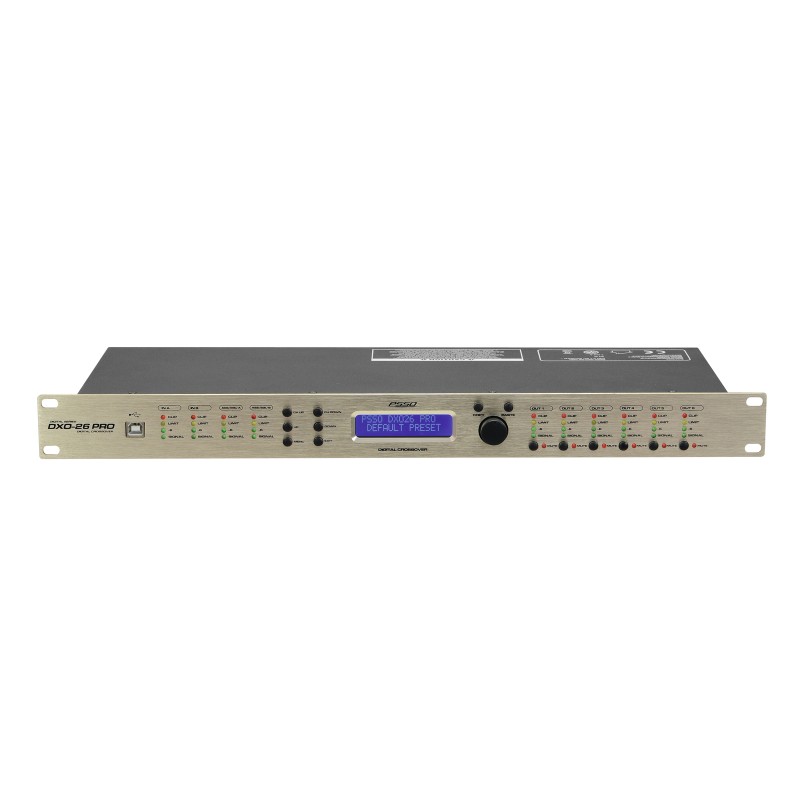

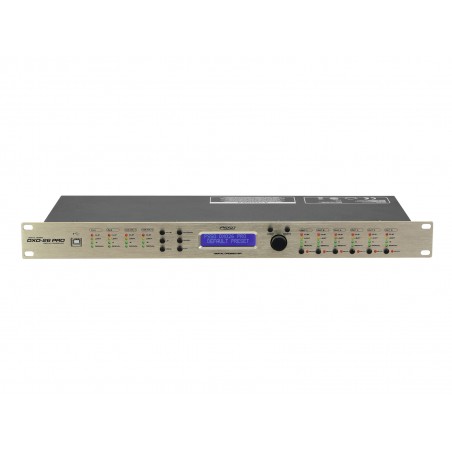

PSSO DXO-26 PRO Digital Controller
Audio - Signalprozessoren - Frequenzweichen
Peso: 2.65
Codice: 10356362 codice Ean: 4026397682748 MARCA: PSSO
Digital speaker management system with real-time network communication, 2 inputs and 6 outputs
- Digital network speaker management system with 64-bit processing
- Premium components ensure excellent sound-features
- Flexible routing configurations for all standard mono and stereo output operating modes
- 2 analog inputs and 1digital AES/EBU interface (XLR)
- 6 analog outputs (XLR)
- 10-band parametric EQ per input and output
- Parametric filters can be set as Bell, High Shelf, Low Shelf, Notch, Allpass
- Active crossover with Bessel, Butterworth and Linkwitz-Riley filter with slopes up to 24 dB/octave
- The intelligent software for PC and Mac allows convenient control with a computer
- Full configuration and real-time network communication via the built-in Ethernet interface
- Presets are easy to store, transfer and manage
- Up to 80 user presets storable in the device via software
- Control of all functions also possible via the controls at the front panel
- Alphanumeric LCD screen with 2 lines of 16 characters each
- Input sensitivity digitally adjustable
- Inputs and outputs with 4-digit VU meter
- Mute switch with LED indicator per output
- Up to 2000 ms signal delay adjustable for the inputs and outputs
- Output limiter with adjustable limits and automatic attack and release settings as overload protection for your amplifying system
- Switchable phase (180°)
- Lock function for protecting the program settings
- Rack installation, 1 U
- Windows XP, Vista, 7, 8, 10 and Mac OS X 10.5.8 and better
- Control your speaker systems more flexible than ever with the DXO Control app
- DXO Control for iPad supports all functions of the PC software and is available for free from the app store
- Digital signal processor
- The device can be connected via USB to the PC in connection with DXO Software; The device can be connected via RJ45 (F) mounting version to the PC in connection with DXO Software
The firmware can be updated via the PC connection - (19") 48.3 cm rack installation 1 U
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 10.00 W |
| Frequency range: | 10 - 40000 Hz |
| THD: | <0.005 % at 1 kHz |
| Network connection: | Protocol: ethernet TCP/IP via 1x RJ45 (F) mounting version |
| DSP: | Digital signal processor |
| Power connection: | Mains input IEC connector (M) mounting version Power supply cord with safety plug (provided) |
| Crossover frequency: | 20-20000 Hz |
| Impedance: | Input 10 kOhm Input XLR (AES/EBU): 110 Ohm Output 50 Ohm |
| Gain: | Input: -50 dB to +12 dB Output: -50 dB to +12 dB |
| Filter: | Linkwitz-Riley; Butterworth; Bessel; 6db/oct; 12db/oct; 18db/oct; 24db/oct |
| Delay: | 0 - 2000 ms |
| Dynamic range: | Input: 118 dB Output: 114 dB |
| Sample rate: | 65 kHz |
| Connections: | Input: 2 x line via 3-pin XLR Output: 6 x line via 3-pin XLR |
| Max. level: | Input: +22 dBu Output: +12 dBu |
| USB port: | Typ B |
| PC connect: | DXO Software via USB; DXO Software via RJ45 (F) mounting version, firmware can be updated |
| Housing design: | (19") 48.3 cm rack installation 1 U |
| Dimension: | Width: 48.3 cm Depth: 22.3 cm Height: 4.45 cm |
| Weight: | 2.30 kg |
