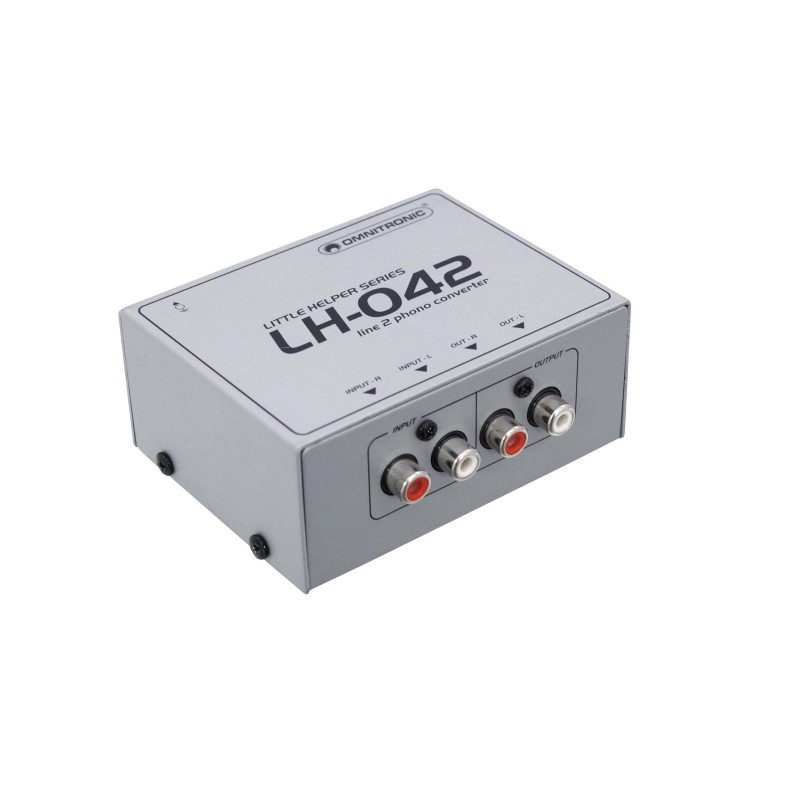

OMNITRONIC LH-042 Line/Phono Converter

Codice: 10355042        codice Ean: 4026397341218        MARCA:  OMNITRONIC

The LH-042 converts a line signal to a phono signal. What this is good for? Just imagine the following situation. Your working as a DJ and you have recently bought a new line source (a CD player, MP3 player or the like). Now you would like to connect it to your mixer, but the line inputs are already used. What to do? At this point it's time for our LH-042. Just plug it into a phono input and connect your additional line source to the converter: you've got one more line slot for your mixer.

Passive stereo line/phono converter

• Converts a line signal to a phono signal
• Connect your line level sources, such as CD, MP3, DVD, or PC, to the magnetic phono input of a mixer, amplifier or recording unit
• Ground terminal for avoiding hum
• No power supply via power unit or battery necessary

Frequency range:	10 - 20000 Hz
S/N ratio:	>100 dB
Impedance:	Input 10 kOhm Output 470 Ohm
Gain:	-46 dB
Frequency characteristic:	Passive inverse RIAA
Phono input compatibility:	Moving magnet (MM), moving coil (MC)
Connections:	Input: 1 x line via stereo RCA Output: 1 x phono via stereo RCA
Material:	Metal
Color:	Silver
Dimension:	Width: 9.8 cm Depth: 9.2 cm Height: 4 cm
Weight:	0.22 kg

Audio - Audiozubehör - Little Helper
Peso: 0.4
