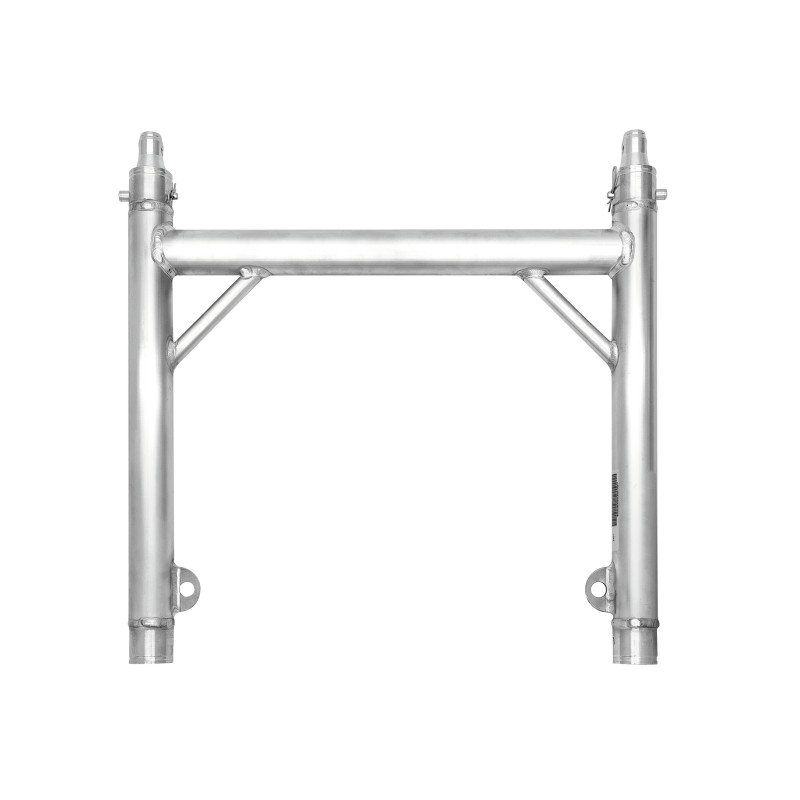

ALUTRUSS U-Frame Base Part

Single tubes with quick-lock

• The number of U-frames that can be used is the sum of the net weights of the U-frames plus any added loads and must not exceed the carrying capacity of the U-frame top section (60320351)
• Each frame must be connected at two points to the frame above it with the enclosed connectors
• A frame must be secured by the two eyelets welded to the side tubes
• The drop distance should be less than 10 cm
• Use sufficiently sized steel cables or chains as securing means
• Load capacity of a U-frame: point load 100 kg
• Strong EN-AW 6082 alloy for high loads
• Trusspipe: 50 mm
• Made in Europe
