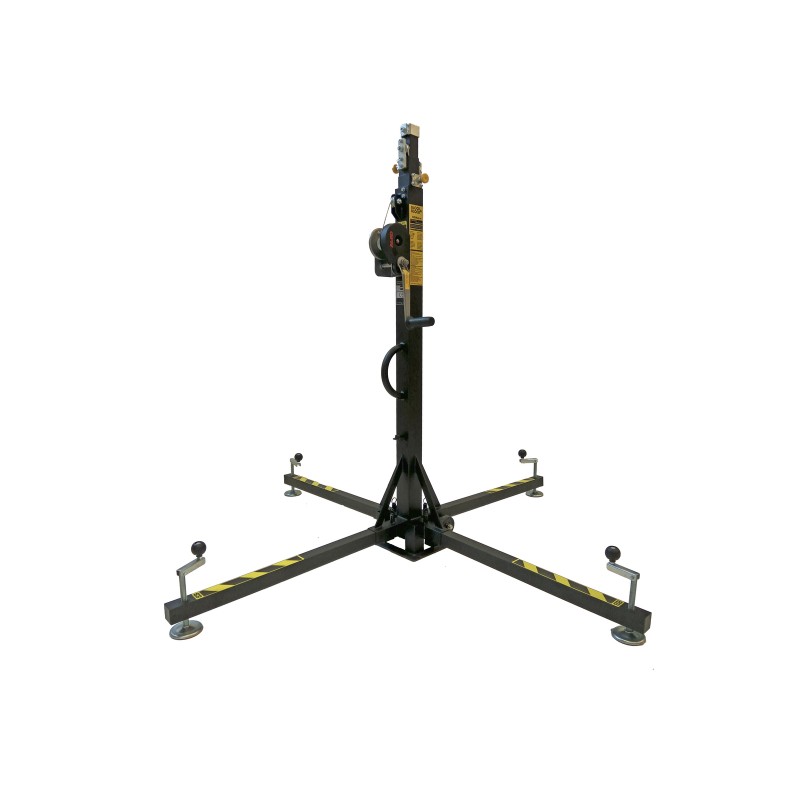

BLOCK AND BLOCK SIGMA-40 Truss lifter 150kg 4.7m

Codice: 59000411 codice Ean: 4026397662856 MARCA: BLOCK AND BLOCK

High-quality ground support for weights up to 150 kg, made in EU

Four-part telescopic ground support
4 mm steel rope
Safety bolts to lock the different sections at different heights
Locking bolts in the base area to lock the booms
Booms with adjustable spindle and steel plate with non-slip rubber base
Corrosion protection through epoxy coating
Water level to ensure a vertical position
Earthing connection
Transport rolls to move the lift when retracted
AL-KO 351 PLUS winch: Maximum load 350 kg with automatic holding brake. CE declaration of conformity in compliance with the harmonized standards DIN EN 13157, EN 12100 I and II, EC Machinery Directive 2006/42/CE
Galvanized steel ropes 6x19+1, manufactured in compliance with the standard 13414-1:2004, tensile strength 1770N/mm2
Material: Carbon steel S-275-J0H, manufactured in compliance with the standards EN10219 and EN10305.5
Made in Europe

Maximum carrying capacity:	150 kg
Minimum load:	25 kg
Nominal tensile strenght of rope:	1770 N/mm²
Height:	Maximum: 4.7 m Minimum: 1.49 m
Attachment system:	Ø 35mm
Steel rope:	Ø 4 mm
Type (general stands):	Truss lifter
Material:	Steel (powder-coated)
Additional dimensions:	Base area: Ø 177 cm
Weight:	35.25 kg
