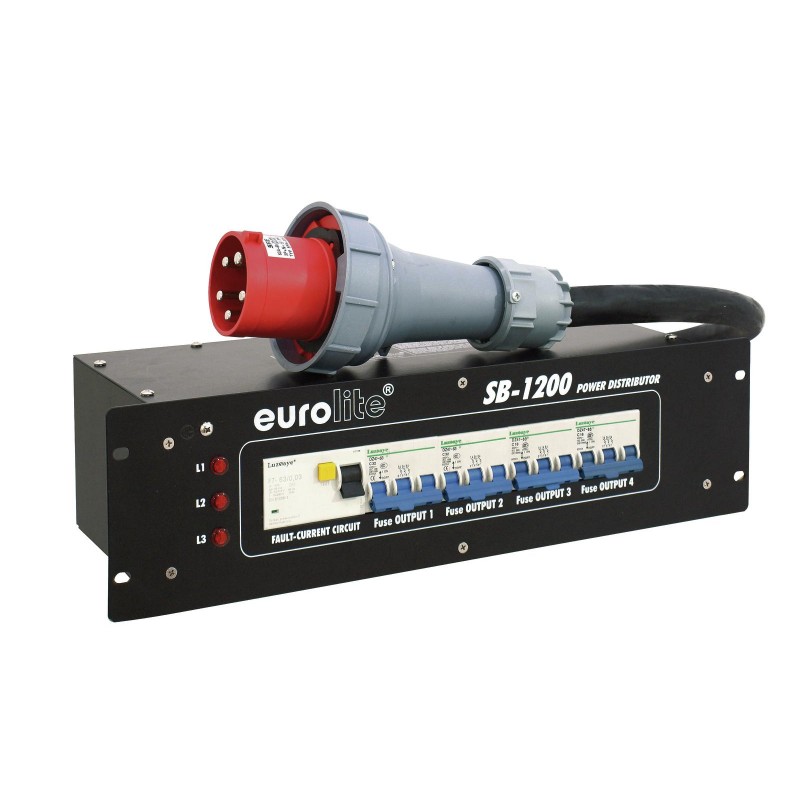

EUROLITE SB-1200 Power Distributor 63A

Codice: 30248380 codice Ean: 4026397288049 MARCA: EUROLITE

Practical 63 A distributor in 483 mm housing (19")

Specially designed for larger distribution needs
3 U necessary for installation
63 A three-phase current input via 1 meter long 5 x 16 mm² power cable and plug
The entire distributor is secured via 30 mA Residual Current Device (RCD)
2 x 32 A three-phase current outputs via mounted sockets, each individually secured on the rearpanel by a 3-pole 32 A circuit breaker
2 x 16 A three-phase current outputs via mounted sockets, each individually secured on the rearpanel by a 3-pole 16 A circuit breaker
Control lamps indicate each phase
With earthing screw in order to ground a rigg if necessary
(19") 48.3 cm rack installation 3 U

Power supply:	380-400V AC, 50Hz
Power output:	2 x CEE 32A 5-pol (f) recessed mounting fused 2 x CEE 16A 5-pol (f) recessed mounting fused
Protection:	1 x fault-current circuit breaker (FI) 63A/0.03A 4-pol 2 x circuit breaker C 16A 3-pol 2 x circuit breaker C 32A 3-pol
Power connection:	Fixed CEE 63A 5-pin (M)
Housing design:	(19") 48.3 cm rack installation 3 U
Dimension:	Width: 48.3 cm Depth: 31 cm Height: 13.35 cm
Weight:	8.00 kg
