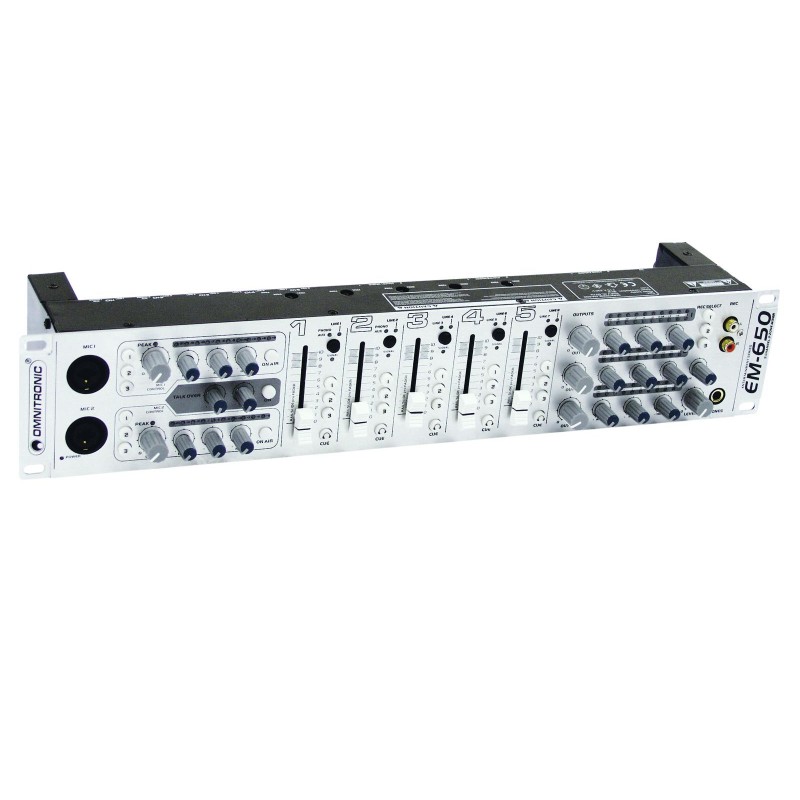

OMNITRONIC EM-650 Entertainment Mixer

Codice: 10007110        codice Ean: 4026397355826        MARCA:  OMNITRONIC

OMNITRONIC Entertainment Mixer SeriesThe modern entertainment industry, especially hotels, bars or theme parks, requires very high standards in quality and features for sound devices.The OMNITRONIC EM-series is especially designed for this industry and offers the highest flexibility and quality in very small mixer casings.The EM-series offers a variety of connection possibilities and also convinces by an ergonomic design and easy use.The special housing design and the state-of-the-art construction are further reasons which make the EM-series the first choice for installers.

Multifunctional 5+2-channel mixer with 3 zones, Silver

• 3 zones with routing facility of all input channels as desired
• 5 input channels with recessed gain controls on the rear panel, signal LED and super smooth dual-rail channel faders
• 2 microphone channels with level control, LED level meter, 3-way equalizer and talkover button
• Talkover level and response time adjustable
• Pre-fader listening (CUE) to the stereo input channels via adjustable headphone output
• Color illuminated rotary controls and rubber buttons
• Zone outputs with level control, 3-way equalizer and 10-digit stereo LED level meter
• 2 record outputs (independent of the master channels) with routing facility of all zone outputs as desired
• Inputs: 8 x line (stereo RCA), 2 x line/phono (stereo RCA), switchable; 2 x microphone (XLR/6.3 mm jack) and headphones (6.3 mm jack)
• Outputs: 3 x master (optionally 3-pin XLR or stereo RCA) and 2 x record (stereo RCA)
• Operation via supplied power unit
• Rack installation, 2 U
• Ideal for restaurants, bars, theme parks, hotels and all applications where microphones need to be mixed with music (e.g. karaoke)
• (19") 48.3 cm rack installation 2 U

Power supply:	230 V AC, 50 Hz 15 V AC
Power consumption:	35.00 W
Protection class:	Class III
Frequency range:	20 - 20000 Hz
S/N ratio:	>65 dB
THD:	<0.03 % at 1 kHz
Power connection:	Mains input 3-pin screw plug connector (M) mounting version Power supply cord with Euro plug (provided)
Housing color:	Silver
Control elements:	Power switch, regular talk over, source selector
Status LED:	Signal, chanal level meter, master level meter, peak, chanal source; CUE, Talk over, ON AIR, Routing
Connections:	Input: 2 x line/phono via stereo RCA Input: 8 x line via stereo RCA Input: 2 x Microphone via 3-pin XLR/6.35mm jack (F) combination socket (mounting version) Output: 6 x master via 3-pin XLR Output: 3 x master via stereo RCA Output: 2 x rec. via stereo RCA Output: 1 x headphones via 6.3 mm jack socket (stereo) mounting version
Chanals:	Input chanel: 2 x stereo with line-phono switch via RCA, channel control via fader, 3-band tone control EQ 100Hz/1kHz/10kHz, gain control, Routing master bus switch, CUE switch, Input chanel: 3 x stereo with Line-line switch via RCA, channel control via fader, 3-band tone control EQ 100Hz/1kHz/10kHz, gain control, Routing master bus switch, CUE switch, Microphon chanal: 2 x mono via 3-pin XLR/6.35mm jack (F) combination socket (mounting version), channel control via Rotary knob, Routing master bus switch, ON AIR switch, Master output: 3 x stereo via XLR or RCA, channel control via Rotary knob, source selector, Rec. output: 1 x stereo via RCA, channel control via Rotary knob, Cue-mix-function, Headphones output: 1 x stereo via Plug 6,3mm/3,5mm (Jack), channel control via Rotary knob
Housing design:	(19") 48.3 cm rack installation 2 U
Dimension:	Width: 48.3 cm Depth: 11.7 cm Height: 8.9 cm
Weight:	4 kg

Audio - Audiomixer - Rack-Mixer
Peso: 4.35
