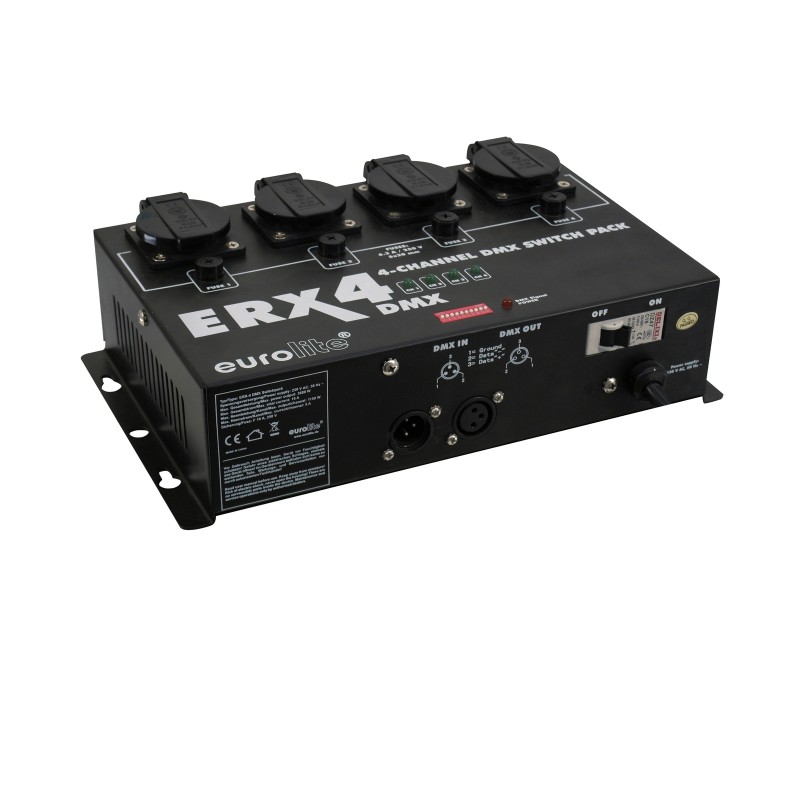

EUROLITE ERX-4 DMX Switch Pack

Codice: 70064210 codice Ean: 4026397521788 MARCA: EUROLITE

4-channel switch pack, up to 5 A load per channel, control with relay

Relay allows for controlling luminaires with electronic transformers (e.g. LED effects)
4 controllable channels
LED indicator per channel
5 A load per channel
Maximum current 16 A
Outputs via 4 safety sockets
DMX512 input and output
DMX starting address adjustable via DIP switches
For truss installation and wall installation
Can be operated in 4 CH mode
Controlling by Stand-alone; DMX

Power supply:	230 V AC, 50 Hz
Output power:	Max. 3680 W Max. 1150 W per channal
Output current:	Max. 16 A
Power output:	4 x Safety contact (F), hinged lid mounting version
DMX channels:	4
DMX input:	1 x 3-pin XLR (M) mounting version
DMX output:	1 x 3-pin XLR (F) mounting version
Power connection:	Fixed Power supply cord with safety plug
Control:	Stand-alone; DMX
Control channels:	4
Color:	Black
Dimension:	Width: 30 cm Depth: 19 cm Height: 8.5 cm
Weight:	2.51 kg
