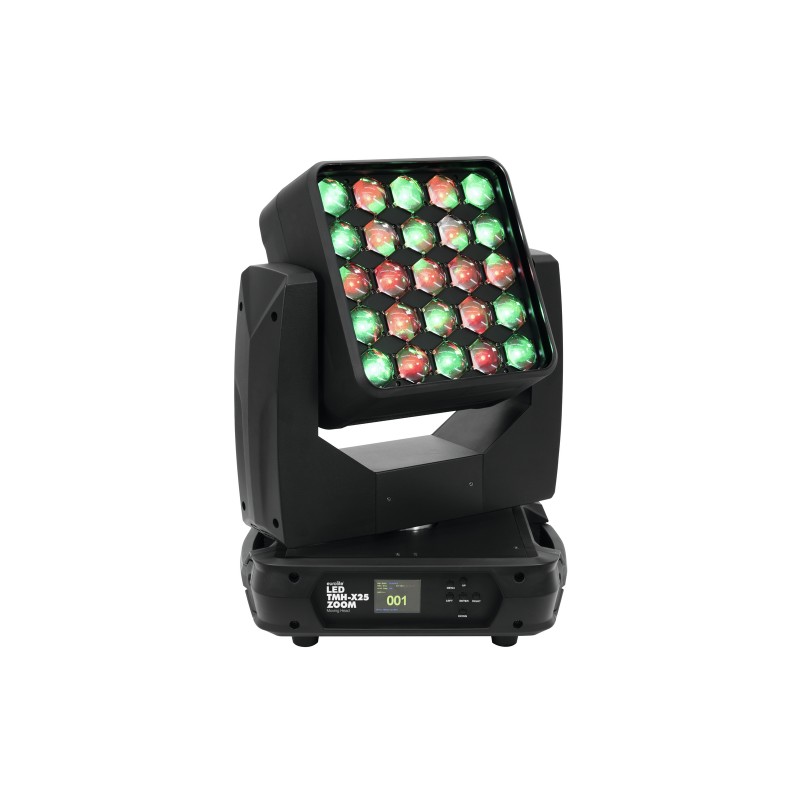

EUROLITE LED TMH-X25 Zoom Moving-Head
1.565,99 €
Tasse escluse
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
EUROLITE LED TMH-X25 Zoom Moving-Head
Licht - Moving-Lights - Moving-Head-Washer
Peso: 23.0
Codice: 51785910 codice Ean: 4026397597998 MARCA: EUROLITE
5x5 Matrix Panel, bright 12 W RGBW LEDs, large zoom
- Quick and easy control via Art-Net
- Infinity function for unlimited PAN and TILT movement
- Each LED can be controlled individually
- Motorized zoom with 7.5-69° beam angle
- Functions: stepless RGBW color mixture, automatic color change, preset colors and color temperatures, figure and letter patterns, strobe effect with variable speed, random strobe effect, dimmer
- Different dimmer curves and dimmer speed (step response) adjustable
- Automatic position correction
- Exact positioning via 16 bit PAN/TILT movement resolution
- PAN angle switchable between 540° and 630°
- DMX-controlled operation or for use via appropriate lighting control software supporting Art-Net
- Control board with LCD for adjusting the DMX-starting address, PAN/TILT reverse, reset
- Ethernet connectors
- P-Con terminals for power linking up to 8 units
- Switch-mode power supply for operation between 100 and 240 volts
- LED: 25 x COB (chip-on-board) 12 W 4in1 QCL RGBW (homogenous color mix)
- Can be operated in 13; 24; 88; 113 CH mode
- The device is cooled by cooling fan
- Controlling by DMX; Stand-alone
- Is in EUROLITE LED PC-Control 512 software already preprogrammed
- Flicker-free projection
- Effect: Single Beam
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 450 W |
| IP classification: | IP20 |
| Lamp type: | LED lamp |
| LED: | 25 x COB (chip-on-board) 12 W 4in1 QCL RGBW (homogenous color mix) |
| Max. TILT movement: | Exact positioning (16 bit resolution) plus infinity Auto position correction (feedback) |
| Max. PAN movement: | Exact positioning (16 bit resolution) 540° Positioning switchable to 630° plus infinity Auto position correction (feedback) |
| Flash rate: | 0 - 20 Hz |
| Equipment: | Zoom motor-driven |
| DMX channels: | 13; 24; 88; 113 |
| DMX input: | 1 x 3-pin XLR (M) mounting version 1 x 5-pin XLR (M) mounting version |
| DMX output: | 1 x 3-pin XLR (F) mounting version 1 x 5-pin XLR (F) mounting version |
| Network connection: | Protocol: ArtNet 3 via 2x RJ-45 E-Con (F) mounting version |
| Power connection: | Mains input P-Con (blue), mounting version Power supply cord with safety plug (provided) |
| Cooling: | Cooling fan |
| Control: | DMX; Stand-alone; EUROLITE LED PC-Control 512 software |
| Beam angle: | 7.5 - 69° |
| Beam angle (1/2 peak): | 7.5 - 60° |
| Beam angle (1/10 peak): | 11 - 69° |
| Illuminance in Lux (lx): | Narrow R red 3m: 4095 lx, 6m: 1114 lx Wide R red 3m: 238 lx, 6m: 66 lx Narrow G green 3m: 8135 lx, 6m: 2314 lx Wide G green 3m: 493 lx, 6m: 140 lx Narrow B blue 3m: 1638 lx, 6m: 476 lx Wide B blue 3m: 102 lx, 6m: 30 lx Narrow CW 3m: 10691 lx, 6m: 3011 lx Wide CW 3m: 626 lx, 6m: 179 lx Narrow all 3m: 22665 lx, 6m: 6337 lx Wide all 3m: 1345 lx, 6m: 380 lx |
| Housing color: | Black |
| Dimension: | Width: 41.5 cm Depth: 31 cm Height: 53.5 cm |
| Weight: | 18.40 kg |
| Legal specifications | |
| Ecodesign regulation: | Yes |
| Special product: | Not designed for household room illumination |
| Purpose: | Show effect lighting |
