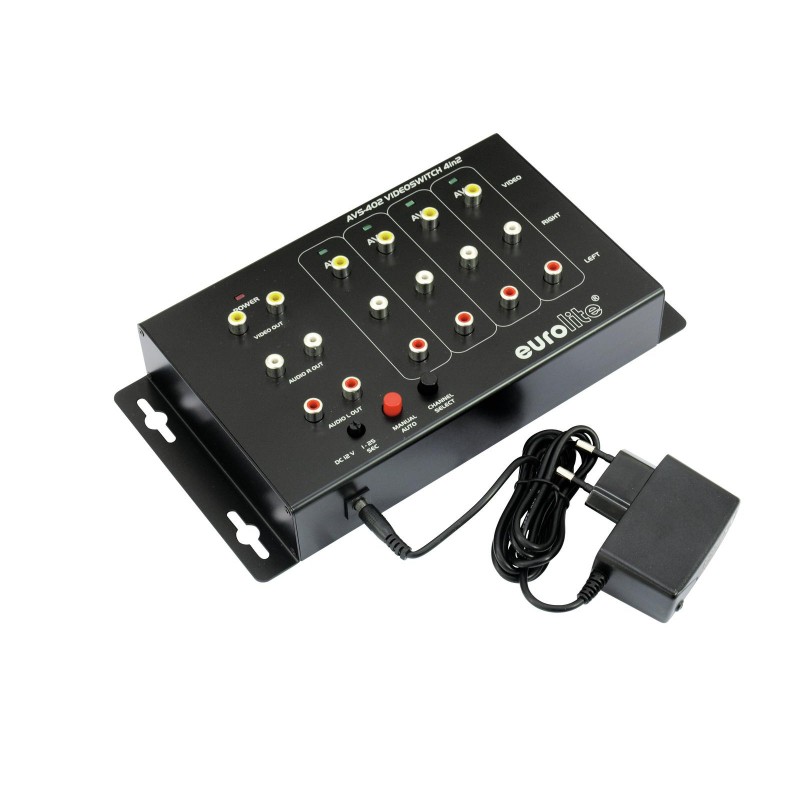

EUROLITE AVS-402 Video switch 4in2

57,99 €
Tasse escluse

Sconti sul volume

Quantità Prezzo unitario Salva
3 57,99 € 10,44 €
Quantità
Disponibile

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

EUROLITE AVS-402 Video switch 4in2
Codice: 81013101        codice Ean: 4026397306613        MARCA:  EUROLITE



4-way AV switch

  • For switching four AV sources (audio, composite video and s-video television signals) up to two television monitors
  • Typical applications are security or information systems in shopping centres, schools, hotels, railway stations, airports etc.
  • 4 inputs (RCA), manually or automatically switchable
  • Automatic switching time adjustable from 1 to 25 seconds
  • 2 outputs (RCA)
  • Simultaneous recording to one or two video or DVD recorders
  • A stereo system can be connected via the second output
  • 12 V power supply via power unit included in the delivery


Power supply:100-240 V AC, 50/60 Hz
Power consumption:6.00 W
Frequency range:20 - 100 Hz
S/N ratio:>100 dB
THD:<0.05 % at 1 kHz
Dimension:Width: 24.2 cm
Depth: 12.8 cm
Height: 5 cm
Weight:0.75 kg
Video:
4 x inputs:1 Vpp/ 75 ohms, composite RCA
2 x outputs:1 Vpp/ 75 ohms, composite RCA
Gain:2 V, 1 V (terminated)/ 75 ohms
Return loss:>18 dB
Video bandwidth:>100 MHz
Audio:
4 x inputs:22 kohms, stereo RCA
2 x output:1 kohms, stereo RCA
Gain:nominal 0 dB
Channel separation:>75 dB
