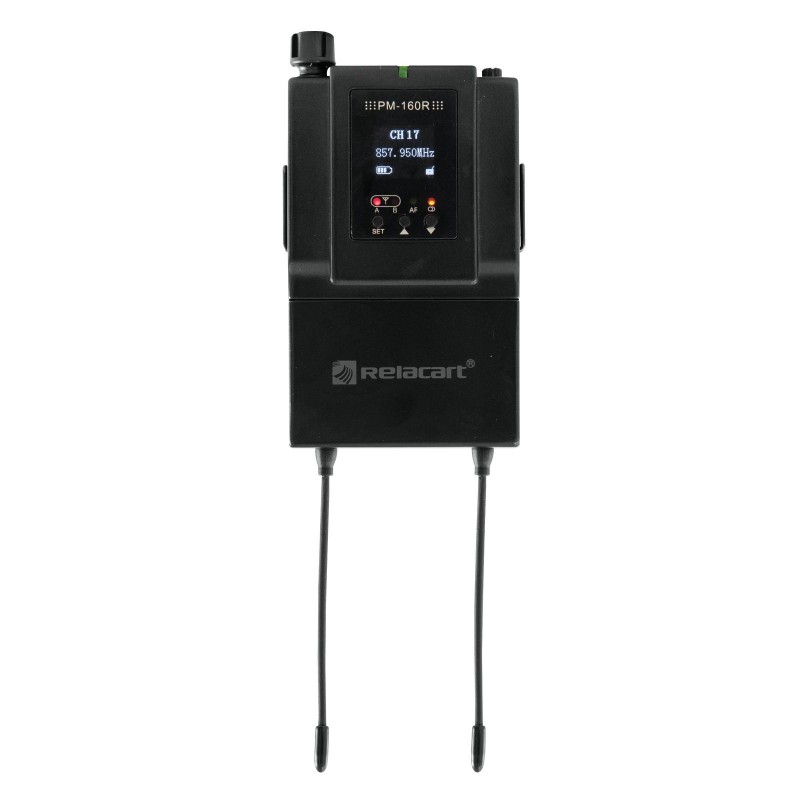

13055215 / RELACART PM-160R Diversity In-Ear Receiver

Codice: 13055215        codice Ean: 4026397537055        MARCA:  RELACART

The PM-160 is a sturdy in-ear monitoring system delivering outstanding sound for live music, theatre and voice applications. Diversity technology guarantees optimum reception quality without interference or dropouts. The system can be operated in mono and stereo mode. The bodypack receiver is 190 g light and offers perfect wearing comfort.

In-ear stereo wireless receiver with diversity technology

• Stereo pocket receiver with 32 preset channels for in-ear monitoring
• Incl. earphones
• Extension for the matching in-ear monitoring system PM-160
• Sturdy all-metal housing with soft-touch controls, applicable for touring
• Diversity technology with 2 antennas for high reception quality
• 2 license-free frequency ranges: 823-832 MHz (Duplex Gap) and 863-865 MHz
• Pilot tone technology (PLL) and noise squelch for interference-free reception
• OLED display for battery capacity, receiving frequency/channel
• LEDs for antenna A/B, AF signal and stereo operation
• Stereo or mono/mix mode
• Balance L/R adjustable
• Lock function for prevents undesired changes to settings
• Operation via 2 x 1.5 V batteries (type AA), not included
• License-free and approved in the EU (please check Duplex Gap on a country-by-country basis)
• Use a operating range up to 80m with line of sight

Type:	In-ear Monitor
Power consumption:	0.525 W
Battery:	2 x Mignon (AA) (not included)
Number of channels:	1
Frequency range:	45 - 18000 Hz
S/N ratio:	>105 dB
Power connection:	Battery/battery pack (not included)
Connections:	Input: 1 x line via 3.5 mm jack (stereo) mounting version
Frequency band:	UHF 823 - 832 MHz; UHF 863 - 865 MHz
Frequency selection:	32 Switchable frequencys
Modulation:	FM, stereo
Frequency stability:	± 0.0005 %
Range:	80 m with line of sight
Switching bandwidth:	11 MHz
Switch:	On/off switch
Diversity:	Diversity
Material:	Aluminum
Dimension:	Width: 6.6 cm Depth: 2.2 cm Height: 11.8 cm
Weight:	0.16 kg
