OMNITRONIC IEM-1000 In-Ear Monitoring Set

Codice: 14013240 codice Ean: 4026397517415 MARCA: OMNITRONIC

Multifrequency in-ear monitoring set, 823-832 MHz

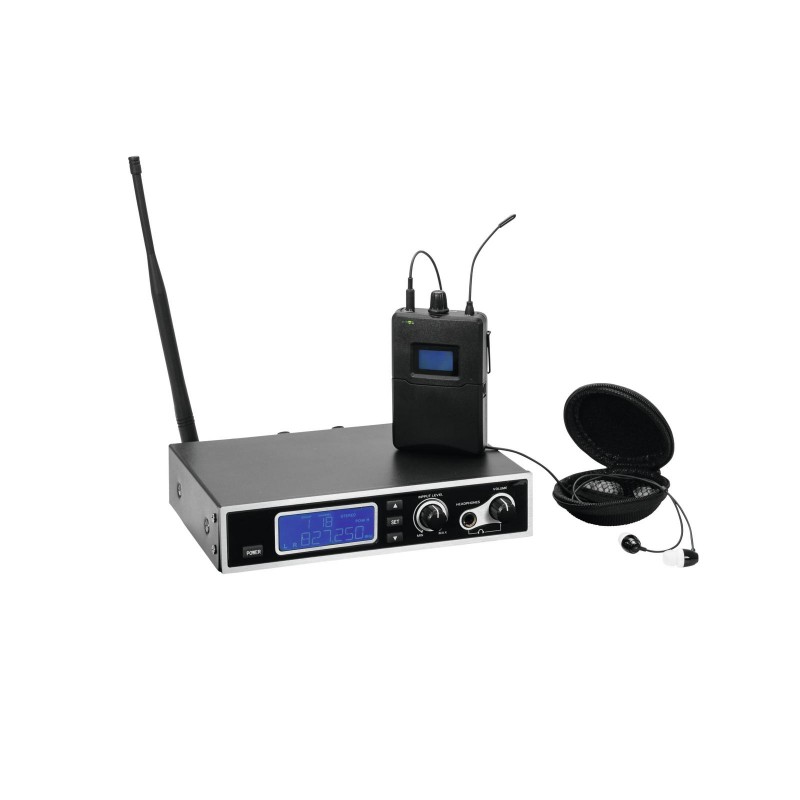

Set includes a stationary stereo UHF transmitter, a stereo UHF pocket receiver and mini earphones
Operation in the Duplex Gap 823-832 MHz
License-free in Germany and 13 other countries
10 groups with 60 fixed frequencies
Multifrequency transmitter with UHF pilot tone technology (PLL)
Transmits signals to any number of receivers with the same carrier frequency
Parallel operation of 6 sets is possible without any interference
Further pocket receivers STR-1000 can be ordered separately
License-free in the EU
Stationary transmitter:
Rubber antenna with BNC connection
LCD for mono/stereo mode, stereo signal input and transmission frequency
2 adjustable inputs via balanced combo mounting jacks XLR/6.3 mm
Adjustable headphones output
Stereo or mono mode
Operation via supplied power unit
483 mm rack installation possible with supplied mounting brackets
STR-1000 pocket receiver:
Adjustable earphones output
LCD for battery capacity, receiving frequency, and RF signal
Lock function for prevents undesired changes to settings
Belt clip

transmitter

Receiver

Type:	In-ear Monitor
Weight:	1.56 kg
transmitter
Power supply:	100-240 V AC, 50/60 Hz 14 V DC
Power consumption:	5.00 W
Number of channels:	1
Frequency range:	40 - 16.000 Hz
S/N ratio:	>105 dB
THD:	<0.4 % at 1 kHz
Power connection:	Mains input Coaxial power connector (M) Power supply cord with AC adapter (provided)
Connections:	Input: 2 x line via 3-pin XLR/6.35mm jack (F) combination socket (mounting version) 1 x antenna via BNC (F)
Frequency band:	UHF 823 - 832 MHz
Frequency selection:	Switchable frequencys In 10 groups with up to 6 preset frequencies each
Modulation:	F3F
RF power output:	10 mW
Frequency stability:	± 0.005 %
Housing design:	Desktop console housing (19") 48.3 cm rack installation (optional)
Weight:	1.1 kg
Receiver
Battery:	2 x Mignon (AA) (not included)
Power connection:	Battery/battery pack (not included)
Connections:	Output: 1 x headphones via 3.5 mm jack (stereo) mounting version
Frequency band:	UHF 823 - 832 MHz
Range:	100 m with line of sight
Switch:	On/off switch
Dimension:	Length: 10 cm Width: 6.5 cm Depth: 2.5 cm
Weight:	0.1 kg
