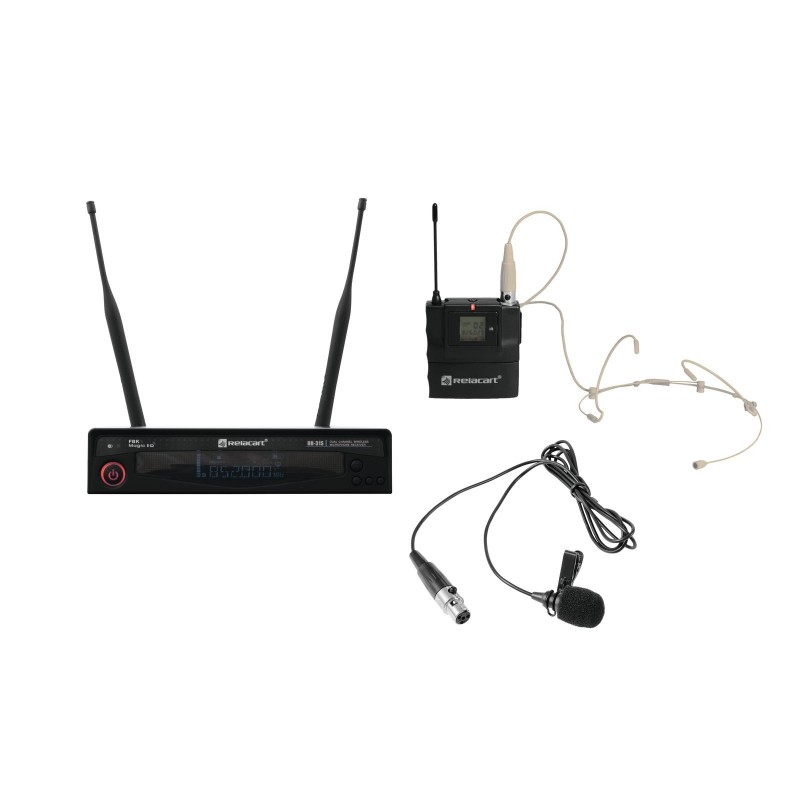

RELACART Set HR-31S Bodypack with Headset and Lavalier

Multifrequency wireless receiver with bodypack, headset and lavalier microphone

13055200 RELACART HR-31S 1-Channel True Diversity Receiver

True diversity wireless receiver with PC control

• Multifrequency wireless receiver with high-quality true diversity reception
• Real-time monitoring and data management using RWW PC software
• 2 license-free frequency ranges: 731-790 MHz (10 EU countries) and 823-832 MHz (14 EU countries)
• 731-790 MHz (requires license in Germany) is lockable and offers 244 fixed frequencies (10 frequency banks with up to 25 frequencies each)
• 823-832 MHz (license-free in Germany) offers 48 fixed frequencies (8 frequency banks with up to 7 frequencies each)
• 292 frequencies manually adjustable in steps of 25 kHz within 68 MHz switching bandwidth
• Parallel operation of up to 16 systems is possible without any interference
• Pilot tone technology (PLL) and noise squelch for interference-free operation
• Automatic frequency scan (AFS) finds interface-free channels
• Infrared interface for easy and error-free channel transfer to transmitters via infrared signal
• LCD for battery status of the transmitter, antenna A/B, RF reception level, AF audio level and frequency
• Serial RS-485 interface for connecting a computer with the optional USB/RS-485 converter U485
• Up to 32 units can be linked with network cables
• Lock function avoids accidental changing of settings
• XLR and 6.3 mm jack output
• 2 detachable BNC antennas allow for use with the R-14D antenna divider
• Matching transmitters optionally available: hand-held microphone (HR-31S), pocket transmitter (T-30)
• Delivery includes practical transport bag with jack cable and power unit
• License-free and approved in large parts of the EU (please check on a country-by-country basis)
• Use a operating range up to 80m with line of sight
• The device can be connected via RJ14 (F) mounting version to the PC in connection with Relacart RWW software and the Dongle (optional)
• Desktop console housing 1 U; (19") 48.3 cm rack installation (provided)

13055203 RELACART T-31 Bodypack for HR-31S with Headset

Pocket transmitter with PLL multifrequency transmitter, 731-790 + 823-832 MHz

• Pocket transmitter for receiver HR-31S
• Durable aluminum alloy housing, applicable for touring
• Incl. headset microphone HM-800S
• Lavalier microphone LM-C400 optional
• Pilot tone technology (PLL) for interference-free operation
• 2 license-free frequency ranges: 731-790 MHz (10 EU countries) and 823-832 MHz (14 EU countries)
• 731-790 MHz (requires license in Germany) is lockable and offers 244 fixed frequencies (10 frequency banks with up to 25 frequencies each)
• 823-832 MHz (license-free in Germany) offers 48 fixed frequencies (8 frequency banks with up to 7 frequencies each)
• 292 frequencies manually adjustable in steps of 25 kHz within 68 MHz switching bandw
• Infrared interface for easy and error-free synchronization with the receiver via infrared signal
• LCD for battery status and frequency
• Mute function
• Switchable between microphone and instrument input
• License-free and approved in the EU (please check on a country-by-country basis)

transmitter

• Use a operating range up to 80m with line of sight

Microphone

• Polar pattern: Omnidirectional

13055191 RELACART LM-C420 Lavalier unidirectional

Inconspicuous electret lavalier microphone

• For attaching to the user's tie, shirt or collar
• Provides high-quality voice pickup for public speaking, theater, or business presentations
• Connection via 4-pin mini XLR plug
• Delivery includes foam windscreen
• Polar pattern: Omnidirectional
