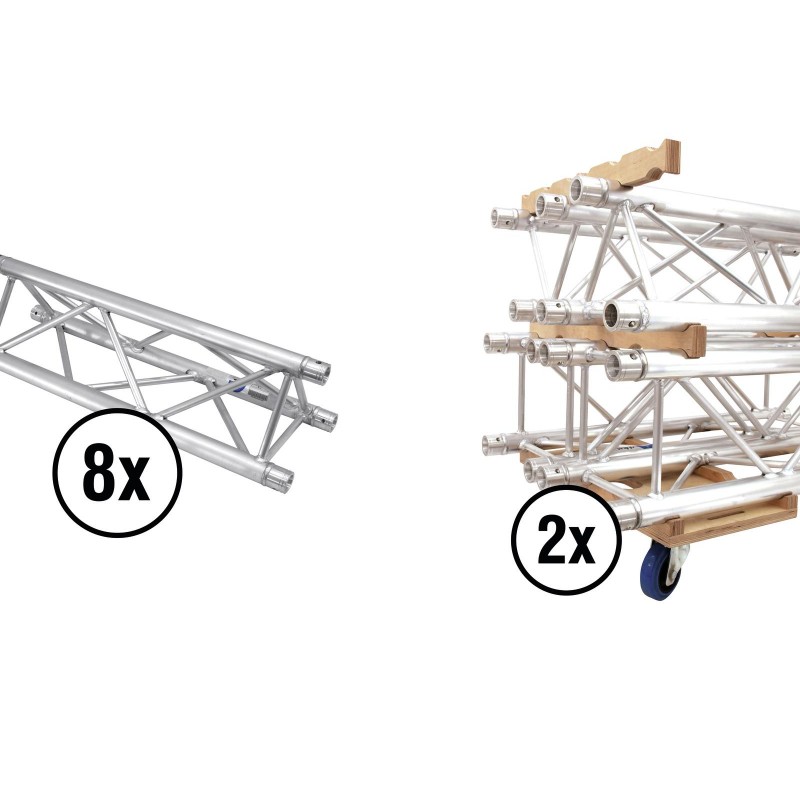

ALUTRUSS Set TRILOCK 6082-2000 + Truss transport board
1.317,99 €
Tasse escluse
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
ALUTRUSS Set TRILOCK 6082-2000 + Truss transport board
Hardware - Traversen - 3-Punkt-Systeme
Peso: 0.0
Codice: 20000089 codice Ean: MARCA: ALUTRUSS
60302360 ALUTRUSS TRILOCK 6082-2000 3-Way Cross Beam
3-point truss system
- Easy installation
- Low weight
- For exhibition and shop installers, discotheque and theatre installations
- 1 x Connection set included
- Trusspipe: 50 mm
- TÜV Süd certified
60320306 ALUTRUSS Truss Transport Board Combo for 3 Wheels
Practical transport cart for QUADLOCK and TRILOCK truss elements
- Practical transport cart made of multiplex wood (15 mm)
- Suitable for QUADLOCK and TRILOCK truss elements with 290 mm
- Quick and secure stacking with optional stacking ridges
- Cut-outs for safety bands for safe transport of the truss elements
- Grip hole
- 12 borings for mounting castors (optional)
- The combination of 2 transport carts and 10 stacking ridges allows transport of 12 truss elements (recommended maximum load)
- Made in Germany
30004005 ROADINGER Swivel Castor 100mm BLUE WHEEL light blue
100 mm swivel castor
- Double ball race
- Housing made of steel, zinc-plated
- Blue elastic tyre
- Roller race hub bearing
- Replaceable bolt-on wheel
- Height: 128 mm
- Carrying capacity: 450 kg per set (4 castors)
- Made in Germany
30004007 ROADINGER Swivel Castor 100mm BLUE WHEEL with brake
100 mm swivel castor
- Double-action brake (wheel and swivel)
- Double ball race
- Housing made of steel, zinc-plated
- Blue elastic tyre
- Roller-race hub bearing
- Replaceable bolt-on wheel
- Height: 128 mm
- Carrying capacity: 450 kg per set (4 castors)
- Made in Germany
30004056 ROADINGER Bolt Set for Wheels
Complete set (4 x screw, 4 x nut, 4 x washer)
- Screw: hexagon screw M8 x30 DIN933 galvanized
- Nut: hexagon screw Kl.8 M8 DIN 934 galvanized
- Washer: FormA 8,4 DIN125 galvanized
- Made in Germany
60320300 ALUTRUSS Truss Transport Ridge Combo
Stacking ridge for QUADLOCK and TRILOCK truss elements
- Stacking ridge for quick and secure stacking of truss elements on matching transport carts
- Suitable for QUADLOCK and TRILOCK truss elements with 290 mm
- Multiplex wood (30 mm)
- Made in Germany
60206787 SHZ Clamping Belt S400 Ratchet 5m/25mm black
Clamping belt
- 1-part
- LC400/800daN surroundings
- With ratchet
| Weight: | 79.58 kg |
| 60302360 ALUTRUSS TRILOCK 6082-2000 3-Way Cross Beam | |
| Trusspipe: | 50 mm x 2 mm |
| Welding technique: | TIG-welding |
| Welding material: | AlMg 5 |
| Color: | Alu colored |
| Strut diameter x thickness: | 16 x 2mm |
| Dimension: | Length: 2000 mm Width: 290 mm Height: 257 mm |
| Weight: | 8.20 kg |
| 60320306 ALUTRUSS Truss Transport Board Combo for 3 Wheels | |
| Maximum load: | 6 truss systems vertical (height approx. 2.10 m) |
| Dimension: | Length: 600 mm Width: 300 mm Height: 41 mm |
| Weight: | 2.19 kg |
| 30004005 ROADINGER Swivel Castor 100mm BLUE WHEEL light blue | |
| Color: | Light blue |
| Dimension: | Diameter: Ø 100 mm |
| Weight: | 0.66 kg |
| 30004007 ROADINGER Swivel Castor 100mm BLUE WHEEL with brake | |
| Color: | Light blue |
| Dimension: | Diameter: Ø 100 mm |
| Weight: | 0.93 kg |
| 30004056 ROADINGER Bolt Set for Wheels | |
| Weight: | 0.09 kg |
| 60320300 ALUTRUSS Truss Transport Ridge Combo | |
| Dimension: | Length: 600 mm Width: 30 mm Depth: 50 mm |
| Weight: | 0.50 kg |
| 60206787 SHZ Clamping Belt S400 Ratchet 5m/25mm black | |
| Standard: | EN 12195-2, |
| Color: | Black |
| Dimension: | Width: 25 mm |
| Dimension: | Length: 5 m |
| Weight: | 0.30 kg |
