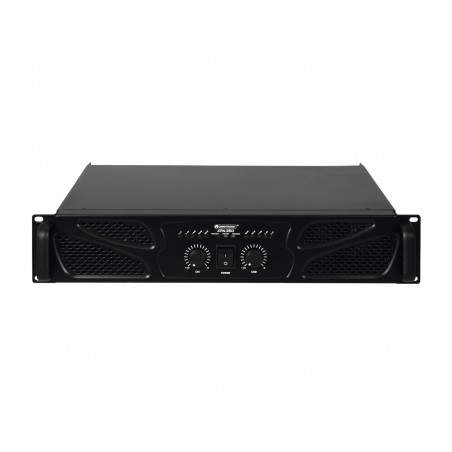

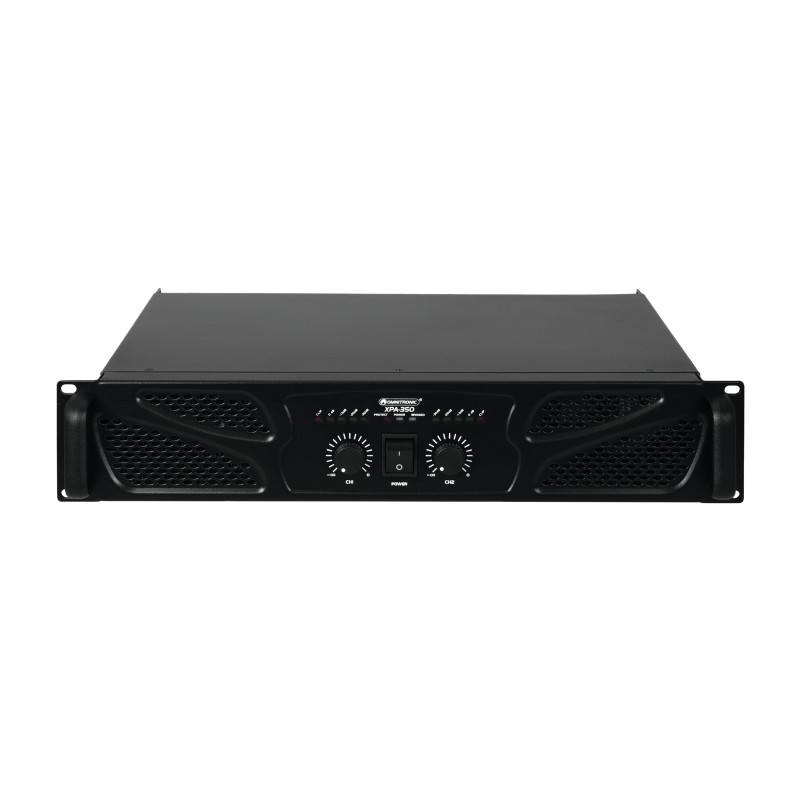

OMNITRONIC XPA-350 Amplifier

Codice: 10451031 codice Ean: 4026397593877 MARCA: OMNITRONIC

PA amplifier with limiter, 2 x 175 W / 4 ohms, 2 x 130 W / 8 ohms

2 operating modes can be selected (stereo or bridged)
Limiter, switchable
Speaker switch-on delay
2 level controls
Each channel with LED for activated protective circuit (protect) and output meter with clip LED
Complete protection set against short-circuit, overheat, DC voltage, power on/off transients
Groundlift switch against humming
Signal inputs via XLR or 6.3mm jack connectors
Speaker outputs via lockable speaker jacks and pairs of screw terminals
Additional Speaker plug for 8-ohm bridge operation
Class AB circuitry
The device is cooled by cooling fan
(19") 48.3 cm rack installation 2 U

Power supply:	115/230 V AC, 50/60 Hz
Power consumption:	280 W 1/8 power
Output power:	2 x 175 W RMS (4 ohms) 2 x 130 W RMS (8 ohms) 350 W RMS bridged (8 ohms)
Frequency range:	20 - 20000 Hz
S/N ratio:	>95 dB
THD:	<0.5 % at 1 kHz
Power connection:	Mains input IEC connector (M) mounting version Power supply cord with safety plug (provided)
Cooling:	Cooling fan
Impedance:	Input 20 kOhm , bal. Input 10 kOhm , unbal.
Circuitry:	Class AB
Slew rate:	>20 V/µs
Damping factor:	>350
Control elements:	Power switch, level control per channel, groundlift selector, limiter selector, mode switch (stereo/bridged)
Controls:	Short-circuit; overheat; DC voltage; softstart; power on/off transients
Status LED:	Power, level meter, clip, bridged, protect
Connections:	Input: 2 x line via 3-pin XLR Input: 2 x line via 6.3 mm jack socket (stereo) mounting version Output: 2 x speakers via speaker built-in socket (f) Output: speakers via screw terminal Output: 1 x Speaker (bridge) via speaker built-in socket (f)
Input sensitivity:	1.4 V
Max. level:	Input: +21 dBV Input: +9 V
Housing design:	(19") 48.3 cm rack installation 2 U
Dimension:	Width: 48.3 cm Depth: 35.4 cm Height: 8.9 cm
Weight:	7.35 kg
