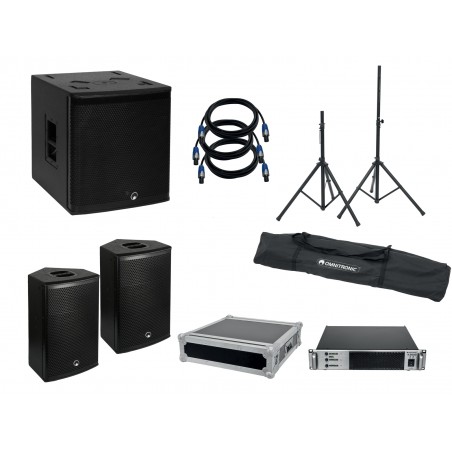

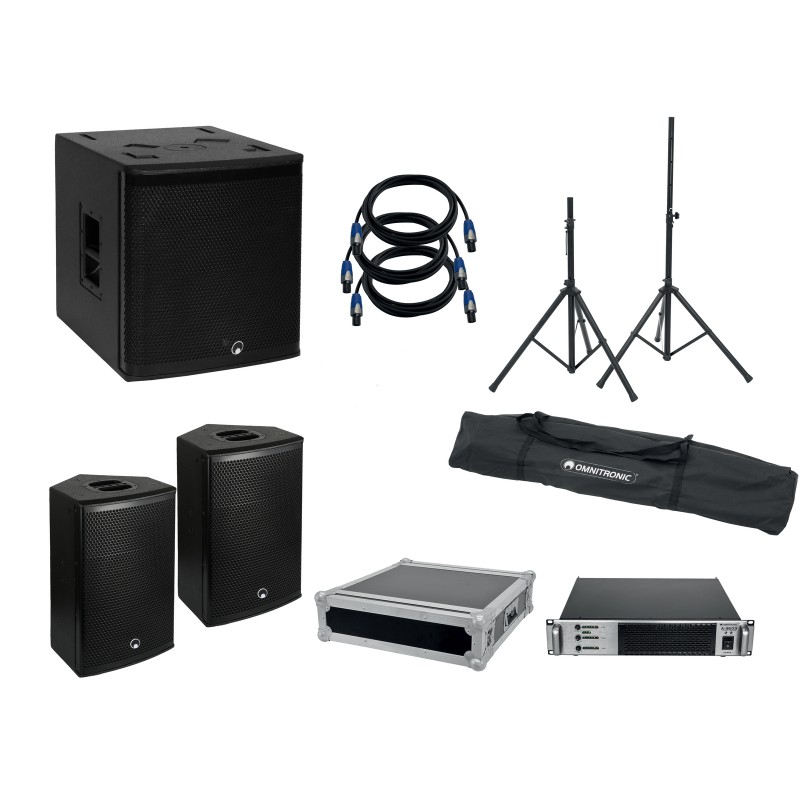

OMNITRONIC PAS MK3 Party Set
Audio - Boxensysteme - Fullrange-Boxen
Peso: 100.0
Codice: 20000744 codice Ean: 4026397682366 MARCA: OMNITRONIC
11039486 OMNITRONIC PAS-151 MK3 Subwoofer
Passive 15" bassreflex subwoofer with 700 W RMS, 8 ohms
- Rugged Pro PA subwoofer
- 38 cm (15") bass speaker
- Parallel Speaker connectors
- Rugged multiplex cabinet
- Scratch-resistant lacquer surface
- Metal handlebars
- Impact-resistant steel grille with acoustic foam
- Flange for mounting top speakers
- Transport aid: Wheels optional
11039474 OMNITRONIC PAS-210 MK3 2-Way Top
Passive speaker with 10" woofer, 1" driver and 250 W RMS
- Rugged full-range top speaker, qualified for suspension
- Trapezoidal, multi-functional multiplex cabinet with scratch-resistant lacquer surface
- 2-way bass-reflex system with 25 cm woofer (8 cm voice coil)
- 2.5 cm compression driver with ferrite magnet (3.8 cm voice coil with polymer diaphragm)
- Parallel Speaker connections
- Optimized for combination with PAS subwoofers
- Dual flange with 0° and 5° tilt angle enables flexible positioning
- M8 threaded inserts for suspended installation
- Protective grille and recessed handlebars
- Applications: standing, on a subwoofer or speaker stand, suspended
60004023 OMNITRONIC Speaker Stand MOVE MK2 set
2 high-quality stands, extendible up to 185 cm, max. load 30 kg + bag
- Set consisting of 2 x speaker stand and carry bag
- Height adjustable, with locking pin
- Height: 100-185 cm
- Tube diameter: Ø 35 mm
- Centric load: 30 kg
- Scratch-resistant black finish
- Stable steel version
10452370 OMNITRONIC A-3603 Class-D 2.1 Amplifier
3-channel PA amplifier with crossover network - 4 ohms: 1 x 2000 W, 2 x 800 W
- 3-channel PA amplifier with class D circuitry and switch mode power supply
- Adjustable crossover frequency for satellites and subwoofer
- 2.1 operation or 3-channel operation selectable
- 3 level controls
- LED VU meter and LEDs for activated protective circuit (protect) and overload (clip) per channel
- Electronically balanced inputs via XLR mounting jacks, with XLR feed-through outputs
- Speaker outputs via lockable Speaker plugs
- Rugged steel chassis with aluminum front panel
- Rack installation with 2 units
- (19") 48.3 cm rack installation 2 U
30109095 ROADINGER Rack Profi 2U 45cm
PRO flightcase for 483 mm units (19")
- Profile rails with mounting facility for 483 mm units (19"), e.g. PA amplifiers, power packs, additional equipment
- 2 removable covers (double-door version)
- High-quality workmanship with 9 mm multiplex birch wood, dark brown laminated
- Aluminum profile frames (30 mm) with rounded edges
- Three-leg, medium-sized steel ball corners
- 2 recessed case handles with mounting dish and backing ring
- 4 butterfly locks
- 2 wooden slide rails
- 2 U
- Made in Europe
30227910 PSSO Speaker cable Speakon 2x2.5 5m bk
High-quality speaker cable
- With Neutrik plugs from Liechtenstein
- Cable from German production
- 2 pole speaker cable
- With Neutrik Speakon cable plugs
- Cable cross-section: 2.5 mm²
- Cable length 5 m
- Cable diameter 8 mm
- Weight 0.5 kg
| Weight: | 83.44 kg |
| 11039486 OMNITRONIC PAS-151 MK3 Subwoofer | |
| Rated power: | 700 W RMS |
| Program power: | 1400 W |
| Frequency range: | 40 - 200 Hz |
| Sensitivity: | 97 dB (1W/1m) |
| Max. SPL: | 127 dB |
| Impedance: | 8 Ohm |
| Connections: | Input: 2 x speakers via speaker built-in socket (f) |
| Speakers: | 1 x woofer (15") approx 38 cm with ferrit magnet Basket material: aluminum Voice coil lows (4") approx. 10 cm |
| Type of speaker: | Subwoofer |
| Type: | Vented |
| Material: | Birch multiplex |
| Color: | Black, painted |
| Dimension: | Width: 46 cm Depth: 56 cm Height: 52 cm |
| Weight: | 31.25 kg |
| 11039474 OMNITRONIC PAS-210 MK3 2-Way Top | |
| Rated power: | 250 W RMS |
| Program power: | 500 W |
| Frequency range: | 65 - 20000 Hz |
| Sensitivity: | 96 dB (1W/1m) |
| Max. SPL: | 123 dB |
| Dispersion angle: | 90° x 60° |
| Crossover frequency: | 3200 Hz |
| Impedance: | 8 Ohm |
| Attachment system: | Ø 35mm variable tilt |
| Flying points: | 5 x M8 thread; 4 x M10 thread |
| Connections: | Input: 2 x speakers via speaker built-in socket (f) |
| Speakers: | 1 x compression tweeter highs (1") approx 2,5 cm with ferrit magnet Basket material: aluminum Voice coil compression tweeter highs (1.5") approx 4 cm Horn vent (1") approx 2,5 cm 1 x woofer (10") approx 25 cm Voice coil lows (2.5") approx. 6.35 cm |
| Type of speaker: | Compact cabinet speaker |
| Material: | Birch multiplex |
| Color: | Black, painted |
| Dimension: | Width: 32 cm Depth: 52.5 cm Height: 30 cm |
| Weight: | 12.95 kg |
| 60004023 OMNITRONIC Speaker Stand MOVE MK2 set | |
| Maximum carrying capacity: | 30 kg |
| Tube diameter sector: | 35 |
| Height: | Maximum: 1.85 m Minimum: 1.00 m |
| Attachment system: | Ø 35mm |
| Type (general stands): | Speaker stand/manual |
| Material: | Steel |
| Color: | Black |
| Weight: | 5.80 kg |
| 10452370 OMNITRONIC A-3603 Class-D 2.1 Amplifier | |
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 685 W 1/8 power |
| Output power: | 2 x 400 W RMS (8 ohms) 1 x 1000 W RMS (8 ohms) 2 x 800 W RMS (4 ohms) 1 x 2000 W RMS (4 ohms) |
| Frequency range: | 20 - 20000 Hz |
| S/N ratio: | >100 dB |
| THD: | <0.003 % at 1 kHz |
| Power connection: | Mains input P-Con (blue), mounting version Power supply cord with safety plug (provided) |
| Impedance: | Input 20 kOhm , bal. Input 10 kOhm , unbal. |
| Gain: | 41.2 dB |
| Circuitry: | Class D |
| Slew rate: | >10 V/µs |
| Damping factor: | >500 |
| Control elements: | Power switch, level control per channel, mode switch (2/3 channels), crossover frequency |
| Status LED: | Protect, clip, level meter, bridged |
| Connections: | Input: 3 x line via 3-pin XLR Link: 3 x line via 3-pin XLR Output: 3 x speakers via speaker built-in socket (f) |
| Housing design: | (19") 48.3 cm rack installation 2 U |
| Dimension: | Width: 48.3 cm Depth: 41 cm Height: 8.9 cm |
| Weight: | 9.10 kg |
| 30109095 ROADINGER Rack Profi 2U 45cm | |
| Maximum load: | 50 kg |
| Material: | Birch multiplex, 9 mm |
| Color: | Dark brown, laminated |
| Outer dimensions/corners approx.: | 65 mm |
| Mounting width: | 483 mm (ca. 19") |
| Mounting height: | Approx. 90 mm (2 U) |
| Mounting depth: | 450 mm |
| Housing design: | 2 U |
| Dimension: | Width: 55.5 cm Depth: 59.5 cm Height: 17 cm |
| Weight: | 9.80 kg |
| 30227910 PSSO Speaker cable Speakon 2x2.5 5m bk | |
| Cable construction: | 2 x 2.5 mm² Loudspeaker cable |
| Cable length: | 5 m |
| Plug A: | 1 x 2-pin speakON (M) |
| Plug B: | 1 x 2-pin speakON (M) |
| Use of brands: | NEUTRIK |
| Color: | Black |
| Weight: | 0.53 kg |
