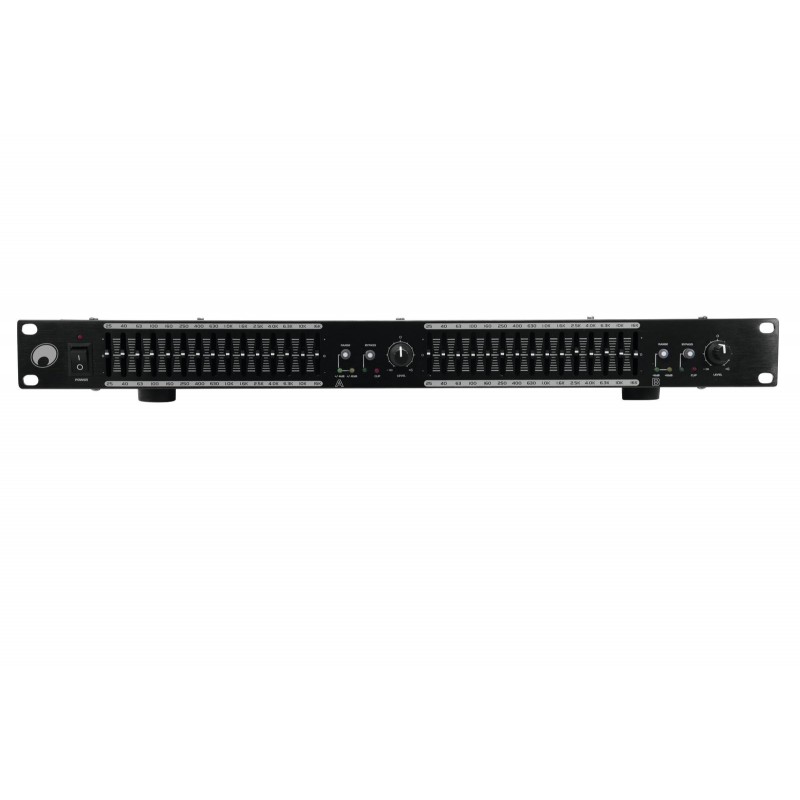

OMNITRONIC GEQ-2150 Equalizer 2x15-Band

90,99 €

Tasse escluse

Sconti sul volume

Quantità	Prezzo unitario	Salva
3	90,99 €	16,38 €

Quantità

Disponibile

Security policy

(edit with the Customer Reassurance module)

Delivery policy

(edit with the Customer Reassurance module)

Return policy

(edit with the Customer Reassurance module)

OMNITRONIC GEQ-2150 Equalizer 2x15-Band

Codice: 10355522 codice Ean: 4026397522822 MARCA: OMNITRONIC

2 x 15-band equalizer

2-channel version, 2 x 15 frequency controls with 2/3 octave steps
Short sliding frequency controls with center click
EQ gain switchable ±6 dB to ±12 dB
Separate level control per channel
Bypass switch allows instant comparison of the original sound with the equalized sound
Clip indicator
Inputs and outputs via 6.3 mm jack sockets and XLR sockets
Groundlift switch
(19") 48.3 cm rack installation 1 U

Power supply:	230 V AC, 50 Hz
Power consumption:	13 W
Frequency range:	20 - 20000 Hz
S/N ratio:	>96 dB
THD:	<0.05 % at 1 kHz
Power connection:	Mains input IEC connector (M) mounting version Power supply cord with safety plug (provided)
Impedance:	Input 20 kOhm , bal. Input 15 kOhm , unbal. Output 300 kOhm , bal. Output 150 kOhm , unbal.
Gain:	Output: - ? to + 6 dB
Equalizer:	Master: 2 x Graphic equalizer 15-band Centre frequency: ISO standard, 2/3 octave, 25/40/63/100/160/250/400/630 Hz, 1/1,6/2,5/4/6,3/10/16 kHz
Control range:	±6dB, ±12dB, switchable
Connections:	Input: 2 x line via 3-pin XLR Input: 2 x line via 6.3 mm plug (unbal.) Output: 2 x line via 3-pin XLR Output: 2 x line via 6.3 mm plug (unbal.)
Max. level:	Input: +24 dBu, bal. Input: +18 dBu, unbal. Output: +24 dBu, bal. Output: +18 dBu, unbal.
Housing design:	(19") 48.3 cm rack installation 1 U
Dimension:	Width: 48.3 cm Depth: 22 cm Height: 4.45 cm
Weight:	2.40 kg
