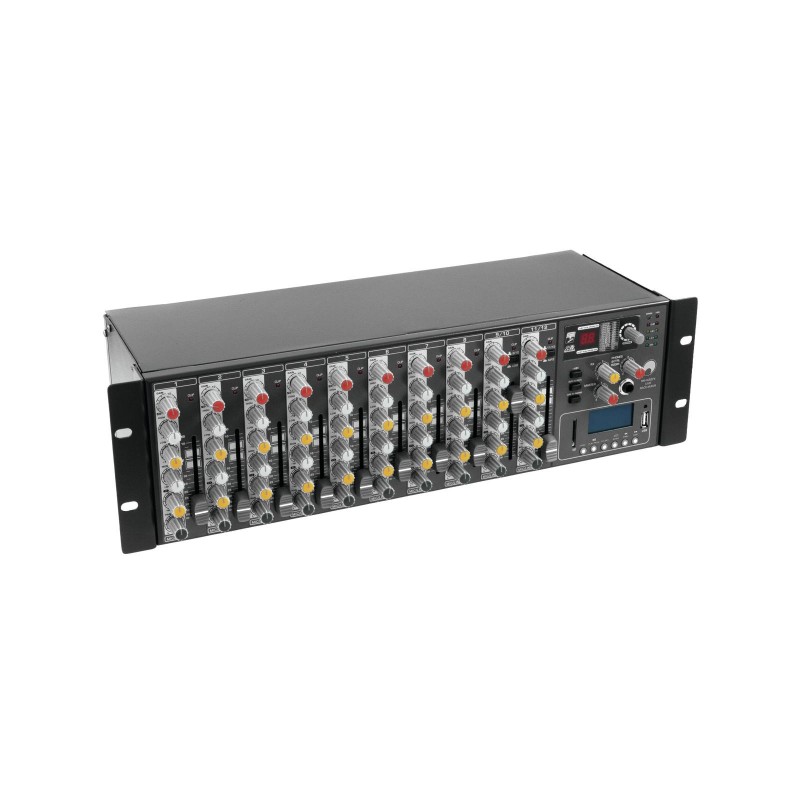

OMNITRONIC RM-1422FX USB Rack Mixer

Codice: 10040300        codice Ean: 4026397571059        MARCA:  OMNITRONIC

Compact all-rounderWhether it is used as small live mixer, recording studios or permanent installations-the RM--1422FX is the right answer for your 19" rack. Along with a full-fledge audio mixer, you'll get an FX unit, an MP3 player for external USB and SD storage media, and most importantly, a USB audio interface for recordings and playback with your computer in the smallest of spaces.

Professional 19" mixer with 12 channels, DSP FX unit and MP3 player

• Built-in USB audio interface allows recordings and playback of digital audio files with a computer (PC and Mac)
• 24 bit DSP FX unit with 16 different effects, e.g. reverb, echo and flanger
• 6 mono input channels with gain control, 2-way EQ, pan control and channel fader
• 2 stereo input channels with 2-way EQ, balance control and channel fader
• 8 channel inserts
• Tape input and output
• Separate main mix and control room outputs
• 2 aux send outputs
• Adjustable headphones output
• +48 V phantom power, can be switched centrally
• 4-digit stereo LED level display
• MP3 player with SD card slot, USB input, LCD and IR remote control
• Digital signal processor 24 bit with 16 effects
• Controlling by IR remote control
• (19") 48.3 cm rack installation 3 U

Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	50 W
Protection class:	Class I
Fuse:	Device fuse 5 x 20 mm, T 0.5 A Fuse replaceable
Frequency range:	20 - 20000 Hz
S/N ratio:	>89 dB
THD:	<0.05 % at 1 kHz
DSP:	Digital signal processor 24 bit with 16 effects
Power connection:	Mains input IEC connector (M) mounting version Power supply cord with safety plug (provided)
Control:	IR remote control
Audio player:	USB + SD
Housing color:	Silver
Display type:	Monochrome LCD display Monochrome 2 digits 7-segment LED display
Control elements:	Phantom power switch, Audio player, encoder
Status LED:	Power, master level meter, clip, phantom power
Connections:	Input: 8 x Microphone via 3-pin XLR Input: 12 x line via 6.3 mm jack socket (mono) mounting version Input: 1 x 2-Track via stereo RCA Input: 2 x AUX returns via 6.3 mm jack socket (mono) mounting version Output: 2 x AUX sends via 6.3 mm jack socket (stereo) mounting version Output: 1 x 2-Track via stereo RCA Output: 2 x master via 3-pin XLR Output: 1 x headphones via 6.3 mm jack socket (stereo) mounting version Output: 2 x control room via 6.3 mm plug (unbal.) Insert: 8 x via 6.3 mm jack socket (stereo) mounting version Link: 1 x line via USB B (W) mounting version
Chanals:	Input chanel: 8 x mono via XLR or jack, channel control via fader, 2-band tone control EQ ±15dB at 80Hz/12kHz, 2 Send/AUX, gain control, panoramacontol, Input chanel: 1 x stereo with Line-USB switch via Plug 6,3mm/3,5mm (Jack), channel control via fader, 2-band tone control EQ ±15dB at 80Hz/12kHz, 2 Send/AUX, gain control, balancecontrol, Input chanel: 1 x stereo with Line-player switch via Plug 6,3mm/3,5mm (Jack), channel control via Rotary knob, 2-band tone control EQ ±15dB at 80Hz/12kHz, 2 Send/AUX, gain control, balancecontrol, Master output: 1 x stereo via XLR, channel control via Rotary knob Headphones output: 1 x stereo via Plug 6,3mm/3,5mm (Jack), channel control via Rotary knob
USB port:	1 x Typ A; 1 x USB 1.1, Typ B
Material:	Metal
Housing design:	(19") 48.3 cm rack installation 3 U
Dimension:	Width: 48.3 cm Depth: 18 cm Height: 13.35 cm
Weight:	4.07 kg
Remote control
Battery:	1 x Button cell 3.0 V CR2025 lithium manganese built-in
