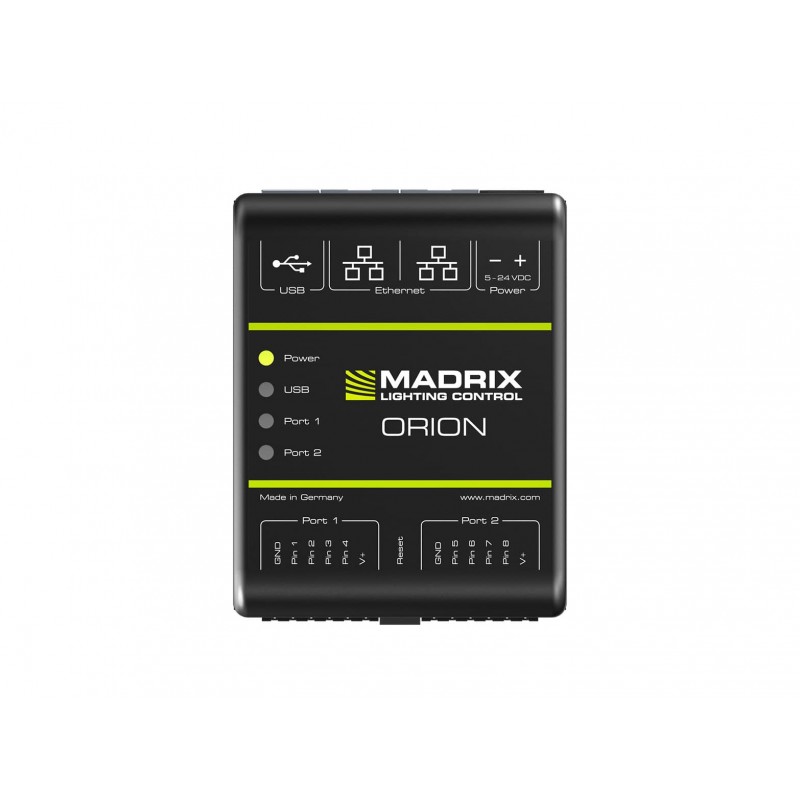

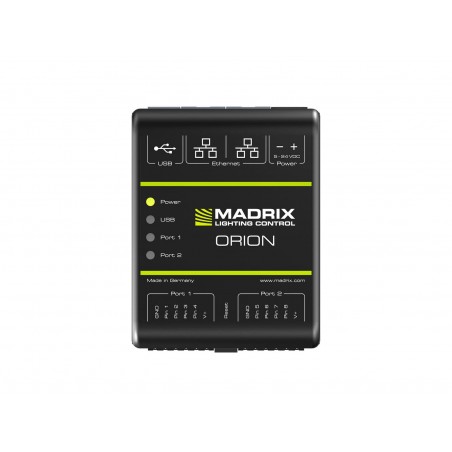

MADRIX ORION

Powerful A/D converter

• MADRIX ORION is a powerful A/D converter
• It converts any analog input signal (0 to 12 V) into a digital DMX output signal (8 bit or 16 bit)
• Supports a wide range of compatible sensors, potentiometers, switches, and triggers
• Allows you to easily create interactive projects using sensors for light, temperature, PIR, and many more
• Acts as a brigde between such equipment and a receiver, which usually is another control solution that processes and uses the incoming signals
• Can be used to connect to building and home automation systems
• Sends data over Ethernet network (Art-Net and/or Streaming ACN)
• Can also be used as USB interface together with the MADRIX 5 Software
• Features two main 6-pin ports for the direct connection to your equipment (each port incl. 4 indivdual pins plus GND and V+; for a total of 8 inputs per device)
• Provides versatile output as different input types allow data to be processed and parameterized differently
• Provides very flexible power and connection options for the device itself and connected equipment
• Each input can be separately set as Analog-IN, Digital-IN, Counter, and other useful functions
• 2 Ethernet ports with daisy-chain support for the data connection without using a separate network switch or router
• Works great with the MADRIX Software (sold separately) with quick and easy installation
• Complies with the official specifications of Art-Net and Streaming ACN and can be used as regular network unit with other 3rd-party consoles, controllers, or software solutions
• 8 status LEDs, which can be turned off
• Built-in web page for simple on-device configuration
• Can be mounted on 35-mm DIN rails or walls via the provided wall-mount brackets
• Non-conductive enclosure with IP20 and UL94 V-O flammability rating
• Fanless, noiseless, and low-energy design
• Ready within seconds after startup
• Recommended for any small or large project
• Multiple devices can be used together without problems
• The firmware is upgradable for future improvements
• Quick start guide / technical manual available in English and German
• User manuals also available at help.madrix.com
• Made in Germany
• More information available at www.madrix.com
• Made in Germany
