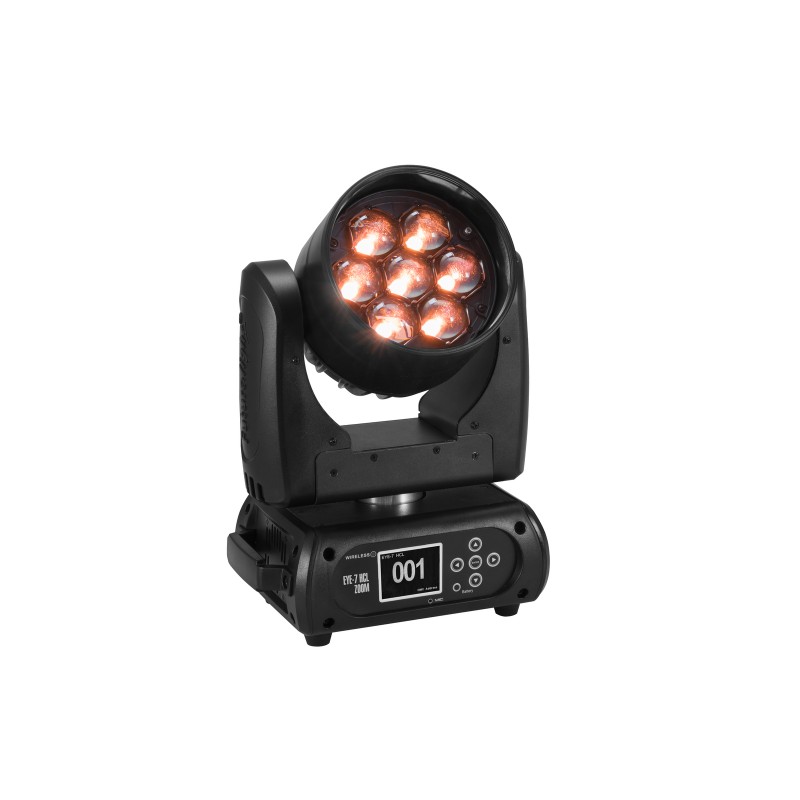

FUTURELIGHT EYE-7 HCL Zoom LED Moving Head Wash

Codice: 51841309        codice Ean: 4026397667608        MARCA:  FUTURELIGHT

Professional moving head with 6-color LEDsThe Futurelight EYE-7 HCL Zoom with motorized zoom offers seven 6in1-COB LEDs in R/G/B/Lime/Amber/Cyan with 17 Watt each. It is a compact and powerful companion for shows, but is also suitable for use in quieter environments such as galas and theatres. Because of the zoom range of 2° - 15°, the Moving-Head can be used flexibly.The Futurelight EYE-7 HCL Zoom can be used in standalone and master-slave mode without a controller. Uncomplicated music control via the built-in microphone is also possible.Premium colorsThe stepless color mixing is based on LEDs in R/G/B/Lime/Amber/Cyan, which mix congruently and evenly. The projection is clear and absolutely flicker-free.Silent operationAs with all models in the EYE series, the operating volume is not noticeable. Although the headlights have a cooling fan, this runs so cleanly and slowly that it cannot be heard even in a quiet environment.

PRO washlight with 6in1 COB LEDs and motorized zoom

• Equipped with 7 x 17 W 6in1 LED in R/G/B/Amber/Lime/Cyan
• Variable PWM frequency (pulse-width modulation)
• Upgrade via optional wireless receiver module for WDMX operation (Wireless Solution - made in Sweden)
• Compact housing
• 2 different LED segments, which can be controlled individually via DMX
• Exact positioning via 16 bit PAN/TILT movement resolution
• Master dimmer with 16 bit resolution
• Motorized zoom with 2 - 36° beam angle
• Color presets
• Preset color temperatures
• Built-in programs
• Stepless color mixture
• Strobe effect with adjustable speed
• Random strobe effect
• Automatic position correction
• PAN angle switchable between 540° and 630°
• ESDC function (Easy Service Data Check) with battery-buffered control board for operation time readouts etc. (the Li-Ion battery 3.7V, AAA, 10440 is not included)
• Control board with graphic LCD and foil-keyboard for adjusting the DMX-starting address, PAN/TILT reverse, reset
• DMX-controlled operation or stand-alone operation with Master/Slave function
• The scenes can be modified via the Control Board or via an external controller and loaded into the memory
• Number of scenes can be changed individually
• Software upload by optional accessories via DMX link
• Power connection via Neutrik PowerCon jack and included power cable
• Feed-through output allows to power up to 8 devices
• DMX control via any standard DMX controller
• LED: 7 x high-power 17 W 6in1 HCL RGBALC (homogenous color mix)
• Can be operated in 16; 19; 20; 33 CH mode
• The device is cooled by temperature-controlled fan
• Controlling by Stand-alone; DMX; RDM; W-DMX by wireless solution upgradeable; Master/slave function; Sound to light via Microphone
• Is in EUROLITE LED PC-Control 512 software already preprogrammed
• Flicker-free projection
• Effect: Strobe effect

Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	130 W
IP classification:	IP20
Power output:	1 x PowerCON (gray), mounting version
Fuse:	5 x 20 mm, T 3.15 A Fuse replaceable
Lamp type:	LED lamp
LED:	7 x high-power 17 W 6in1 HCL RGBALC (homogenous color mix)
Max. TILT movement:	Exact positioning (16 bit resolution) 270° Auto position correction (feedback)
Max. PAN movement:	Exact positioning (16 bit resolution) 540° Positioning switchable to 630° Auto position correction (feedback)
Flash rate:	1 - 18 Hz
Equipment:	Zoom motor-driven
DMX channels:	16; 19; 20; 33
DMX input:	1 x 3-pin XLR (M) mounting version
DMX output:	1 x 3-pin XLR (F) mounting version
Power connection:	Mains input PowerCON (blue), mounting version Power supply cord with safety plug
Cooling:	Temperature-controlled fan
Control:	Stand-alone; DMX; RDM; W-DMX by wireless solution upgradeable; Master/slave function; Sound to light via Microphone; EUROLITE LED PC-Control 512 software
Beam angle:	2 - 36°
Beam angle (1/2 peak):	2 - 15°
Beam angle (1/10 peak):	7 - 36°
Illuminance in Lux (lx):	Narrow R red 1m: 7036 lx, 3m: 1003 lx, 6m: 248 lx Narrow G green 1m: 14473 lx, 3m: 2193 lx, 6m: 548 lx Narrow B blue 1m: 2461 lx, 3m: 478 lx, 6m: 122 lx Narrow A amber 1m: 27460 lx, 3m: 4256 lx, 6m: 1066 lx Narrow Lime 1m: 44659 lx, 3m: 6773 lx, 6m: 1705 lx Narrow cyan 1m: 6274 lx, 3m: 1011 lx, 6m: 251 lx Narrow all 3m: 14976 lx, 6m: 3744 lx Wide R red 1m: 787 lx, 3m: 95 lx, 6m: 25 lx Wide G green 1m: 1716 lx, 3m: 215 lx, 6m: 58 lx Wide B blue 1m: 392 lx, 3m: 51 lx, 6m: 14 lx Wide A amber 1m: 3202 lx, 3m: 388 lx, 6m: 104 lx Wide Lime 1m: 4793 lx, 3m: 594 lx, 6m: 160 lx Wide cyan 1m: 839 lx, 3m: 103 lx, 6m: 28 lx Wide all 1m: 11196 lx, 3m: 1365 lx, 6m: 362 lx
Housing color:	Black
Dimension:	Width: 24.9 cm Depth: 17.9 cm Height: 34.7 cm
Weight:	7.30 kg
Legal specifications
Ecodesign regulation:	Yes
Special product:	Not designed for household room illumination
Purpose:	Show effect lighting

Licht - Moving-Lights - Moving-Head-Washer
Peso: 8.3
