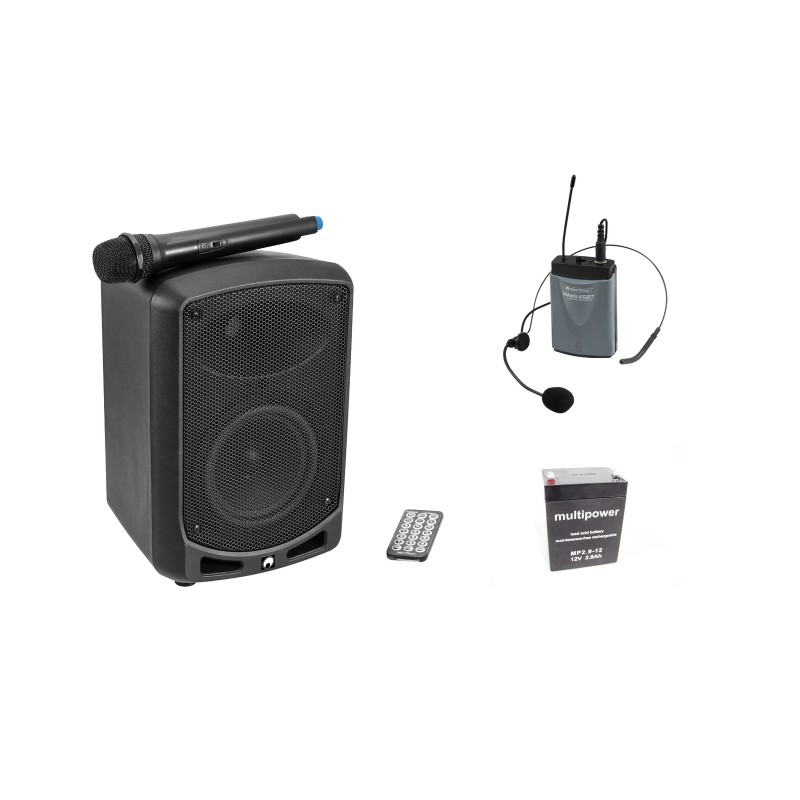

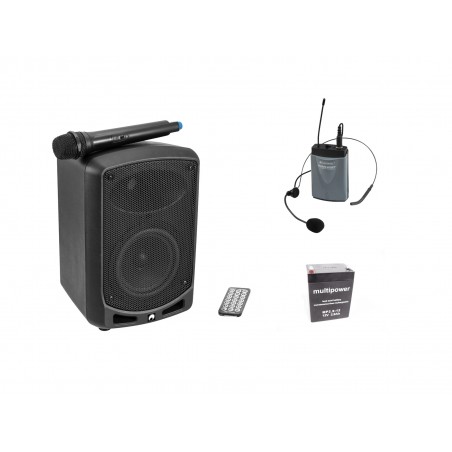

13107003 OMNITRONIC WAMS-65BT Wireless PA System
Portable 6.5" PA with wireless microphone, audio player, Bluetooth and 40 W peak power
Audio player
Microphone
Remote control
13107005 OMNITRONIC WAMS-65BT Bodypack Transmitter incl. Headset
Pocket transmitter with headset microphone for model WAMS-65BT
transmitter
| Weight: | 5.34 kg |
| 13107003 OMNITRONIC WAMS-65BT Wireless PA System | |
| Power supply: | 100-240 V AC, 50/60 Hz Or 12 V DC |
| Power consumption: | 60 W |
| Output power: | 40 W RMS |
| Frequency range: | 62 - 18000 Hz |
| THD: | <0.5 % at 1 kHz |
| Power connection: | Mains input IEC connector (M) mounting version Power supply cord with safety plug (provided) Battery/battery pack (not included) |
| Circuitry: | Class D |
| Control elements: | "ECHO" effect control, Audio player |
| Status LED: | Power, peak, Battery level indicator |
| Connections: | Input: 1 x line via stereo RCA Input: 1 x Microphone via 3-pin XLR Output: 1 x line via 6.3 mm plug (unbal.) |
| Input channels: | 1 x mono via XLR, channel control via Rotary knob 1 x stereo via RCA, channel control via Rotary knob |
| Frequency band: | UHF 863 - 865 MHz |
| Carrier frequency: | 865 MHz |
| Frequency selection: | Fixed frequencys |
| RF power output: | 10 mW |
| Speakers: | 1 x woofer (6.5") approx. 17 cm 1 x tweeter (1") approx 2,5 cm |
| Frequency stability: | ± 0.005 % |
| Type of speaker: | Compact cabinet speaker; Wireless PA system |
| Color: | Black |
| Weight: | 4.15 kg |
| Battery pack | |
| Battery pack type: | 1 x lead 12 V, 2900 mAh, |
| Battery pack: | Battery operation up to 4h Recharging time 4h |
| Audio player | |
| Control: | Bluetooth built-in; IR remote control included |
| Audio player: | USB + SD + Bluetooth |
| Format: | MP3, WAV |
| Frequency band: | 2.4 GHz |
| Available storage media: | USB devices/SD cards max. 32GB (FAT 32) |
| Range: | 10 m Bluetooth |
| Microphone | |
| Capsule type: | Dynamic |
| Polar pattern: | Cardioid |
| Battery: | 2 x Mignon (AA) (not included) |
| Power connection: | Battery/battery pack |
| Range: | 30 m |
| Switch: | On/off switch; Mute control |
| Material: | Plastic |
| Dimension: | Length: 26 cm Diameter: Ø 4 cm |
| Weight: | 0.115 kg |
| Remote control | |
| Power supply: | 3 V DC |
| Battery: | 1 x Button cell 3.0 V CR2025 lithium manganese built-in |
| Range: | 10 m |
| 13107005 OMNITRONIC WAMS-65BT Bodypack Transmitter incl. Headset | |
| Type: | Bodypack with microphone |
| THD: | <0.5 % at 1 kHz |
| Weight: | 0.10 kg |
| transmitter | |
| Battery: | 2 x Mignon (AA) (not included) |
| Frequency range: | 40 - 18000 Hz |
| S/N ratio: | >105 dB |
| Power connection: | Battery/battery pack (not included) |
| Connections: | Input: 1 x Microphone via 3.5 mm jack (mono) mounting version screwable |
| Carrier frequency: | 865 MHz |
| Frequency selection: | Fixed frequencys |
| Modulation: | F3F |
| RF power output: | 10 mW |
| Range: | 50 m with line of sight |
| Material: | Plastic |
| Color: | Black |
| Dimension: | Width: 6.4 cm Depth: 3.6 cm Height: 10 cm |
| Microphone | |
| Capsule type: | Condenser |
| Power connection: | Mains input Mini XLR (F) 3-pin |
| RF power output: | 10 mW |
