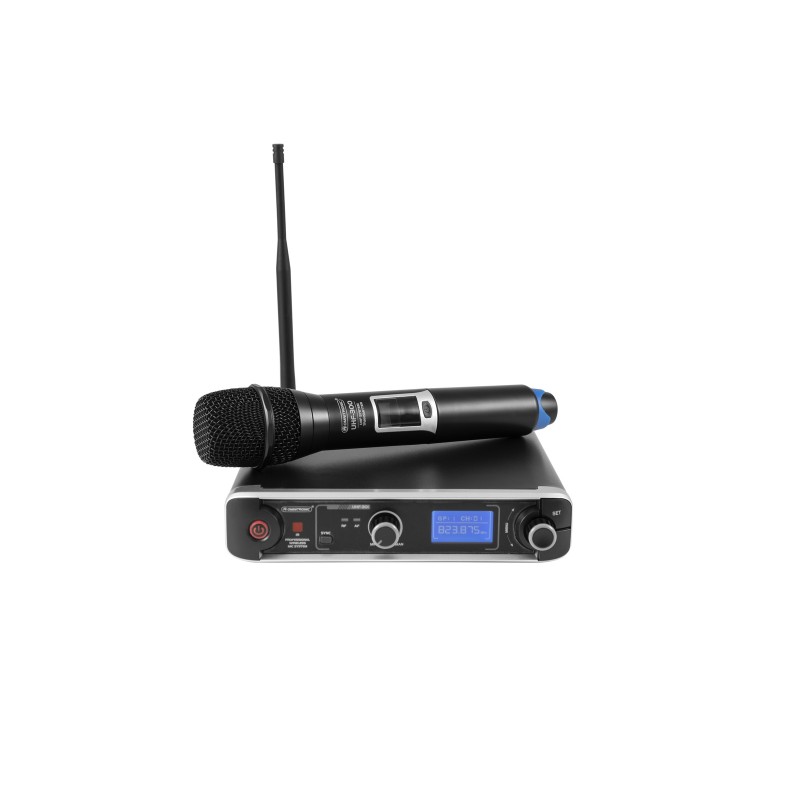

OMNITRONIC UHF-301 1-Channel Wireless Mic System 823-832/863-865MHz

Codice: 13063300 codice Ean: 4026397649802 MARCA: OMNITRONIC

1-channel UHF PLL microphone system

1-channel multifrequency receiver unit and hand-held microphone with UHF PLL technology
93 preset channels in 10 channel groups
Easy and error-free synchronization between receiver and transmitter via infrared signal
LCDs for group, frequency and channel
LEDs for carrier and audio signal
Volume control
Balanced XLR output
Unbalanced 6.3 mm jack
Jack cable included
Removable antenna (BNC connection)
Incl. mounting brackets for 483 mm rack installation
1 dynamic microphone with cardioid polar pattern and LCD for battery capacity and frequency
Matching pocket transmitter can be ordered separately
License-free and approved in large parts of the EU (please check on a country-by-country basis)

Receiver

Microphone

Type:	Wireless set
Weight:	1.51 kg
Receiver
Power supply:	100-240 V AC, 50/60 Hz 12 V DC 350 mA
Power consumption:	4 W
Number of channels:	1
S/N ratio:	>80 dB
Power connection:	Mains input Coaxial power connector (M) Power supply cord with AC adapter (provided)
Control elements:	Power switch, level control, encoder
Connections:	Output: 1 x Microphone via 6.3 mm plug (unbal.) Output: 1 x Microphone via 3-pin XLR
Frequency selection:	93 Switchable frequencys
Modulation:	FM
RF power output:	10 mW
Material:	Metal
Housing design:	Desktop console housing (19") 48.3 cm rack installation (provided) 1 U
Microphone
Type:	Transmitter
Power supply:	3 V DC
Capsule type:	Dynamic
Polar pattern:	Cardioid
Battery:	2 x Mignon (AA) (not included)
Frequency range:	50 - 18.000 Hz
THD:	<0.5 % at 1 kHz
Power connection:	Battery/battery pack
Frequency band:	UHF 863 - 865 MHz; UHF 823 - 832 MHz
Frequency stability:	± 0.001 %
Range:	60 m
Switch:	On/off switch
Material:	Plastic
Dimension:	Length: 25 cm Diameter: Ø 5.2 cm
Weight:	0.23 kg
