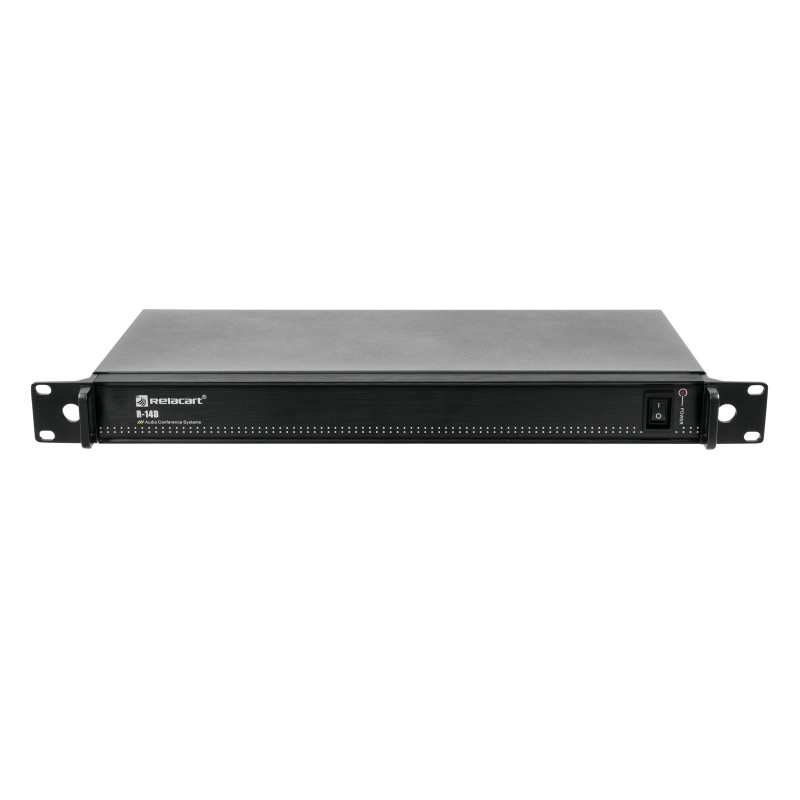

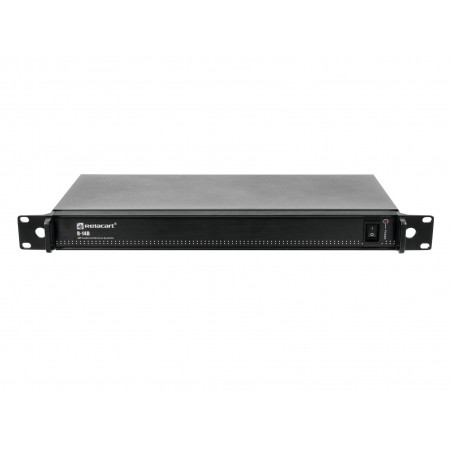

RELACART R-14D Antenna Distribution System

Codice: 13055194 codice Ean: 4026397566543 MARCA: RELACART

Antenna distributor (470 - 900 MHz)

Active antenna distributor for operating up to four true diversity UHF receivers on one pair of multi-antennas
Improves the interference safety and enlarges the range
Replaces the respective antennas and PSUs of the individual receivers
Up to five antenna distributors R-14D can be connected among each other for use of 16 microphones in total
Low-voltage outputs for supplying four UHF receivers, incl. matching DC-connection cables
Use in the entire UHF frequency range (470 - 900 MHz)
All antenna connections via BNC jacks, incl. 10 x BNC cable
Rack installation with 1 unit
(19") 48.3 cm rack installation

Type:	Antennas and distributors
Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	60 W
Power connection:	Mains input IEC connector (M) mounting version Power supply cord with safety plug (provided)
Impedance:	50 Ohm
Output voltage:	4 x 12 V DC
Connections:	Input: 2 x antenna via BNC (F) Output: 8 x antenna via BNC (F)
Frequency band:	UHF 470 - 900MHz
Switch:	On/off switch
Material:	Metal
Color:	Black
Housing design:	(19") 48.3 cm rack installation
Dimension:	Width: 48.3 cm Depth: 24.2 cm Height: 4.45 cm
Weight:	2.90 kg
