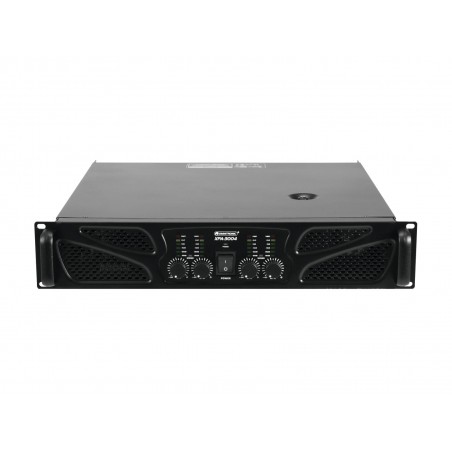

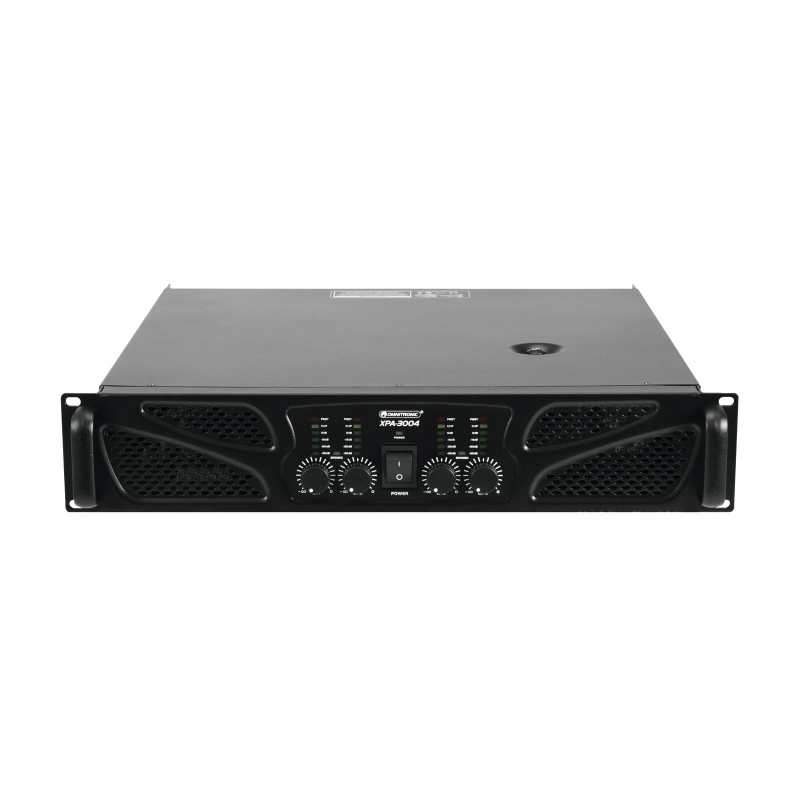

OMNITRONIC XPA-3004 Amplifier

421,99 €

Tasse escluse

Sconti sul volume

Quantità	Prezzo unitario	Salva
3	421,99 €	75,96 €

Quantità

Disponibile

Security policy

(edit with the Customer Reassurance module)

Delivery policy

(edit with the Customer Reassurance module)

Return policy

(edit with the Customer Reassurance module)

OMNITRONIC XPA-3004 Amplifier

Codice: 10451038 codice Ean: 4026397594959 MARCA: OMNITRONIC

4-channel PA amplifier with integrated limiter, 4 x 750 W / 4 ohms, 4 x 500 W / 8 ohms

3 operating modes can be selected (stereo, parallel or bridged)
Input sensitivity adjustable
Speaker switch-on delay
4 level controls
Each channel with LED for activated protective circuit (protect) and output meter with clip LED
Complete protection set against short-circuit, overheat, DC voltage, power on/off transients
Signal inputs via XLR connectors
Speaker outputs via lockable speaker jacks
Class H circuitry
P-Con power input
Rack installation with 2 units
The device is cooled by cooling fan
(19") 48.3 cm rack installation 2 U

Power supply:	230 V AC, 50 Hz
Power consumption:	700 W 1/8 power
Output power:	4 x 750 W RMS (4 ohms) 4 x 500 W RMS (8 ohms) 2 x 1500 W RMS bridged (8 ohms)
Frequency range:	20 - 20000 Hz
S/N ratio:	>100 dB
THD:	<0.5 % at 1 kHz
Power connection:	Mains input P-Con (blue), mounting version Power supply cord with safety plug (provided)
Cooling:	Cooling fan
Impedance:	Input 20 kOhm , bal. Input 10 kOhm , unbal.
Circuitry:	Class H
Slew rate:	>10 V/µs
Damping factor:	>200
Control elements:	Power switch, level control per channel, mode switch (stereo/parallel/bridged), Input sensitivity switch
Controls:	Short-circuit; overheat; DC voltage; power on/off transients; softstart; power on/off transient
Status LED:	Power, level meter, clip, bridged, protect
Connections:	Input: 4 x line via 3-pin XLR Output: 4 x speakers via speaker built-in socket (f) Output: 2 x Speaker (bridge) via speaker built-in socket (f)
Input sensitivity:	0.775 V; 1.4 V , switchable
Housing design:	(19") 48.3 cm rack installation 2 U
Dimension:	Width: 48.3 cm Depth: 41.5 cm Height: 8.9 cm
Weight:	17.20 kg
