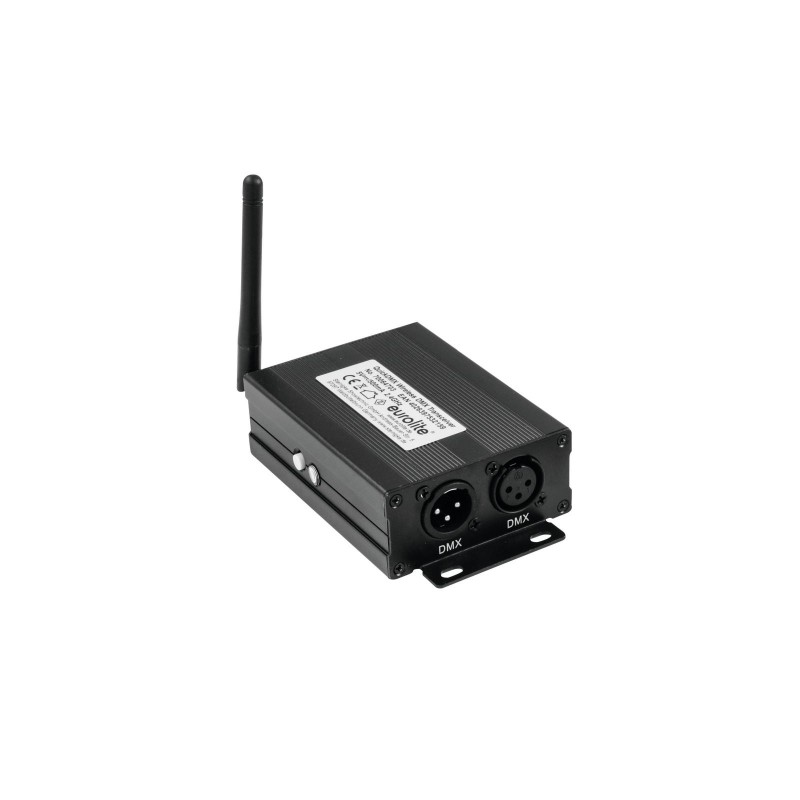

EUROLITE QuickDMX Wireless Transmitter/Receiver

Codice: 70064703 codice Ean: 4026397532159 MARCA: EUROLITE

Wireless DMX system 2.4 GHz

DMX input and output, 3-pin XLR
Auto-switching transceiver
Wireless DMX eliminates extensive cabling between DMX controller and the DMX-controlled units in lighting installations
Due to GFSK modulation with 78 channels, interference-free operation also alongside other QuickDMX transmitters and wireless devices in the 2.4 GHz band (e.g. Wi-Fi and Bluetooth)
Simultaneous operation of up to 6 transmitters, thus control of 3072 DMX channels (6 DMX universes) possible
1 to 512 QuickDMX receivers can be controlled by each transmitter
Plug & Play: quick and easy setup with one operating button for connecting/disconnecting QuickDMX units
LED indication for functions
Micro USB port; PSU included
2.4 GHz ISM band - license-free worldwide
Can receive and process up to 512 DMX channels
Can transmit up to 512 DMX channels
Controlling by DMX; QuickDMX built-in
Use a operating range up to 400m

Power supply:	100-240 V AC, 50/60 Hz 5 V DC 500 mA
IP classification:	IP20
DMX channels:	Input 512 Output 512
DMX input:	1 x 3-pin XLR (M) mounting version
DMX output:	1 x 3-pin XLR (F) mounting version
Power connection:	Mains input Micro USB (F) mounting version Power supply cord for USB A mains connection (provided)
Control:	DMX; QuickDMX built-in
Carrier frequency:	2.4 GHz
Modulation:	GFSK
Parallel mode:	Max. 6 transmitter
Range:	400 m
Color:	Black
Dimension:	Width: 21.2 cm Depth: 10 cm Height: 7.5 cm
Weight:	0.29 kg
