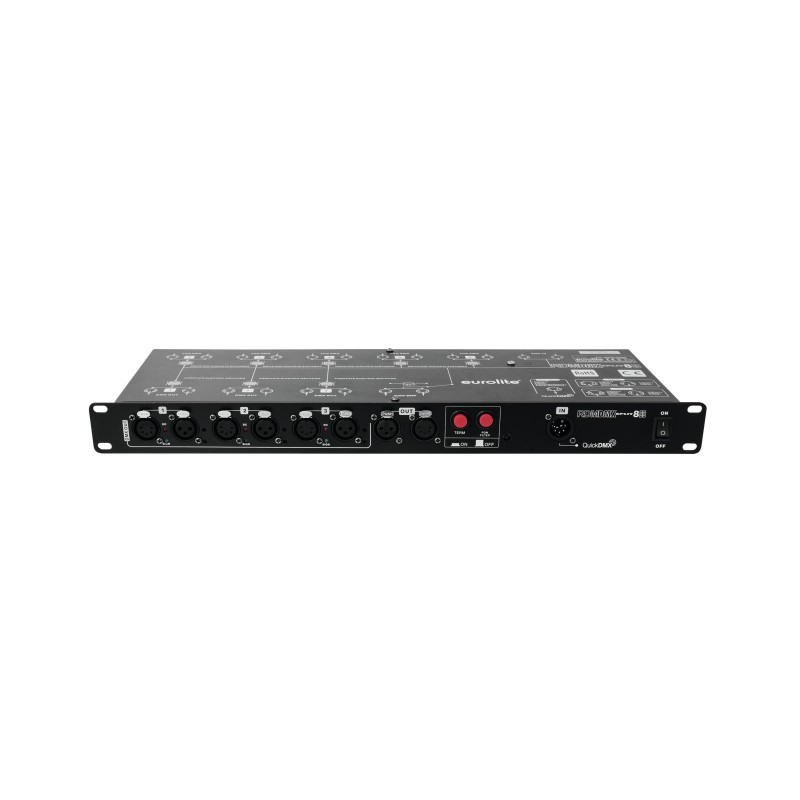

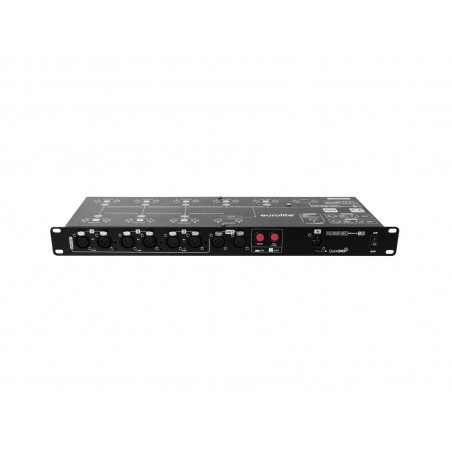

EUROLITE DMX Split 8X RDM Splitter

Codice: 70064826 codice Ean: 4026397554182 MARCA: EUROLITE

Splitter with 8 galvanically isolated outputs, 3/5-pin & QuickDMX XLR sockets

DMX splitter for splitting one DMX input signal to 8 DMX outputs
Connections: 1 x DMX input, 1 x DMX feed-through output, 8 x DMX output
Additional QuickDMX input for wireless reception of DMX signals
Supports RDM for bidirectional communication over the DMX line
Switchable filter mode allows all RDM data to be filtered out in order to prevent problems when using fixtures intolerant of RDM
Input and outputs XLR 3-pin and 5-pin each
Input and outputs galvanically isolated
Each DMX output with independent driver and status indicators
Input and outputs with a set of respective power supply and internal fuse
Switchable termination resistor
Rack mounting
Controlling by QuickDMX via 5-pin XLR (M) mounting version (optional); RDM

Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	5 W
DMX input:	1 x 3-pin XLR (M) mounting version 1 x 5-pin XLR (M) mounting version
DMX output:	8 x 3-pin XLR (F) mounting version Separate (galvanic) 8 x 5-pin XLR (F) mounting version Separate (galvanic) 1 x 5-pin XLR (F) mounting version Bypass 1 x 3-pin XLR (F) mounting version Bypass
Power connection:	Mains input IEC connector (M) mounting version Power supply cord with safety plug (provided)
Control:	QuickDMX via 5-pin XLR (M) mounting version (optional); RDM
Control elements:	Bypass/terminating resistor Schalter, power switch
Dimension:	Width: 48.3 cm Depth: 14.5 cm Height: 4.45 cm
Weight:	2.20 kg
