OMNITRONIC XDA-2402 Class D Amplifier

416,99 €

Tasse escluse

Sconti sul volume

Quantità	Prezzo unitario	Salva
3	416,99 €	75,06 €

Quantità

Disponibile

Security policy

(edit with the Customer Reassurance module)

Delivery policy

(edit with the Customer Reassurance module)

Return policy

(edit with the Customer Reassurance module)

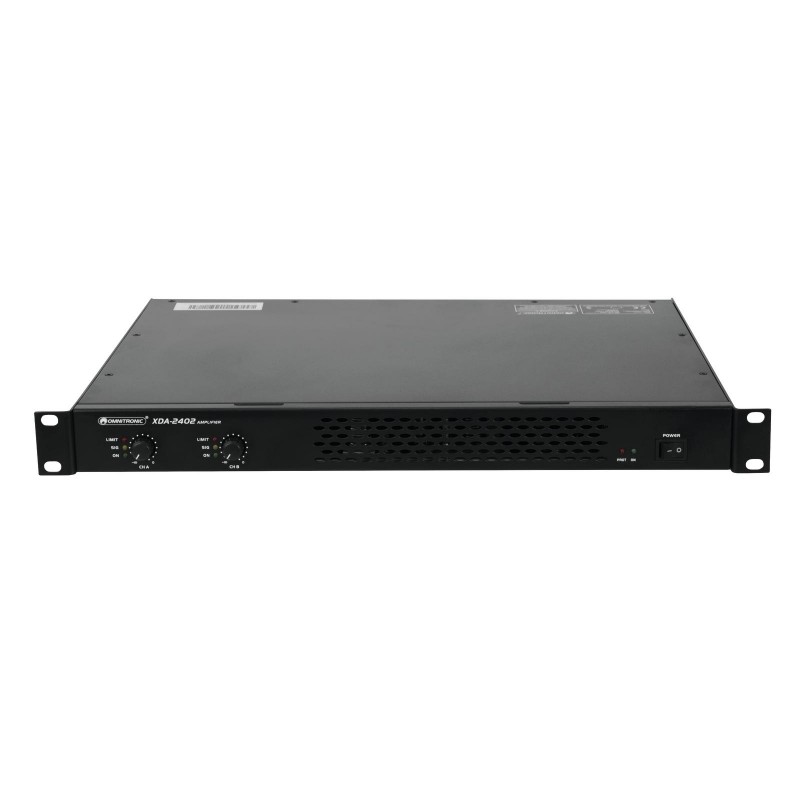

OMNITRONIC XDA-2402 Class D Amplifier

Codice: 10451636 codice Ean: 4026397580150 MARCA: OMNITRONIC

Stereo PA amplifier with SMPS, 2 x 1200 W / 4 ohms, 2 x 880 W / 8 ohms

Stereo PA amplifier with class D circuitry
Low weight and height due to integrated switch mode power supply
Speaker switch-on delay and auto limiters
2 level controls
LEDs for activated protective circuit, limiter, signal, and power
Complete protection set against short-circuit, overheat, DC voltage, power on/off transients, soft start
Ground lift switch against humming
Electronically balanced inputs via XLR mounting jacks with feed-through output
Speaker outputs via lockable speaker jacks
The device is cooled by cooling fan
(19") 48.3 cm rack installation 1 U

Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	465 W 1/8 power
Output power:	2 x 880 W RMS (8 ohms) 2 x 1200 W RMS (4 ohms)
Frequency range:	30 - 20000 Hz
S/N ratio:	>100 dB
THD:	<0.02 % at 1 kHz
Power connection:	Mains input P-Con (blue), mounting version Power supply cord with safety plug (provided)
Cooling:	Cooling fan
Impedance:	Input 20 kOhm , bal. Input 10 kOhm , unbal.
Circuitry:	Class D
Control elements:	Power switch, level control per channel, groundlift selector
Controls:	Short-circuit; overheat; DC voltage; power on/off transients; softstart; power on/off transient; limiter
Status LED:	Power, signal, limit, protect
Connections:	Input: 2 x line via 3-pin XLR Link: 2 x line via 3-pin XLR Output: 2 x speakers via speaker built-in socket (f)
Input sensitivity:	1.25 V
Housing design:	(19") 48.3 cm rack installation 1 U
Dimension:	Width: 48.3 cm Depth: 35.5 cm Height: 4.45 cm
Weight:	6.40 kg
