PSSO PRIME System Amplifier DSP

3.054,99 €

Tasse escluse

Sconti sul volume

Quantità	Prezzo unitario	Salva
3	3.054,99 €	549,90 €

Quantità

Disponibile

Security policy

(edit with the Customer Reassurance module)

Delivery policy

(edit with the Customer Reassurance module)

Return policy

(edit with the Customer Reassurance module)

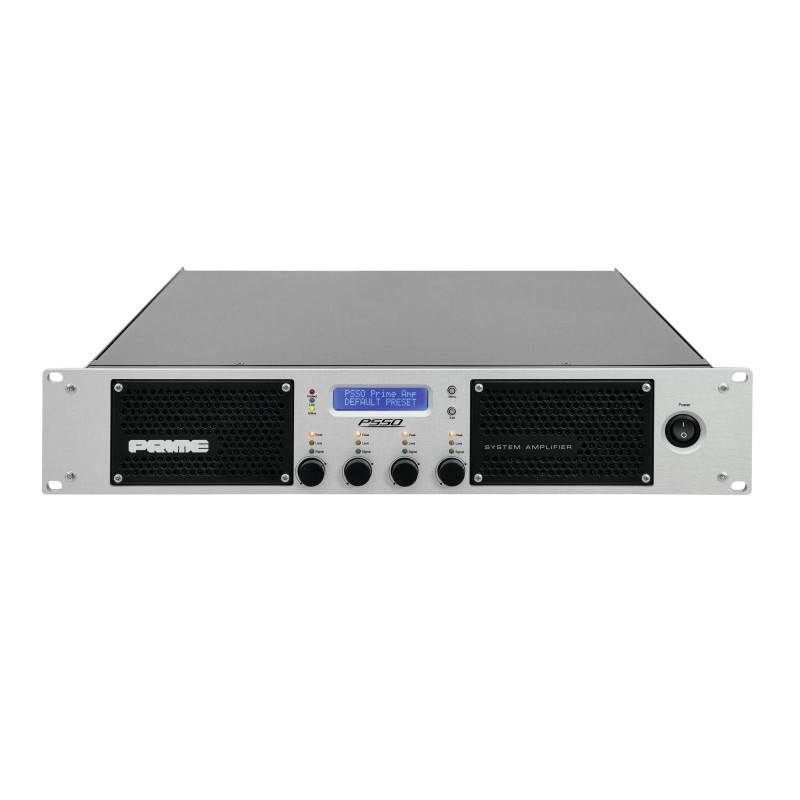

PSSO PRIME System Amplifier DSP

Codice: 10451701 codice Ean: 4026397545456 MARCA: PSSO

6 channel PA amp with SMPS, 2 x 2400 W, 4 x 800 W

6-channel PA amplifier with high-performance DSP, freely programmable
Sample frequency: 96 kHz and 64-bit technology
Premium components ensure excellent sound features
Efficient class D amplifier circuitry
2 Pascal amplifier modules
4 analog inputs and 2 digital AES/EBU interfaces (XLR)
4 analog link outputs (XLR)
2 Neutrik Speakon outputs
Neutrik Powercon mains input
Real-time remote control via built-in Ethernet LAN interface
User-friendly software for PC and Mac included
80 presets can be stored and activated
Manual control via encoder, LCD screen and buttons at the front panel
120 dB dynamic range
Flexible routing
10 parametric EQ
X-Over: Bessel, Linkwitz-Riley, Butterworth with 24 dB/octave
Delay
Limiter and noise gate
Phase reverse
Password protection
Low weight and height due to integrated switch mode power supply
Automatic power supply adaption between 100 and 240 volts without power selector
Intelligent mains fuse protection
Input current limiter
Protection against turn-on and turn-off transients
DC protection of outputs
Under and over voltage protection
High damping factor> 1000
Low distortion, THD+N < 0.05 %
Rugged steel chassis with anodized aluminum front panel
Rack installation with 2 units
Windows XP, Vista, 7, 8 and Mac OS X 10.5.8 and better
The device is cooled by temperature-controlled fan
(19") 48.3 cm rack installation 2 U

Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	920 W 1/8 power
Output power:	4 x 400 W RMS (8 ohms) 4 x 800 W RMS (4 ohms) 2 x 1500 W RMS (8 ohms) 2 x 2400 W RMS (4 ohms) 2 x 1600 W RMS bridged (8 ohms)
Frequency range:	20 - 40000 Hz
S/N ratio:	>120 dB
THD:	<0.05 % at 1 kHz
Network connection:	Protocol: ethernet TCP/IP via 1x RJ-45 Ethercon (F) mounting version
Power connection:	Mains input PowerCON (blue), mounting version Power supply cord with safety plug (provided)
Cooling:	Temperature-controlled fan
Gain:	32 dB
Circuitry:	Class D
Damping factor:	>1000
Control elements:	Power switch, encoder, exit, menü
Controls:	Power on/off transients; DC voltage; power on/off transient
Status LED:	Signal, limit, protect, peak
Connections:	Output: 2 x speakers via 8-pin speakON mounting version (F) Input: 4 x line via 3-pin XLR Link: 4 x line via 3-pin XLR
Housing design:	(19") 48.3 cm rack installation 2 U
Dimension:	Width: 48.3 cm Depth: 48.2 cm Height: 8.9 cm
Weight:	12.15 kg
