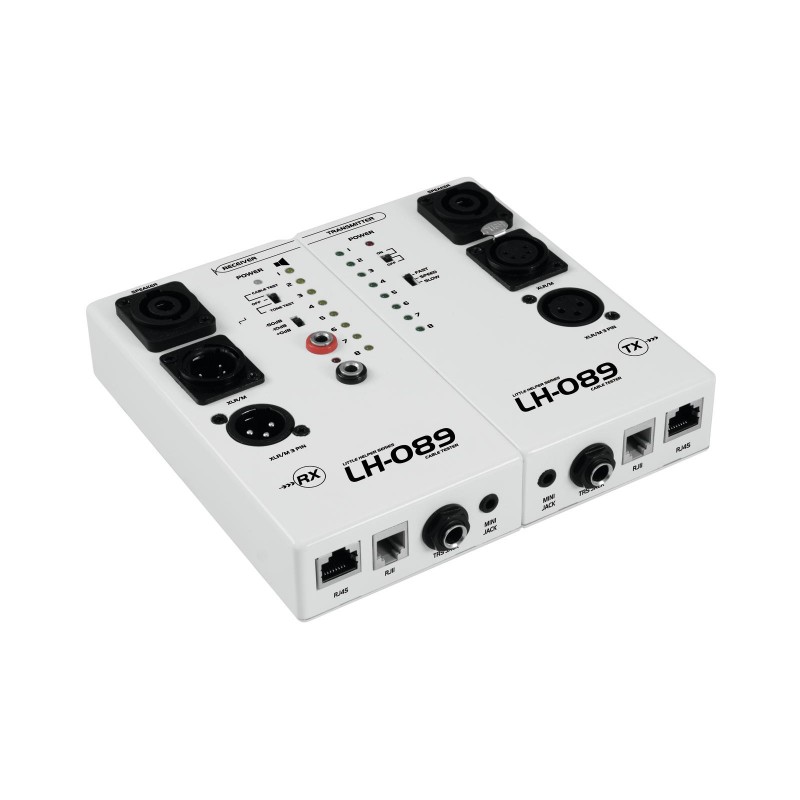

OMNITRONIC LH-089 Cable Tester System

Codice: 10355084        codice Ean: 4026397599312        MARCA:  OMNITRONIC

The LH-089 by Omnitronic is designed for testing a large variety of standard audio and data cables with ease. It is an indispensable helper for musicians, sound and stage technicians. Each pin of the connected cable is individually tested and the assignment is shown on a clearly arranged LED display. The continuity tester with visual and acoustic signals facilitates testing of all other types of connections. In addition, a test tone generator is integrated. To test long cables installed through walls or ceilings can be tested, the chassis can be split into a transmitter and receiver part.

Tester (separable) for XLR, jack, DIN, RCA, Speaker, RJ45/11, BNC, banana

• Multi-format cable tester consisting of sender and receiver module
• Indispensable helper for musicians, sound and stage technicians
• Split chassis design allows testing long cables installed through walls or ceilings
• Tests XLR (3-pin/5-pin), jack (3.5 mm/6.3 mm), DIN (3-pin/5-pin), RCA, Speaker (4-pin), RJ45, RJ11, BNC, banana connectors
• Continuity test via two test leads included in the delivery
• Audible and visible signal indication
• Three test speeds (fast/medium/slow)
• Test tone generator with adjustable amplitude (+0 dB, -10 dB, -50 dB)
• Operation via 2 x 9 V battery (not included)

Battery:	2 x 9.0 V E block (not included)
Power connection:	Battery/battery pack
Connections:	Via 3.5 mm jack (stereo) mounting version Via 6.3 mm jack socket (stereo) mounting version Via 3-pin XLR Via 5-pin XLR Via speaker built-in socket (f) Via RCA (f) mounting version Via 5-pin DIN (F) mounting version Via RJ11 (F) mounting version Via RJ45 (F) mounting version Via BNC (F)
Color:	White
Dimension:	Width: 16.5 cm Depth: 17.5 cm Height: 4.5 cm
Weight:	0.51 kg

Hardware - Montage e Tools - Messgeräte
Peso: 0.75
