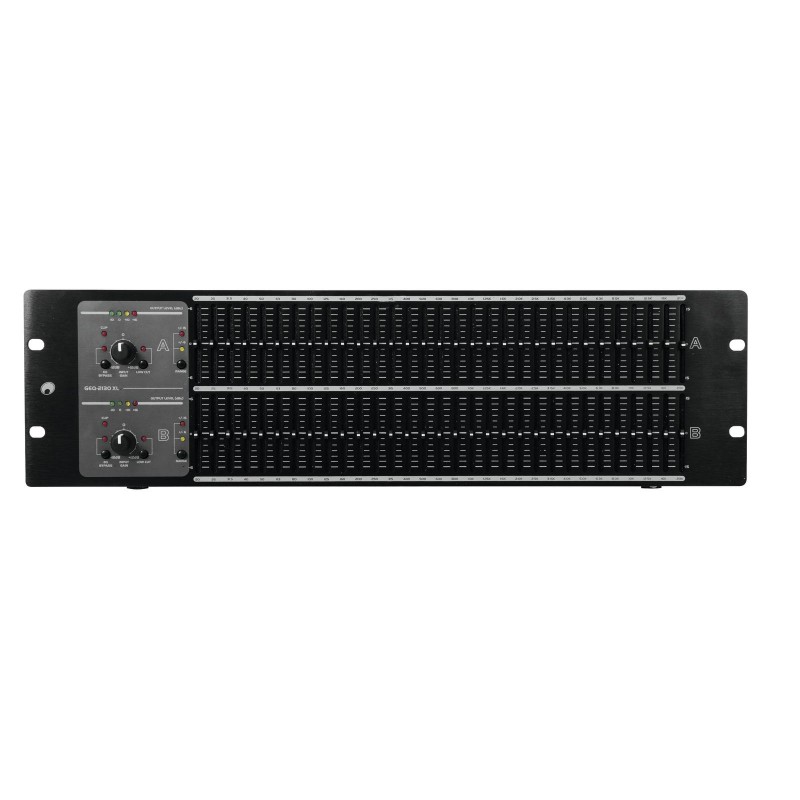

OMNITRONIC GEQ-2310XL Equalizer 2x31-Band

Codice: 10355536 codice Ean: 4026397522808 MARCA: OMNITRONIC

2 x 31-band equalizer with XL faders

2-channel version, 2 x 31 frequency controls with 1/3 octave steps
XL (50 mm) sliding frequency controls with center click
EQ range switchable ±6 dB to ±15 dB
Bessel low-cut filter (18 dB/octave 40 Hz)
Separate input gain control per channel
Bypass switch allows instant comparison of the original sound with the equalized sound
4-fold LED level meter with clip indicator
Inputs and outputs via 6.3 mm jack sockets, XLR sockets and screw terminals
Rack installation, 3 U
(19") 48.3 cm rack installation 3 U

Power supply:	230 V AC, 50 Hz
Power consumption:	20 W
Frequency range:	20 - 20000 Hz
S/N ratio:	>95 dB
THD:	<0.01 % at 1 kHz
Power connection:	Mains input IEC connector (M) mounting version Power supply cord with safety plug (provided)
Impedance:	Input 40 kOhm , bal. Input 20 kOhm , unbal. Output 120 kOhm , bal. Output 60 kOhm , unbal.
Gain:	± 12 dB
Filter:	Low cut: 40 Hz hz
Equalizer:	Master: 2 x Graphic equalizer 31-band Centre frequency: ISO standard, 1/3 octave (terzband), 20/25/31,5/40/50/63/80/100/125/160/200/250/315/400/500/ 630/800 Hz, 1/1,25/1,6/2/2,5/3,15/4/5/6,3/8/10/12,5/16/20 kHz
Control range:	±6dB, ±15dB, switchable
Crosstalk:	>80 dB
Connections:	Input: 2 x line via 3-pin XLR Input: 2 x line via 6.3 mm plug (unbal.) Input: line via screw terminal Output: 2 x line via 3-pin XLR Output: 2 x line via 6.3 mm plug (unbal.) Output: line via screw terminal
Max. level:	Input: +21 dBu Output: +24 dBu, bal. Output: +21 dBu, unbal.
Housing design:	(19") 48.3 cm rack installation 3 U
Dimension:	Width: 48.3 cm Depth: 22.3 cm Height: 13.35 cm
Weight:	4.85 kg
