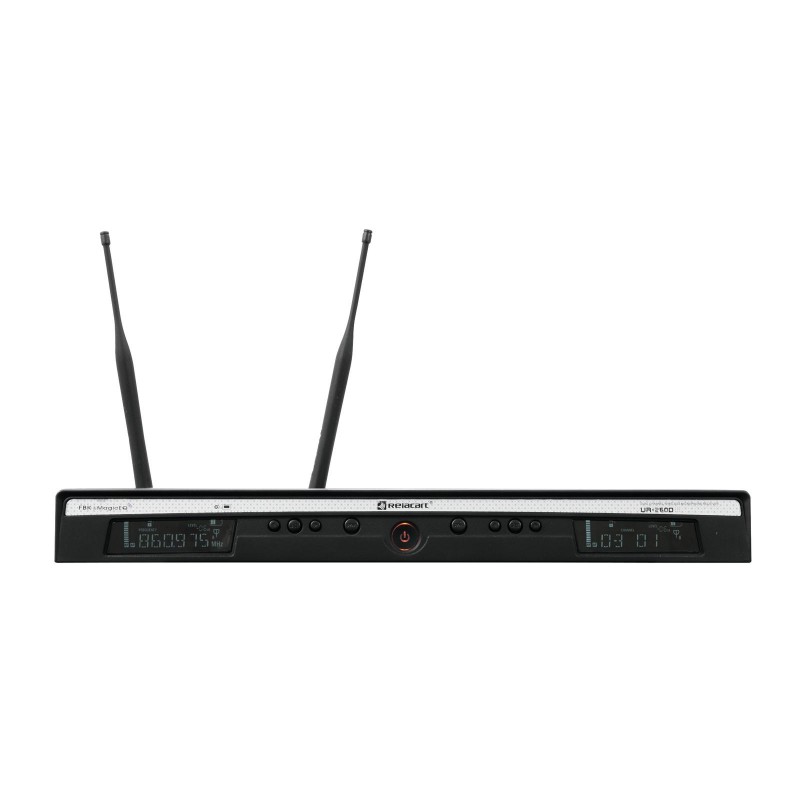

RELACART UR-260D 2-channel UHF Receiver

Codice: 13055210        codice Ean: 4026397537048        MARCA:  RELACART

The UR-260D is a dual-channel true diversity UHF system with a host of innovative features. In addition to automatic frequency scanning for interference-free transmission, one also finds an intelligent feedback suppression system. With MagicEQ, various sound characteristics of world-known microphone capsules can be emulated or created yourself. The presets can be changed from a computer via software - even during live operation.

True diversity wireless receiver with DSP for microphone modeling and PC software

• 2-channel multifrequency wireless receiver with 24-bit processor for high-end audio quality
• Integrated MagicEQ enables amazing microphone modeling of hand-held microphones
• Choose from 7 presets based on popular microphone models (e835, beta58, e935, D5, SM57, N/D767a, SM58) and 3 user-definable presets
• Integrated Feedback Killer effectively eliminates feedback, providing maximum gain and increased clarity on every microphone
• DSP programming and management via Ethernet port and intuitively operated PC software
• High-quality true diversity reception
• 2 license-free frequency ranges: 823-832 MHz (Duplex Gap) and 863-865 MHz
• 10 groups with 90 fixed frequencies within 11 MHz switching bandwidth
• Parallel operation of up to 9 wireless channels is possible without any interference
• Pilot tone technology (PLL) and noise squelch for interference-free operation
• Automatic frequency scan (AFS) finds interface-free channels
• Infrared interface for easy and error-free channel transfer to transmitters via infrared signal
• LCDs for battery status of the transmitters, antenna A/B, RF reception level, AF audio level and frequency
• Multiple units can be linked with network cables
• Lock function avoids accidental changing of settings
• XLR and 6.3 mm jack output
• 2 detachable BNC antennas allow for use with the R-14D antenna divider
• Matching hand-held microphone (UR-260D) optionally available
• Matching pocket transmitter UT-222 optionally available
• Delivery includes jack cable and power unit
• Durable metal housing
• 483 mm rack installation possible with supplied mounting brackets
• License-free and approved in large parts of the EU (please check Duplex Gap on a country-by-country basis)
• Digital signal processor 96kHz, 24 bit
• Use a operating range up to 80m
• The device can be connected via RJ45 (F) mounting version to the PC in connection with Relacart Magic EQ software
• Desktop console housing 1 U; (19") 48.3 cm rack installation (provided)

Type:	Receiver
Power supply:	100-240 V AC, 50/60 Hz 12 V DC 1 A
Power consumption:	12 W
Number of channels:	2
Frequency range:	45 - 18000 Hz
S/N ratio:	>100 dB
Network connection:	Protocol: ethernet TCP/IP via 1x RJ45 (F) mounting version
DSP:	Digital signal processor 96kHz, 24 bit
Power connection:	Mains input Coaxial power connector (M) Power supply cord with AC adapter (provided)
Connections:	2 x antenna via BNC (F) 8 V Output: 2 x Microphone via 3-pin XLR Output: 2 x Microphone via 6.3 mm plug (unbal.)
Frequency band:	UHF 863 - 865 MHz; UHF 823 - 832 MHz
Frequency selection:	90 Switchable frequencys In 10 groups with up to 10 preset frequencies each
Modulation:	FM
Frequency stability:	± 0.0005 %
Range:	80 m
Switching bandwidth:	11 MHz
Switch:	On/off switch
Diversity:	True diversity
Material:	Metal
PC connect:	Relacart Magic EQ software via RJ45 (F) mounting version
Housing design:	Desktop console housing 1 U (19") 48.3 cm rack installation (provided)
Dimension:	Width: 41 cm Depth: 22.5 cm Height: 4.3 cm
Weight:	2.23 kg
