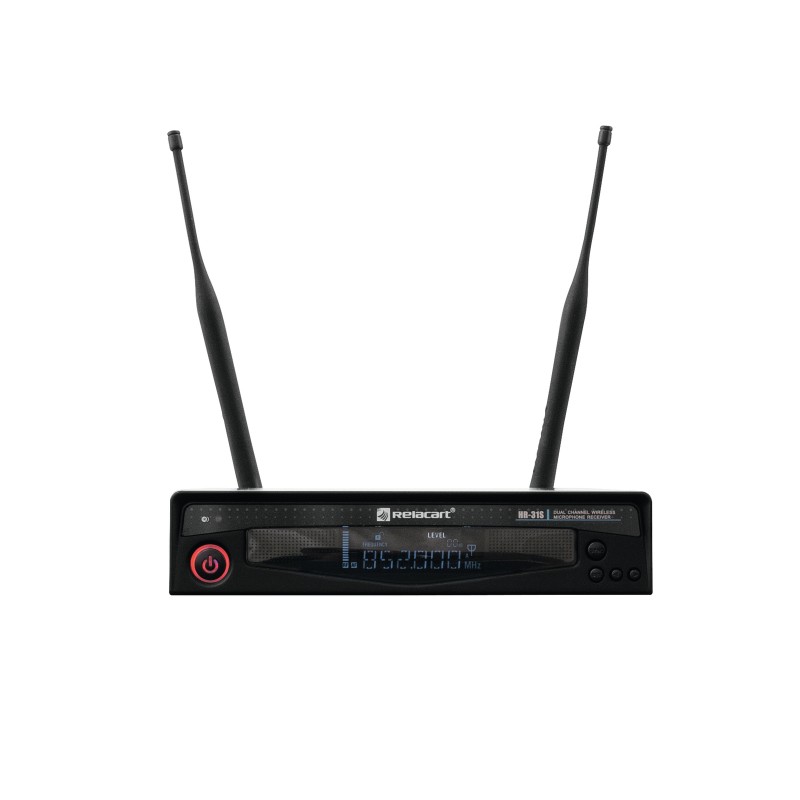

RELACART HR-31S 1-Channel True Diversity Receiver

Codice: 13055200        codice Ean: 4026397537000        MARCA:  RELACART

The HR-31S is a premium true diversity system in the UHF spectrum that can fully exploit its strengths, in particular in connection with the RWW software. The transmission takes place either in the professional switchable band 731-790 MHz or in the license-free range 823-832 MHz. The other features also convince: quick setup via infrared andan exceptionally long service life of the transmitter from up to 15 hours on just one set of batteries.

True diversity wireless receiver with PC control

• Multifrequency wireless receiver with high-quality true diversity reception
• Real-time monitoring and data management using RWW PC software
• 2 license-free frequency ranges: 731-790 MHz (10 EU countries) and 823-832 MHz (14 EU countries)
• 731-790 MHz (requires license in Germany) is lockable and offers 244 fixed frequencies (10 frequency banks with up to 25 frequencies each)
• 823-832 MHz (license-free in Germany) offers 48 fixed frequencies (8 frequency banks with up to 7 frequencies each)
• 292 frequencies manually adjustable in steps of 25 kHz within 68 MHz switching bandwidth
• Parallel operation of up to 16 systems is possible without any interference
• Pilot tone technology (PLL) and noise squelch for interference-free operation
• Automatic frequency scan (AFS) finds interface-free channels
• Infrared interface for easy and error-free channel transfer to transmitters via infrared signal
• LCD for battery status of the transmitter, antenna A/B, RF reception level, AF audio level and frequency
• Serial RS-485 interface for connecting a computer with the optional USB/RS-485 converter U485
• Up to 32 units can be linked with network cables
• Lock function avoids accidental changing of settings
• XLR and 6.3 mm jack output
• 2 detachable BNC antennas allow for use with the R-14D antenna divider
• Matching transmitters optionally available: hand-held microphone (HR-31S), pocket transmitter (T-30)
• Delivery includes practical transport bag with jack cable and power unit
• License-free and approved in large parts of the EU (please check on a country-by-country basis)
• Use a operating range up to 80m with line of sight
• The device can be connected via RJ14 (F) mounting version to the PC in connection with Relacart RWW software and the Dongle (optional)
• Desktop console housing 1 U; (19") 48.3 cm rack installation (provided)

Type:	Receiver
Power supply:	100-240 V AC, 50/60 Hz 12 V DC
Power consumption:	3.5 W
Number of channels:	1
Frequency range:	45 - 18000 Hz
S/N ratio:	>108 dB
Power connection:	Mains input Coaxial power connector (M) Power supply cord with AC adapter (provided)
Display type:	Monochrome LCD display
Connections:	2 x antenna via BNC (F) 8 V Output: 1 x line via 3-pin XLR Output: 1 x line via 6.3 mm jack socket (stereo) mounting version Link: 2 x via RJ14 (F) mounting version
Frequency band:	UHF 823 - 832 MHz; UHF 731 - 790 MHz
Frequency selection:	292 Switchable frequencys In 10 groups with up to 25 preset frequencies each and In 8 groups with up to 7 preset frequencies each
Modulation:	FM
Frequency stability:	± 0.0005 %
Range:	80 m with line of sight
Switching bandwidth:	68 MHz
Switch:	On/off switch
Diversity:	True diversity
Material:	Metal
PC connect:	Relacart RWW software with Dongle (optional) via RJ14 (F) mounting version
Housing design:	Desktop console housing 1 U (19") 48.3 cm rack installation (provided)
Dimension:	Width: 20 cm Depth: 26 cm Height: 4.3 cm
Weight:	1.89 kg
