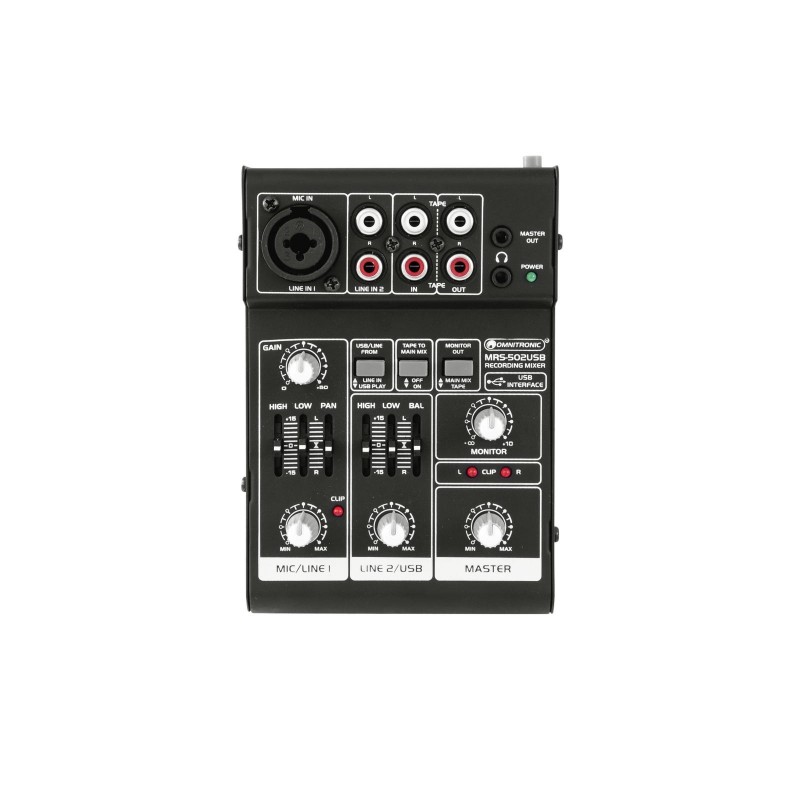

Miniature audio mixer with USB interface
Mixer
| Power consumption: | 2.50 W |
| Frequency range: | 20 - 20000 Hz |
| S/N ratio: | >81 dB |
| THD: | <0.05 % at 1 kHz |
| Phantom power: | 20 V DC |
| Control elements: | Power switch, source selector |
| Status LED: | Clip, power |
| Connections: | Input: 1 x Microphone via 3-pin XLR/6.35mm jack (F) combination socket (mounting version) Input: 1 x line via stereo RCA 0.15 V Input: 1 x line via stereo RCA 0.42 V Output: 1 x line via stereo RCA 2 V Output: 1 x line via 3.5 mm jack (stereo) mounting version 6 V Output: 1 x headphones via 3.5 mm jack (stereo) mounting version 2 V |
| Chanals: | Microphon chanal: 1 x mono via XLR or jack, channel control via Rotary knob, 2-band tone control EQ 80Hz/12kHz, gain control, panoramacontol, Input chanel: 1 x stereo with Line-USB switch via RCA or USB, channel control via Rotary knob, 2-band tone control EQ 80Hz/12kHz, balancecontrol, Master output: 1 x stereo via Plug 6,3mm/3,5mm (Jack), channel control via Rotary knob Headphones output: 1 x stereo via Plug 6,3mm/3,5mm (Jack), channel control via Rotary knob |
| USB port: | USB 2.0, Typ B |
| Dimension: | Width: 10.3 cm Depth: 14.8 cm Height: 4.7 cm |
| Weight: | 0.53 kg |
| Mixer | |
| Power supply: | 5 V DC 0.5 A |
| Power connection: | Mains input USB, type B Power supply cord with AC adapter (provided) |
| Housing color: | Black |
| Material: | Metal |
| Housing design: | Desktop console housing |
| External mains adapter | |
| Power supply: | 100-240 V AC, 50/60 Hz |
