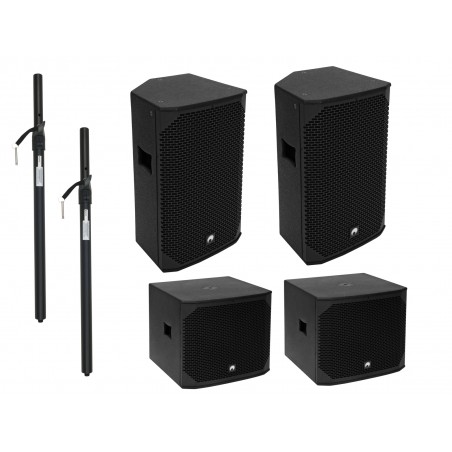

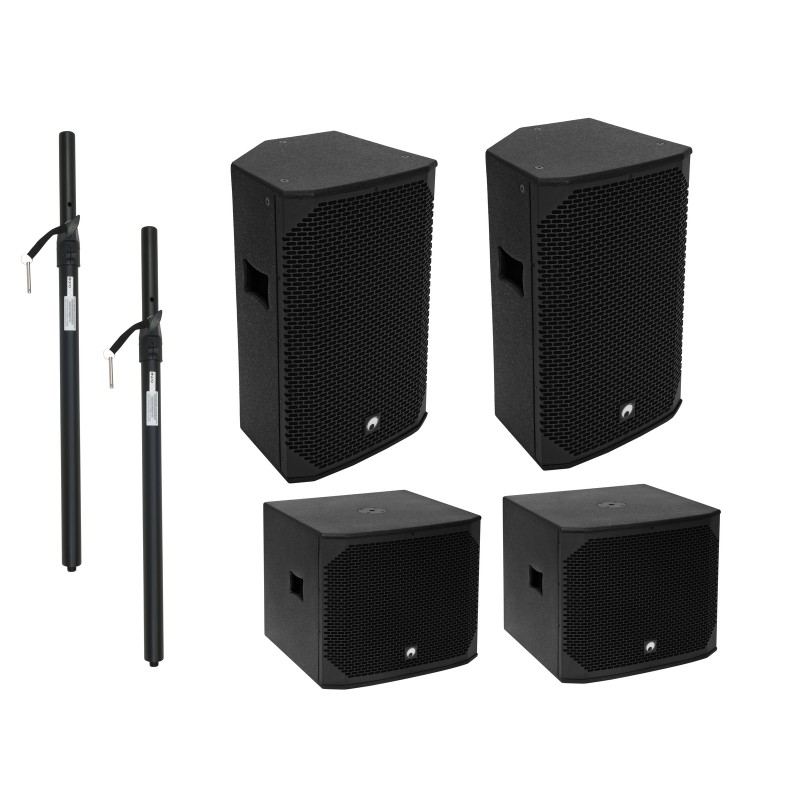

OMNITRONIC PA Set AZX active L

1.325,99 €

Tasse escluse

Sconti sul volume

Quantità	Prezzo unitario	Salva
3	1.325,99 €	238,68 €

Quantità

Disponibile

Security policy

(edit with the Customer Reassurance module)

Delivery policy

(edit with the Customer Reassurance module)

Return policy

(edit with the Customer Reassurance module)

Descrizione
Dettagli del prodotto

OMNITRONIC PA Set AZX active L

Codice: 20000529 codice Ean: MARCA: OMNITRONIC

11039046 OMNITRONIC AZX-118A PA Subwoofer active 400W

Active 18" PA bassreflex subwoofer, 400 W

46 cm (18") bass speaker with 76 mm voice coil
Class D amplifier with 400 W
XLR inputs and parallel outputs L/R
XLR output L/R with high-pass filter
Adjustable crossover frequency 80-200 Hz
Phase reversal switch
Limiter for overload protection
Limit, signal and power LED
M20 metal flange for top speakers
Carrying handles
Housing made of 15 mm MDF
Scratch-resistant lacquer surface
Impact-resistant steel grille with acoustic foam

11039034 OMNITRONIC AZX-215A 2-way top active 350W

Active speaker with 15" woofer, 1.75" titanium driver, LF 300 W RMS, HF 50 W RMS

2-way bassreflex enclosure with 38 cm woofer and 4.5 cm titanium driver
Master control with 2-band EQ
HF adjustment -4 dB, -2 dB, 0 dB
Limiter for overload protection
Limit, signal and power LED
Housing made of 15 mm MDF
Scratch-resistant lacquer surface
Carrying handles
Impact-resistant steel grille with acoustic foam
M10 threaded inserts for suspended installation
Dual flange with 0° and 5° tilt angle enables flexible positioning
Applications: standing, as monitor, on a subwoofer or speaker stand, suspended

60004558 OMNITRONIC Distance Tube Subwoofer/Satellite M20

Variable distance tube

Connecting tube for satellite systems
Locking screw and bolt
Powder-coated steel version
Thread: M20 thread

Weight:	120.24 kg
11039046 OMNITRONIC AZX-118A PA Subwoofer active 400W
Power supply:	230 V AC, 50 Hz
Power consumption:	650 W
Rated power:	400 W RMS
Frequency range:	40 - 250 Hz
Sensitivity:	95 dB (1W/1m)
Power connection:	Mains input IEC connector (M) mounting version Power supply cord with safety plug (provided)
Crossover frequency:	80-200 Hz
Attachment system:	M20 thread
Circuitry:	Class D
Connections:	Input: 2 x line via 3-pin XLR Output: 2 x line via 3-pin XLR Output: 2 x high-pass via 3-pin XLR
Speakers:	1 x woofer (18") approx 45 cm
Type of speaker:	Subwoofer
Type:	Vented
Material:	MDF (Medium-density fibreboard)
Dimension:	Width: 66.5 cm Depth: 66.5 cm
Weight:	33.65 kg
11039034 OMNITRONIC AZX-215A 2-way top active 350W
Power supply:	230 V AC, 50 Hz
Power consumption:	650 W
Rated power:	300 W RMS LF; 50 W RMS HF
Frequency range:	50 - 20000 Hz
Sensitivity:	95 dB (1W/1m)
Power connection:	Mains input IEC connector (M) mounting version Power supply cord with safety plug (provided)
Equalizer:	Master: 1 x 2-band tone control
Attachment system:	Bead Ø 35mm variable tilt
Circuitry:	Class D Biamp
Connections:	Input: 1 x via 3-pin XLR/6.35mm jack (F) combination socket (mounting version) Output: 1 x line via 3-pin XLR
Input channels:	1 x mono with Mic-line switch via 3-pin XLR/6.35mm jack (F) combination socket (mounting version), channel control via Rotary knob
Speakers:	Woofer (15") approx 38 cm with ferrit magnet Voice coil lows (3") approx. 8 cm Voice coil compression tweeter highs (1.75") approx 4.5 cm
Type of speaker:	Compact cabinet speaker
Material:	MDF (Medium-density fibreboard)
Dimension:	Width: 48.5 cm Depth: 48 cm Height: 75 cm
Weight:	25.45 kg
60004558 OMNITRONIC Distance Tube Subwoofer/Satellite M20
Maximum carrying capacity:	30 kg
Tube diameter sector:	41 - 35 mm
Height:	Maximum: 1.35 m Minimum: 0.75 m
Attachment system:	Ø 35mm
Type (general stands):	Distance tube
Color:	Black
Thread:	M20 thread
Weight:	1.02 kg
