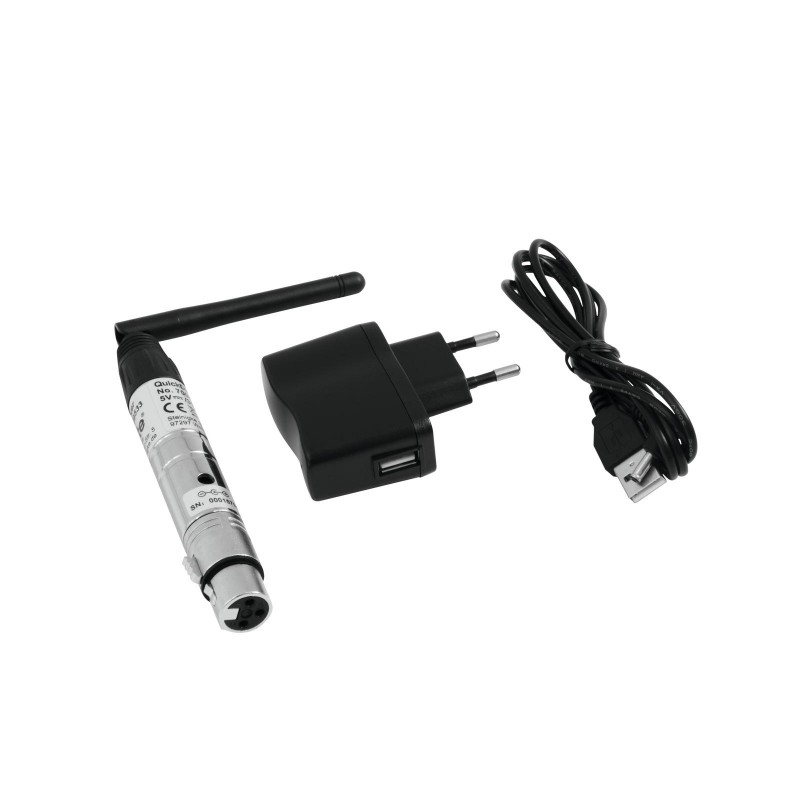

EUROLITE QuickDMX Wireless Receiver

Codice: 70064701        codice Ean: 4026397509533        MARCA:  EUROLITE

Compact DMX Wireless System 2.4 GHzThe Eurolite QuickDMX transmitter and receiver is used for wireless transmission of DMX512 signals. The complete technology is integrated in an extended 3-pole XLR connector (female) with a rotatable antenna. The device is constructed as a transceiver, so it can be used as any transmitter and receiver. The use of this device eliminates the necessity of time-consuming cabling between the DMX lighting control unit and the DMX-controlled devices.Due to the GFSK technology (Gaussian Frequency Shift Keying), interference-free operation is also possible besides other wireless Bluetooth and WiFi devices.The range is up to 400 meters with visual contact.Setup is very easy via Plug & Play with a button for connecting and disconnecting QuickDMX receivers.

Compact wireless DMX receiver 2.4 GHz

• User-friendly 3-pin XLR plug (female) with swivel antenna
• Wireless DMX eliminates extensive cabling between DMX controller and the DMX-controlled units in lighting installations
• Due to GFSK modulation with 78 channels, interference-free operation also alongside other QuickDMX receivers and wireless devices in the 2.4 GHz band (e.g. Wi-Fi and Bluetooth)
• 1 to 512 QuickDMX receivers can be controlled by each transmitter
• Plug & Play: quick and easy setup with one operating button for connecting/disconnecting QuickDMX receivers
• LED indication for functions
• Transceiver, to be used as transmitter or receiver
• Powered via included PSU
• 2.4 GHz ISM band - license-free worldwide
• Can receive and process up to 512 DMX channels
• Controlling by DMX; QuickDMX built-in
• Use a operating range up to 400m

Power supply:	100-240 V AC, 50/60 Hz
IP classification:	IP20
DMX channels:	Input 512
DMX output:	1 x 3-pin XLR (F)
Power connection:	Mains input Coaxial power connector (M) Power supply cord with AC adapter (provided)
Control:	DMX; QuickDMX built-in
Carrier frequency:	2.4 GHz
Modulation:	GFSK
Parallel mode:	Max. 6 transmitter
Range:	400 m
Color:	Silver
Dimension:	Length: 21.2 cm Diameter: Ø 1.8 cm
Weight:	0.16 kg

Licht - Lichtsteuerung - Wireless DMX
Peso: 0.23
