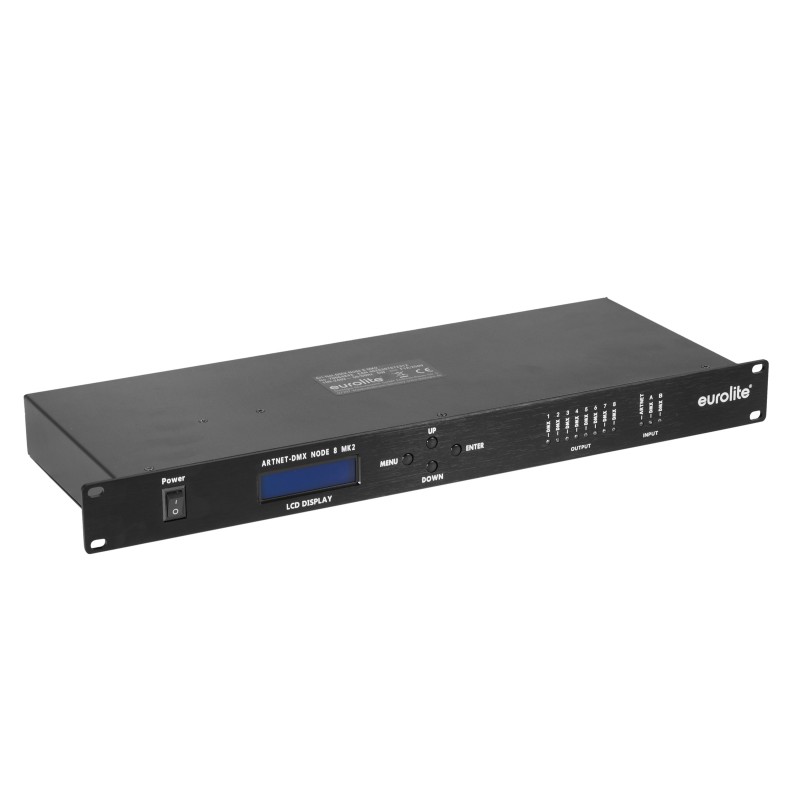

EUROLITE Art-Net/DMX Node 8 MK2

Codice: 70064843 codice Ean: 4026397672312 MARCA: EUROLITE

Art-Net interface distributes 8 universes to XLR

Distributes Art-Net data to 8 DMX512 universes (4096 channels)
Parallel DMX input possible (1024 channels)
8 optically isolated XLR plugs (3-pin) for DMX output
2 XLR jacks (3-pin) for DMX input
Variable data routing capabilities for all DMX outputs
2 x Ethernet in/through port
Serial connection possible
User-friendly configuration directly at the front panel via 4 operating buttons and alphanumeric LCD screen (2 x 16 characters)
LED indication for functions
Splitter operation possible
Rack installation 1 U
Controlling by ArtNet
The device can be connected via RJ45 (F) mounting version to the PC
(19") 48.3 cm rack installation

Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	5 W
DMX input:	2 x 3-pin XLR (M) mounting version
DMX output:	8 x 3-pin XLR (F) mounting version
Network connection:	Protocol: ArtNet 3 via 2x RJ45 (F) mounting version
Power connection:	Mains input P-Con (blue), mounting version Power supply cord with safety plug (provided)
Control:	ArtNet
PC connect:	Via RJ45 (F) mounting version
Housing design:	(19") 48.3 cm rack installation
Dimension:	Width: 48.3 cm Depth: 17.5 cm Height: 4.45 cm
Weight:	2.40 kg
