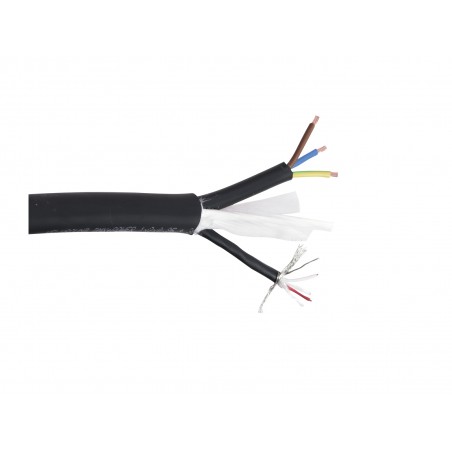

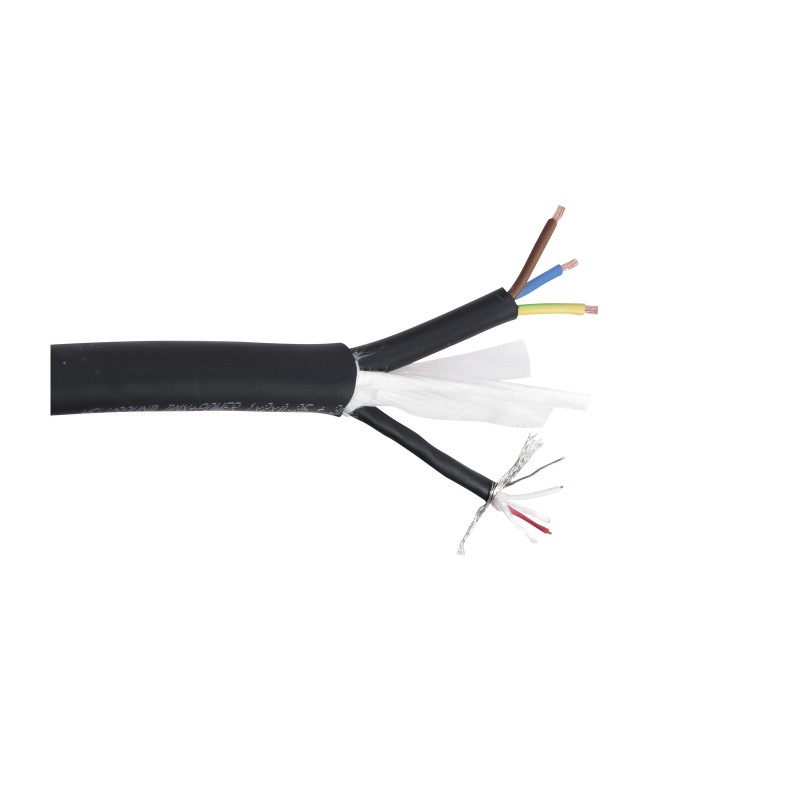

HELUKABEL Combi Cable 1x2x0.25+3G1.5 100m

Codice: 30306320        codice Ean: 4026397508512        MARCA:  HELUKABEL

The HELUSOUND® DMX+POWER hybrid cable combines a shielded light control wire and the power supply wire. The DMX-cable, which is shielded by a tin-coated copper braiding is perfectly suited for the control of light systems and mixing boards (110 Ohm characteristic intrinsic impedance). It highlights a soft PVC insulation and it is qualified for the use at indoor and outdoor installations. The DMX cable can also be used for the transmission of audio signals such as a microphone wire or as a power supply wire for active loudspeaker systems.

High quality combi cable

• Parallel control for lighting boards through one cable via power line and DMX signal
• Very flexible and enormously tread-resistant
• Very good pairwise shielding of the DMX lines
• Control line for DMX lighting consoles (wave impedance of 110 ohms)
• Analogue + digital audio multipair with power supply

Cable construction:	2 x 0.22 mm² DMX wire; 3 x 1.5 mm² Power cable
Cable length:	100 m
Dimension:	Length: 100 m
Weight:	21.10 kg

Hardware - Strom - Kabel
Peso: 21.15
