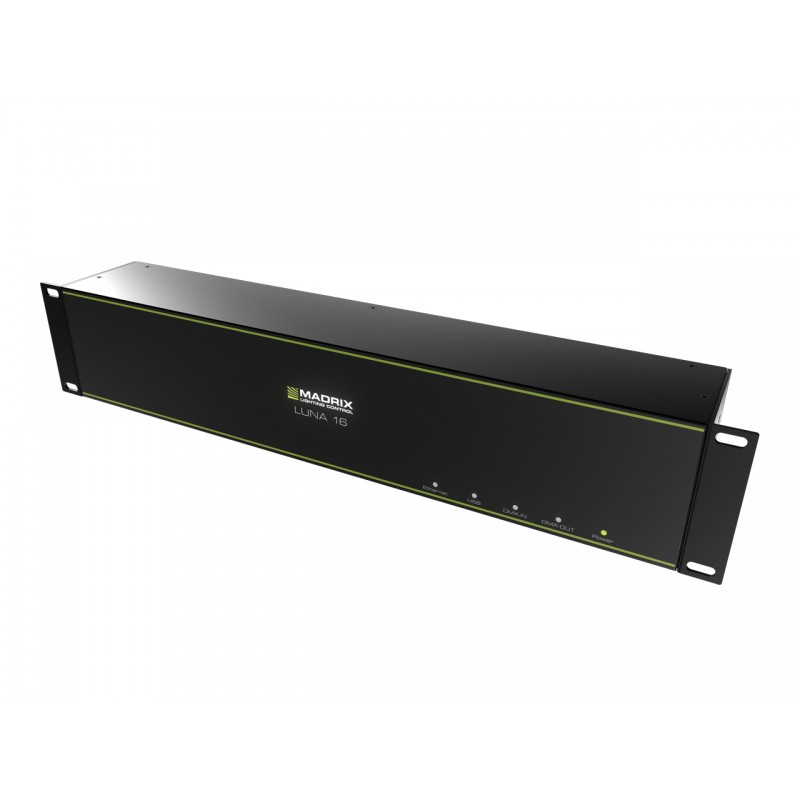

MADRIX LUNA 16 Port USB / Art-Net Node

Artnet and USB interface to issue 16 DMX universes

• MADRIX LUNA 16 is an easy-to-use and reliable network node with unique features to control lighting fixtures
• Supports Art-Net as well as Streaming ACN (sACN)
• Can also be used as MADRIX USB interface
• The device distributes DMX512 data over long or short distances using Ethernet network or USB
• 16 XLR ports (5-pin, female) distribute 16 DMX universes per unit (8192 DMX channels)
• 1 XLR port (5-pin, male) is always available for DMX input (512 DMX channels)
• Works great with the MADRIX Software with quick and easy installation (sold separately)
• Sync Mode: MADRIX Software and hardware allow you to synchronize Art-Net data for all output ports and even across multiple devices to get an optimal image on the LEDs without visual interruptions
• Complies with the official specifications of Art-Net and Streaming ACN and can be used as regular network unit with other 3rd-party consoles, controllers, or software solutions
• Fanless, noiseless, low-energy design
• 19" metal case (2U) including brackets for rack mounting
• Ready within seconds after startup
• Automatic HTP merging for two Ethernet sources
• 5 status LEDs, which can be turned off
• Built-in web page for simple on-device configuration
• Recommended for any small or large installation
• Many LUNA 4/8/16 can be used together without problems
• Quick start guide / technical manual available in English and German
• User manuals also available at help.madrix.com
• Made in Germany
• More information available at www.madrix.com
• Can receive and process up to 512 DMX channels
• Can transmit up to 8162 DMX channels
• Controlling by ArtNet
• The device can be connected via USB to the PC; The device can be connected via RJ-45 Ethercon (F) mounting version to the PC
• (19") 48.3 cm rack installation 2 U
• Made in Germany
