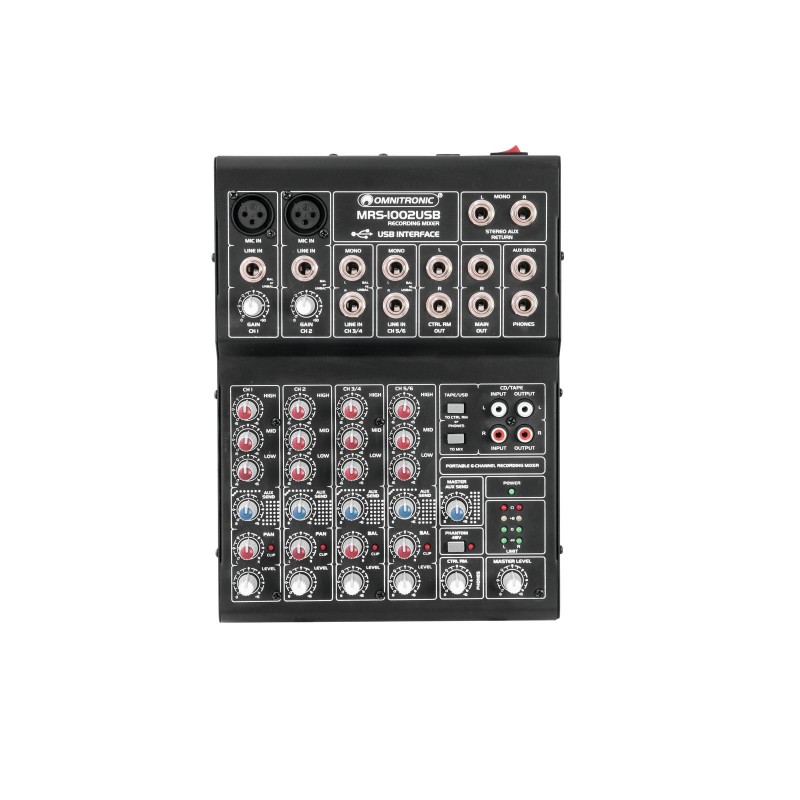

OMNITRONIC MRS-1002USB Recording Mixer
Audio - Audiomixer - Studio-Mixer
Peso: 2.23
Codice: 10040271 codice Ean: 4026397513882 MARCA: OMNITRONIC
Compact audio mixer with 10 inputs and USB interface
- Built-in USB audio interface allows recordings and playback of digital audio files with a computer (PC and Mac)
- Full duplex USB port: simultaneous recording and playback possible
- 2 mono input channels with gain control, 3-way EQ and pan control
- 4 stereo input channels with 3-way EQ and balance control
- Adjustable stereo aux send output; aux return input
- Tape input and output
- Separate main mix and control room outputs
- Adjustable headphones output
- +48 V phantom power, can be switched centrally
- Precise 4-digit stereo LED level display
- Operation via supplied power unit
- Rugged, compact metal housing
- Desktop console housing
| Power supply: | 230 V AC, 50 Hz 17 V AC |
| Power consumption: | 27.00 W |
| Protection class: | Class III |
| Frequency range: | 20 - 20000 Hz |
| S/N ratio: | >74 dB |
| THD: | <0.05 % at 1 kHz |
| Power connection: | Mains input Coaxial power connector (M) Power supply cord with AC adapter (provided) |
| Control elements: | Phantom power switch |
| Status LED: | Power, clip, master level meter, phantom power |
| Connections: | Input: 2 x Microphone via 3-pin XLR Input: 2 x Microphone via 3.5 mm jack (mono) mounting version Input: 4 x line via 6.3 mm jack socket (mono) mounting version Input: 1 x stereo via stereo RCA Input: 1 x line via USB B (W) mounting version Input: 2 x AUX returns via 6.3 mm jack socket (mono) mounting version Output: 2 x master via 6.3 mm jack socket (mono) mounting version Output: 2 x control room via 6.3 mm jack socket (mono) mounting version Output: 1 x AUX sends via 6.3 mm jack socket (stereo) mounting version Output: 1 x headphones via 6.3 mm jack socket (stereo) mounting version Output: 1 x line via stereo RCA |
| Chanals: | Input chanel: 2 x mono via XLR or jack, channel control via Rotary knob, 3-band tone control EQ 80Hz/2,5kHz/12kHz, 1 Send/AUX, gain control, panoramacontol, Input chanel: 2 x stereo via Plug 6,3mm/3,5mm (Jack), channel control via Rotary knob, 3-band tone control EQ 80Hz/2,5kHz/12kHz, 1 Send/AUX, balancecontrol, Input chanel: 1 x stereo via RCA, Routing master bus switch, Master output: 1 x stereo via Plug 6,3mm/3,5mm (Jack), channel control via Rotary knob Headphones output: 1 x stereo via Plug 6,3mm/3,5mm (Jack), channel control via Rotary knob |
| USB port: | USB 2.0, Typ B |
| Housing design: | Desktop console housing |
| Dimension: | Width: 18.9 cm Depth: 26 cm Height: 7.2 cm |
| Weight: | 2.02 kg |
