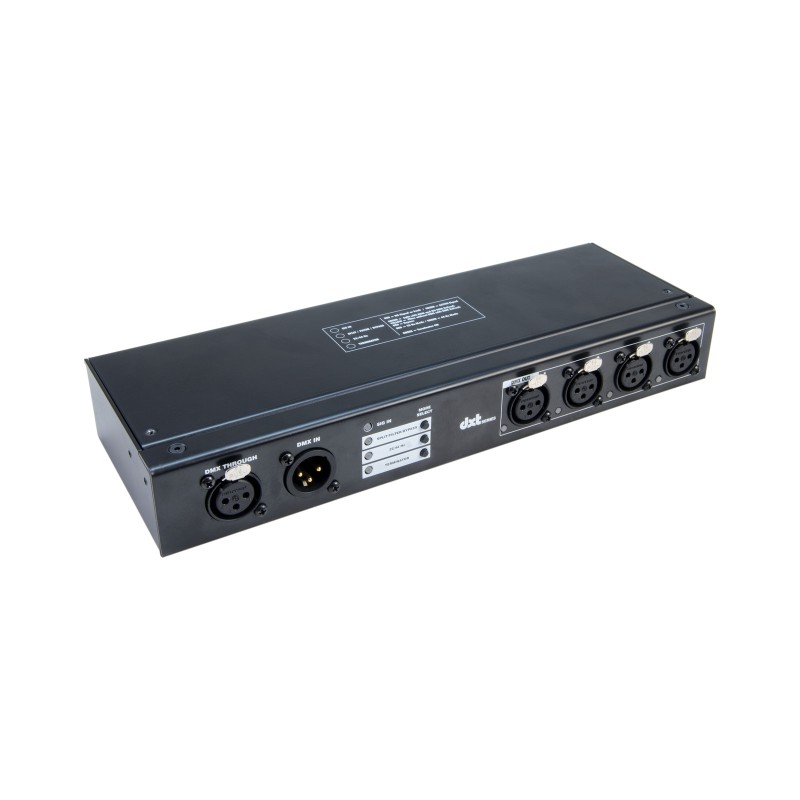

EUROLITE DXT-SP 1in/4out PRO DMX RDM Splitter

Codice: 70064867 codice Ean: 4026397572469 MARCA: EUROLITE

RDM-capable DMX splitter, 1 in/4 out with signal boost

DMX splitter for splitting one DMX input signal to 4 DMX outputs
Connections: 2 x DMX input (parallel), 2 x DMX feed-through output (parallel), 4 x DMX output
Input and feed-through output are duplicated on the front and rear panel and connected in parallel
Supports RDM for bidirectional communication over the DMX line
Switchable filter mode allows all RDM data to be filtered out in order to prevent problems when using fixtures intolerant of RDM
Bypass function to process signals from older devices similar to DMX signals
Output frequency adjustable: 22/44 Hz
DMX fail mode selectable: hold, blackout, null
Switchable termination resistor
Input and outputs XLR 3-pin (Neutrik)
Outputs galvanically isolated
Each DMX output with independent driver and status indicator
Each DMX output can be connected to 32 DMX devices
Powered via included PSU
Rack installation via optional rack mounting kit (item 70064872)
DMX fail mode (hold, blackout, null)
DMX feed-through for up to 32 further DMX devices
RDM For bidirectional communication over the DMX line
RDM switchable to prevent problems when using fixtures without RDM
Made in Germany

Power supply:	100-240 V AC, 50/60 Hz 12 V DC 1 A
Power consumption:	3.6 W
DMX input:	2 x 3-pin XLR (M) mounting version
DMX output:	4 x 3-pin XLR (F) mounting version Separate (galvanic) with independent driver and status indicator 2 x 3-pin XLR (F) mounting version Bypass
Power connection:	Mains input 4-pin screw plug connector (m) mounting version Power supply cord with AC adapter (provided)
DMX features:	DMX fail mode (hold, blackout, null) DMX feed-through for up to 32 further DMX devices RDM For bidirectional communication over the DMX line RDM switchable to prevent problems when using fixtures without RDM
Use of brands:	Built with NEUTRIK connector
Dimension:	Width: 27.5 cm Depth: 10 cm Height: 4.1 cm
Weight:	1.21 kg
