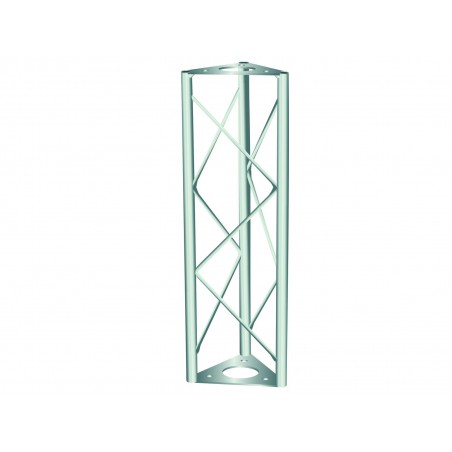

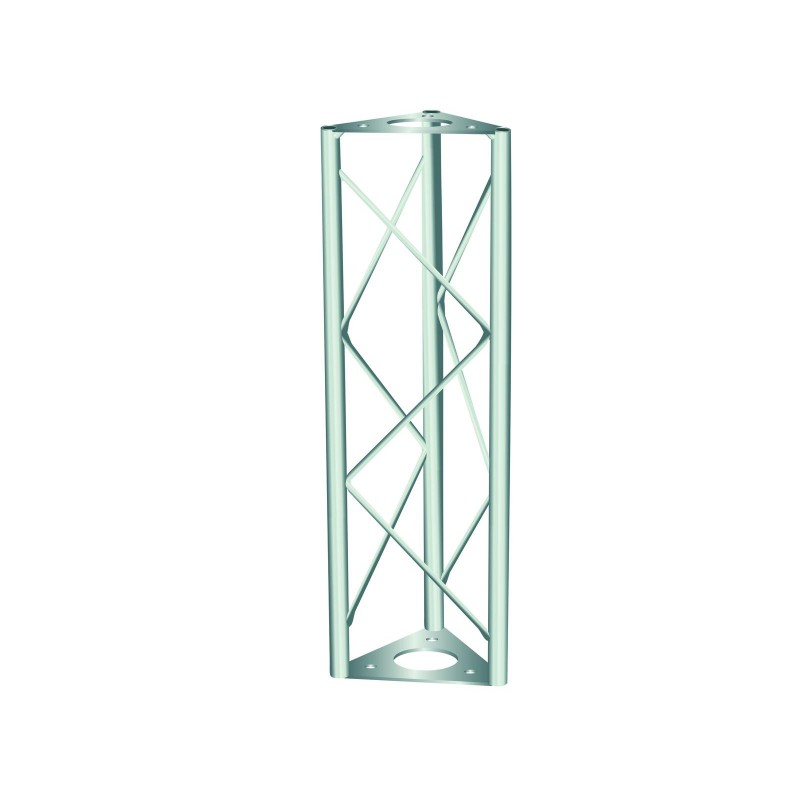

DECOTRUSS ST-470 Truss silver

Codice: 60112017        codice Ean: 4026397186871        MARCA:  DECOTRUSS

DECOTRUSS 3-point truss systemDECOTRUSS is a 3-point truss system made of steel. The individual elements are connected via three M10 bolts and nuts.The advantage of the bolt connection system is that these bolts and nuts are easily available in case of loosing fasteners.The three main chords are made of 15 mm steel tube with 1.5 mm wall thickness and can only be used for decorative purposes. With its minimal outer dimensions of 150 mm, DECOTRUSS is ideal for creating individual design-elements in decorative areas of private homes, fair booths, shops, discotheques and theatres.This truss system is a mere decoration system convincing by its compact dimensions, low storage requirements and easy transportation.Please note: this truss system must never be combined with other systems!

The decorative trussing

• Easy installation
• The DECOTRUSS elements are connected with each other by three M8 screws
• Phantastic creations through a variety of crossbeams and corners
• DECOTRUSS can be suitable for shop installers, fair installers etc in order to create individual design-elements
• DECOTRUSS is available in silver
• DECOTRUSS constructions are meant as design-elements
• Please respect the regulations in respect to trussing constructions
• Trusspipe: 15 mm

Trusspipe:	15 mm x 1.5 mm
Color:	Alu colored, powder-coated
Strut diameter x thickness:	5 mm solid matter
Dimension:	Length: 470 mm Width: 150 mm Height: 130 mm
Weight:	1.20 kg

Hardware - Traversen - 3-Punkt-Systeme
Peso: 1.3
