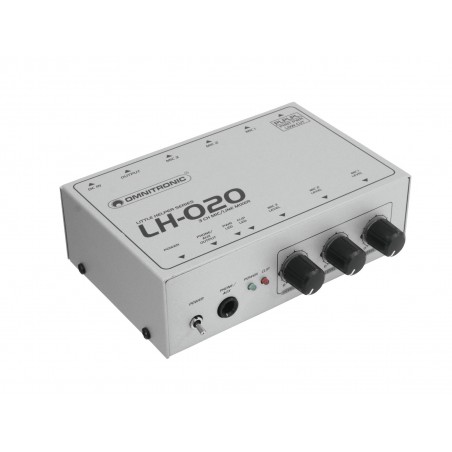

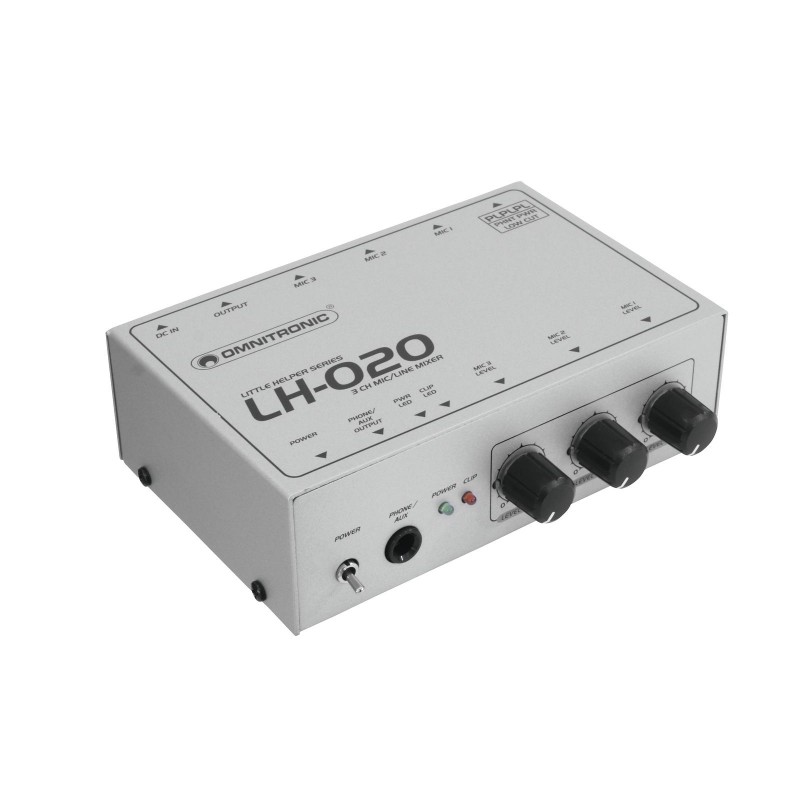

OMNITRONIC LH-020 3-Channel Mic Mixer

Codice: 10355020 codice Ean: 4026397169041 MARCA: OMNITRONIC

3-channel microphone mixer

Compact mixer to mix 3 microphones to 1 line output, with individual level control
3 microphone input channels with separate level controls, switchable phantom power and low cut
1 master output with line level, clip LED
1 headphones output (6.3 mm jack)
On/off switch and power LED
Inputs and output via balanced XLR connectors
Operation via supplied power unit

Power supply:	12 V DC 150 mA
Protection class:	Class III
Frequency range:	25 - 16000 Hz
S/N ratio:	>75 dB
THD:	<0.02 % at 1 kHz
Phantom power:	18 V DC
Power connection:	Mains input Coaxial power connector (M) Power supply cord with AC adapter (provided)
Impedance:	Input 600 Ohm 600 Ohm
Gain:	60 dB
Status LED:	Power, clip
Connections:	Input: 3 x Microphone via 3-pin XLR Output: 1 x Microphone via 3-pin XLR Output: 1 x headphones via 6.3 mm jack socket (stereo) mounting version
Input channels:	3 x mono via XLR, channel control via Rotary knob
Switch:	Low cut switch,
Max. level:	Input: -14 dB Output: +14 dB
Dimension:	Width: 14.3 cm Depth: 9.3 cm Height: 4.5 cm
Weight:	0.76 kg
