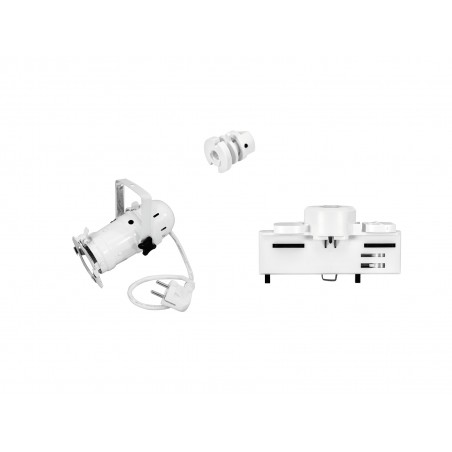

EUROLITE Set DIY PAR-16 Spot GU-10 + Multi adapter, 3 phases, white

DIY set for connection to 3-phase track systems

50850352 EUROLITE PAR-16 Spot GU-10 white

PAR-16 housing with GU-10 socket (with plug + cable)

• Mini-spot for GU-10 lamp
• Length approx. 15 cm
• Operating voltage 230 V - without transformer
• Allowed for a maximum lamp power of 75 W
• Color-filters attachable
• Via color filter frame
• Controlling by plug and play
• For PAR 16

30307100 EUTRAC Multi adapter, 3 phases, white

Multi adapter with data bus option

• For 3~ circuit track
• Prepared for data bus contacts (data bus contact with SELV safety chip, part no. 99-698-0)
• Screw termination, approved for 6 A inductive / 6 A ohmic up to 250 V
• With earth contact, circuit selection by turnkey switch and optional neutral position during operation
• Due to double mechanical locking perfect track fixing even when using heavy spotlights
• Maximum load up to 5 kg, or 10 kg when using retaining collar 99-066-x
• Suitable for various other 3~ circuit tracks
• Made in Germany

30307110 EUTRAC Retaining collar for multi adapter, white

Retaining collar

• For mounting bracket with outside thread M13 x 1, bracket holes Ø13.5 or 16.5 mm incl. strain relief
• Made in Germany
