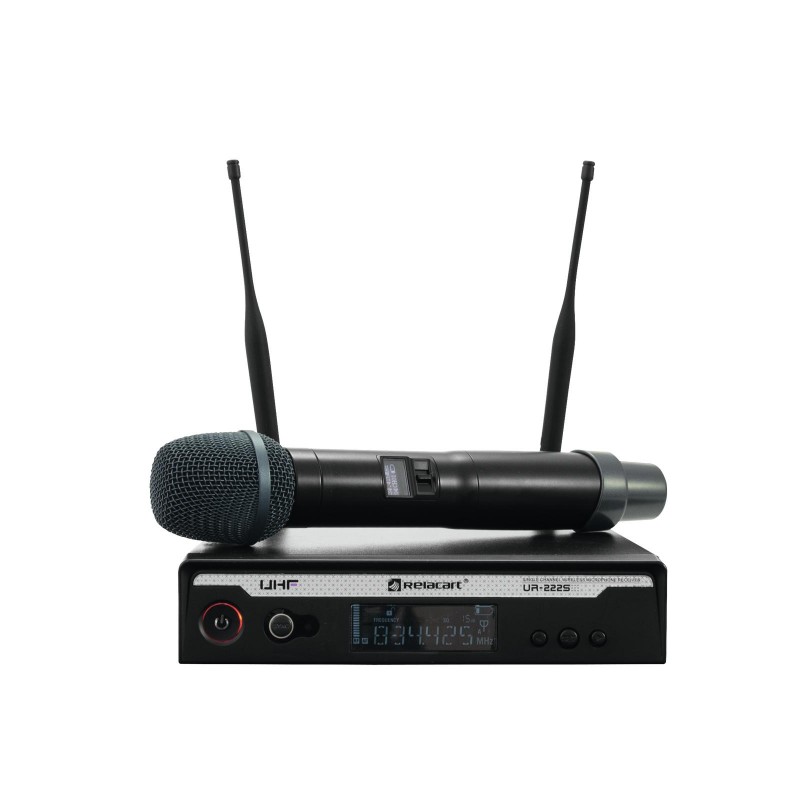

RELACART UR-222S 1-Channel UHF System

Codice: 13055207        codice Ean: 4026397525779        MARCA:  RELACART

The UR-222S is an affordable and reliable UHF system for everyday use. The device works with 90 channel presets in 10 groups. 9 channels can be operated in parallel. True diversity receiver technology, pilot tone and adjustable noise squelch guarantee reliable transmission. Setup is quick and easy using auto-scan and infrared sync.

True diversity wireless microphone system, 823-832 MHz + 863-865 MHz

• Multifrequency wireless receiver with high-quality true diversity reception
• Dynamic hand-held microphone with ergonomic aluminum alloy housing and OLED display, applicable for touring
• 2 license-free frequency ranges: 823-832 MHz (Duplex Gap) and 863-865 MHz
• 10 groups with 90 fixed frequencies within 11 MHz switching bandwidth
• Parallel operation of up to 9 systems is possible without any interference
• Pilot tone technology (PLL) for interference-free reception
• Automatic frequency scan (AFS) finds interface-free channels
• Easy and error-free synchronization between receiver and transmitter via infrared signal
• LCD for battery status of the microphone, antenna A/B, RF reception level, AF audio level and frequency
• XLR and 6.3 mm jack output
• 2 detachable BNC antennas allow for use with the R-14D antenna divider
• Delivery includes practical transport bag with jack cable and power unit
• Durable metal housing
• 483 mm rack installation possible with supplied mounting brackets
• Microphone directly compatible with Shure's SM58 capsule
• Matching pocket transmitter UT-222 optionally available
• License-free and approved in large parts of the EU (please check Duplex Gap on a country-by-country basis)

13055205 RELACART UR-222S 1-Channel UHF Receiver

Multifrequency wireless receiver with true diversity

• Multifrequency wireless receiver with high-quality true diversity reception
• 10 groups with 90 fixed frequencies within 11 MHz switching bandwidth
• Parallel operation of up to 9 systems is possible without any interference
• Pilot tone technology (PLL) for interference-free reception
• Automatic frequency scan (AFS) finds interface-free channels
• Infrared interface for easy and error-free channel transfer to transmitters via infrared signal
• LCD for battery status of the transmitter, antenna A/B, RF reception level, AF audio level and frequency
• XLR and 6.3 mm jack output
• 2 detachable BNC antennas allow for use with the R-14D antenna divider
• Matching transmitters optionally available: hand-held microphone (UH-222S, UH-222D ), pocket transmitter (UT-222)
• Delivery includes practical transport bag with jack cable and power unit
• License-free and approved in large parts of the EU (please check Duplex Gap on a country-by-country basis)
• Use a operating range up to 80m
• Desktop console housing 1 U; (19") 48.3 cm rack installation (provided)

13055206 RELACART UH-222D Microphone

Hand-held microphone with PLL multifrequency transmitter

• Dynamic hand-held microphone with UHF pilot tone technology (PLL)
• Ergonomic aluminum alloy housing, applicable for touring
• Matches receivers UR-222S and UR-260D
• 10 groups with 90 fixed frequencies within 11 MHz switching bandwidth
• Infrared interface for easy and error-free synchronization with the receiver via infrared signal
• OLED display for battery status and frequency
• RF output power Hi/Low adjustable
• Gain level Hi/Mid/Low adjustable
• Directly compatible with Shure's SM58 capsule
• License-free and approved in large parts of the EU (please check Duplex Gap on a country-by-country basis)
• Polar pattern: Cardioid
• Use a operating range up to 80m

Type:	Wireless set
Weight:	2.24 kg
13055205 RELACART UR-222S 1-Channel UHF Receiver
Type:	Receiver
Power supply:	100-240 V AC, 50/60 Hz 12 V DC 1 A
Power consumption:	2.6 W
Number of channels:	1
Frequency range:	45 - 18000 Hz
S/N ratio:	>105 dB
Power connection:	Mains input Coaxial power connector (M) Power supply cord with AC adapter (provided)
Connections:	2 x antenna via BNC (F) 8 V Output: 1 x Microphone via 3-pin XLR Output: 1 x Microphone via 6.3 mm plug (unbal.)
Frequency band:	UHF 863 - 865 MHz; UHF 823 - 832 MHz
Frequency selection:	90 Switchable frequencys In 10 groups with up to 10 preset frequencies each
Modulation:	FM
Frequency stability:	± 0.0005 %
Range:	80 m
Switching bandwidth:	11 MHz
Switch:	On/off switch
Diversity:	Switching diversity
Material:	Metal
Housing design:	Desktop console housing 1 U (19") 48.3 cm rack installation (provided)
Dimension:	Width: 20 cm Depth: 26 cm Height: 4.6 cm
Weight:	1.95 kg
13055206 RELACART UH-222D Microphone
Type:	Transmitter
Power supply:	3 V DC
Capsule type:	Dynamic
Polar pattern:	Cardioid
Battery:	2 x Mignon (AA) (not included)
Frequency range:	45 - 18000 Hz
Control elements:	Gain-switch (high-mid-low); Transmitter power switch (high-low)
Frequency band:	UHF 863 - 865 MHz; UHF 823 - 832 MHz
Frequency selection:	90 Switchable frequencys In 10 groups with up to 10 preset frequencies each
Modulation:	FM
RF power output:	10 mW
Range:	80 m
Switching bandwidth:	11 MHz
Switch:	On/off/mute switch
Material:	Aluminum
Dimension:	Length: 26 cm Diameter: Ø 5.4 cm
Weight:	0.28 kg
