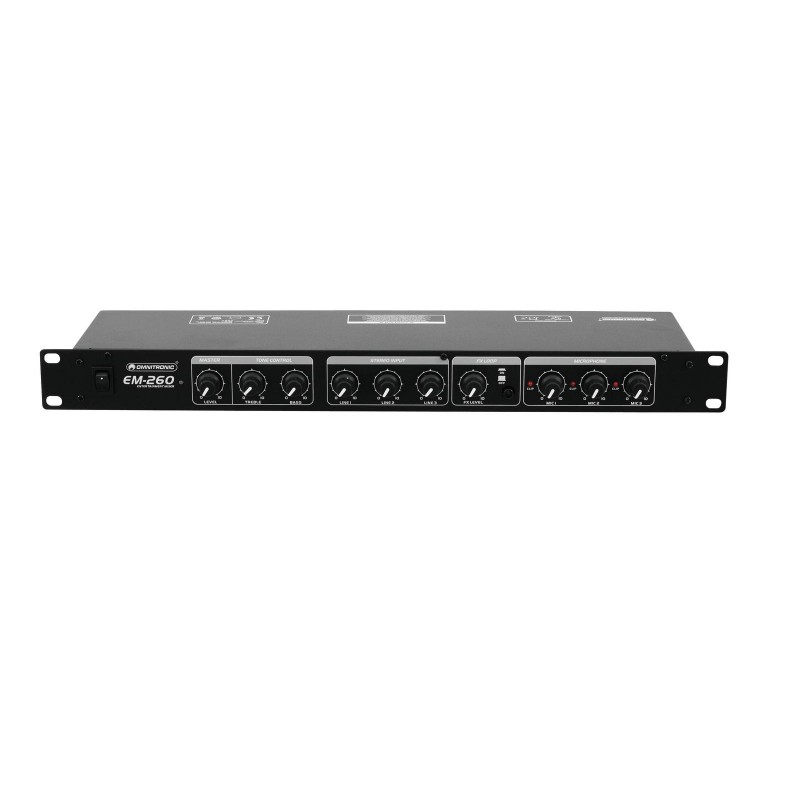

OMNITRONIC EM-260B Entertainment Mixer

Codice: 10007076        codice Ean: 4026397357981        MARCA:  OMNITRONIC

Mixer for microphone and line sourcesThe perfect tool for your karaoke party: With the Omnitronic EM-260B Entertainment Mixer you mix 3 microphone and 3 line sources to one stereo output - in an very simple way. Installing the mixer is easy as well, thanks to the small dimensions you are flexible.Design clearly arrangedEven if you are a beginner, you can operate the mixer very easily. As it is clearly structured, you won't get lost. Each channel has a clip LED. The microphone inputs show optional 12 V phantom power. The unit is perfectly suited for bar, restaurant or club house installation.Effects an recording sessionsWith the FX send/return (with FX level control) you can cut in effects to support your voice. Record singing sessions by using the record output.

6-channel microphone/line mixer

• 6 inputs (3 x mic/line and 3 x line) for mixing to 1 stereo output
• Ideal e.g. for karaoke when microphones need to mixed with CDs
• 3 mono input channels mic/line (XLR, bal.), switchable
• 3 stereo line input channels (RCA)
• Clip LED for each microphone channel
• Each microphone input with optional 12 V phantom power
• FX send/return with FX level control
• Stereo master out (6.3 mm jack) with 2-band equalizer (highs and lows) and level control
• Stereo record output (RCA)
• (19") 48.3 cm rack installation 1 U

Power supply:	115/230 V AC, 50/60 Hz
Power consumption:	35 W
Protection class:	Class I
Frequency range:	20 - 20000 Hz
Phantom power:	12 V DC
Power connection:	Mains input IEC connector (M) mounting version Power supply cord with safety plug (provided)
Housing color:	Black
Control elements:	Phantom power switch, power switch, FX send/returne control
Status LED:	Power, clip
Connections:	Input: 3 x mic/line via 3-pin XLR Input: 3 x line via stereo RCA Input: 2 x FX via 6.3 mm jack socket (mono) mounting version Output: 1 x rec. via stereo RCA Output: 2 x master via 6.3 mm jack socket (mono) mounting version Output: 1 x FX via 6.3 mm jack socket (stereo) mounting version
Chanals:	Input chanel: 3 x stereo via RCA, channel control via Rotary knob, 2-band tone control EQ 100Hz/10kHz Microphon chanal: 3 x mono with Mic-line switch via XLR, channel control via Rotary knob Master output: 1 x stereo via Plug 6,3mm/3,5mm (Jack), channel control via Rotary knob
Max. level:	Input: Microphone +14 dB Input: line +24 dB
Material:	Metal
Color:	Silver
Housing design:	(19") 48.3 cm rack installation 1 U
Dimension:	Width: 48.3 cm Depth: 12.3 cm Height: 4.45 cm
Weight:	2.20 kg
