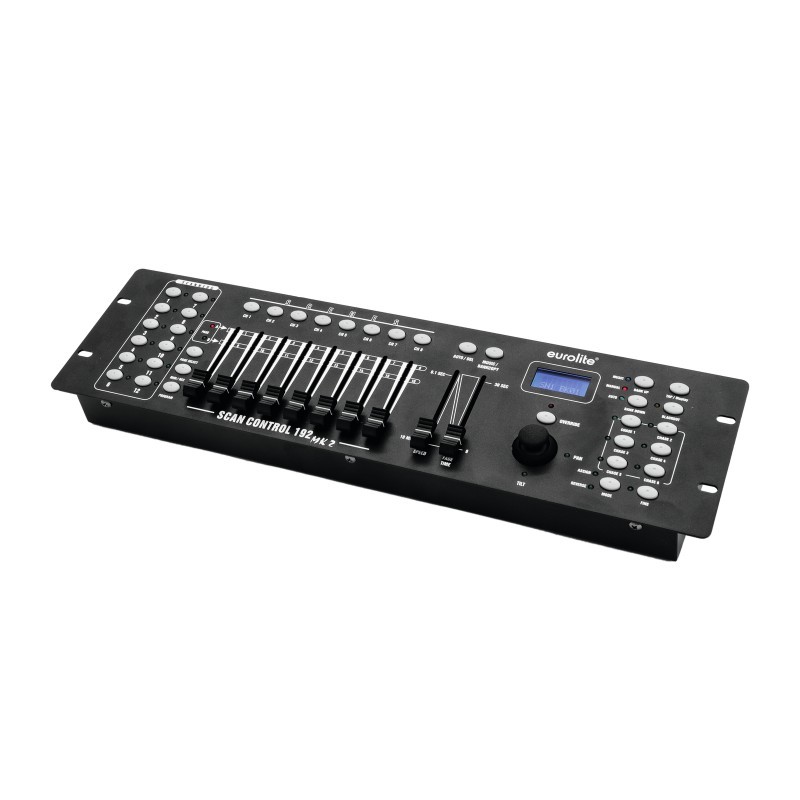

EUROLITE DMX Scan Control 192 MK2 Controller

Codice: 70064526 codice Ean: 4026397611052 MARCA: EUROLITE

Console for 12 lighting effect units with up to 16 DMX channels, joystick

DMX controller for 12 lighting effect units such as moving heads, scanners and LED spotlights
USB port for storing program data
Manual, time-controlled or sound-controlled chase running mode
Fade between scenes adjustable between 0-30 s
Copy function for scenes and banks
2 DMX fixture levels can be controlled
8 DMX channel faders
1 joystick for precise adjustment of pan/tilt
Button for fine tuning of pan/tilt
Blackout function
Backlit LCD (2 x 8 characters)
MIDI control for banks, chases and blackout
3-pin XLR connector
Firmware update via USB
Desktop console
Rack installation with 3 units
Programmable 6 chasers each with max. 240 scenes
Programmable 30 sequencens each with max. 8 scenes
Can transmit up to 192 DMX channels
Controlling by DMX; Sound to light via Microphone; Sound to light via RCA (f) mounting version; MIDI via 5-pin DIN (F) mounting version
(19") 48.3 cm rack installation 3 U

Power supply:	100-240 V AC, 50/60 Hz 9 V DC 800 mA
Power consumption:	10 W
IP classification:	IP20
Protection class:	Class III
Programs:	Programmable 6 Chasers Each with max. 240 Scenes Programmable 30 Sequences Each with max. 8 Scenes
DMX channels:	Output 192
DMX output:	1 x 3-pin XLR (F) mounting version
Power connection:	Mains input Coaxial power connector (M) Power supply cord with AC adapter (provided)
Control:	DMX; Sound to light via Microphone; Sound to light via RCA (f) mounting version; MIDI via 5-pin DIN (F) mounting version
Housing color:	Black
Available storage media:	USB devices (FAT 32)
USB port:	Typ A
Color:	Black
Mounting depth:	170 mm
Housing design:	(19") 48.3 cm rack installation 3 U
Dimension:	Width: 48.3 cm Depth: 13 cm Height: 8.9 cm
Weight:	2.30 kg
